Home >> Mercedes Benz >> 2006 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Brakes and Traction Control >> Brake Pedal Assy >> Service and Repair >> AR29.10-P-4597T Remove/Install Brake Pedal

AR29.10-P-4597T Remove/Install Brake Pedal

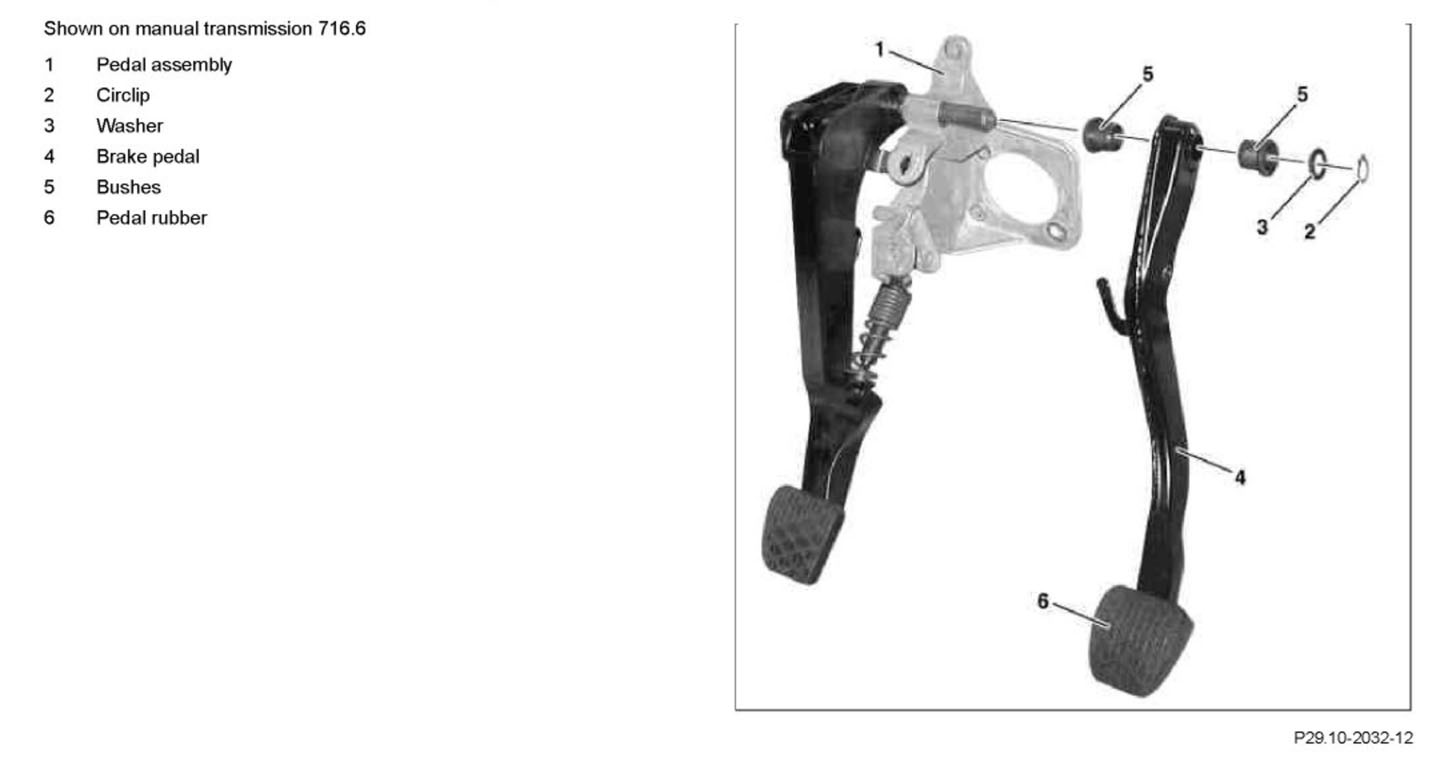

AR29.10-P-4597T Remove/install brake pedal
- Transmission 716.6, 722.6


Workshop equipment/MB testers:

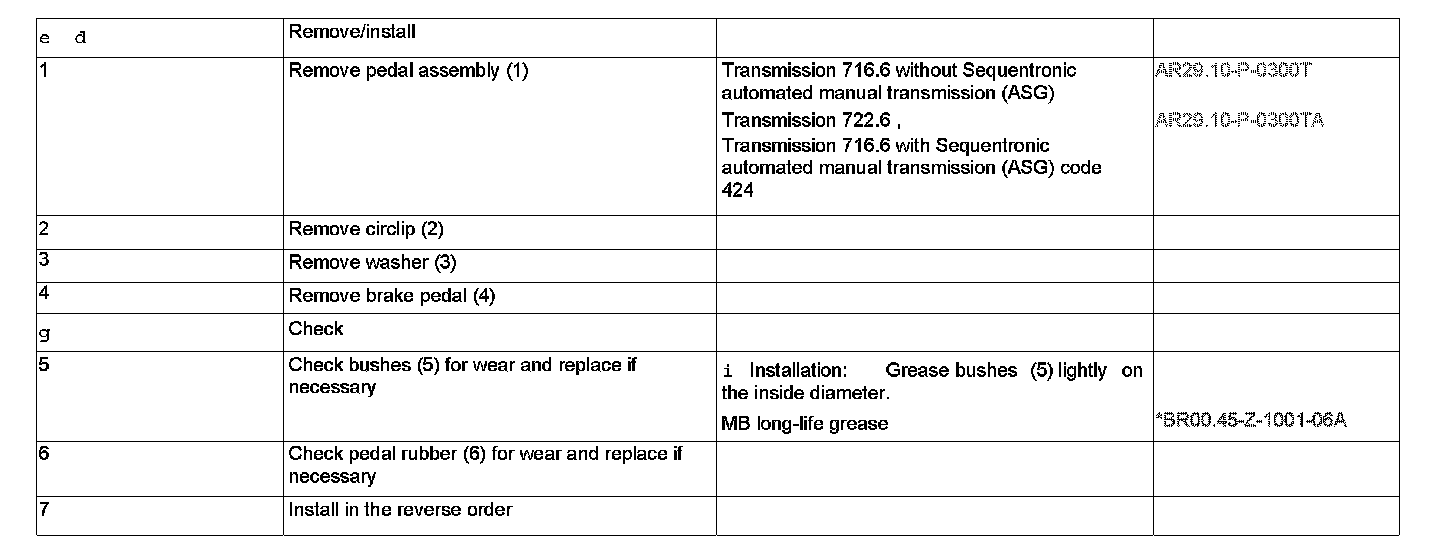

Steps 1-7:

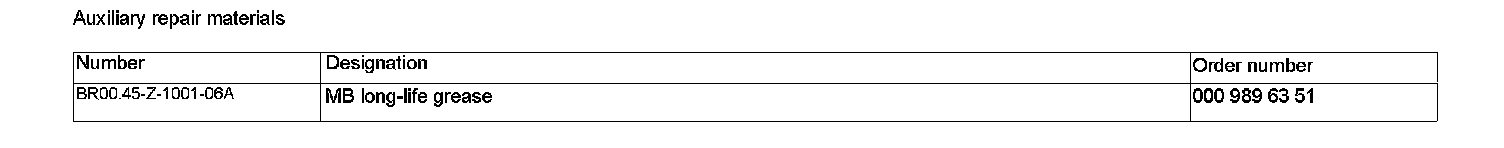

Auxiliary repair materials:
