Wiring Diagram Electronic Stability Program (ESP) PE42.45-U-2101DA

Wiring Diagram Electronic Stability Program (ESP) Control Module PE42.45-U-2101DA

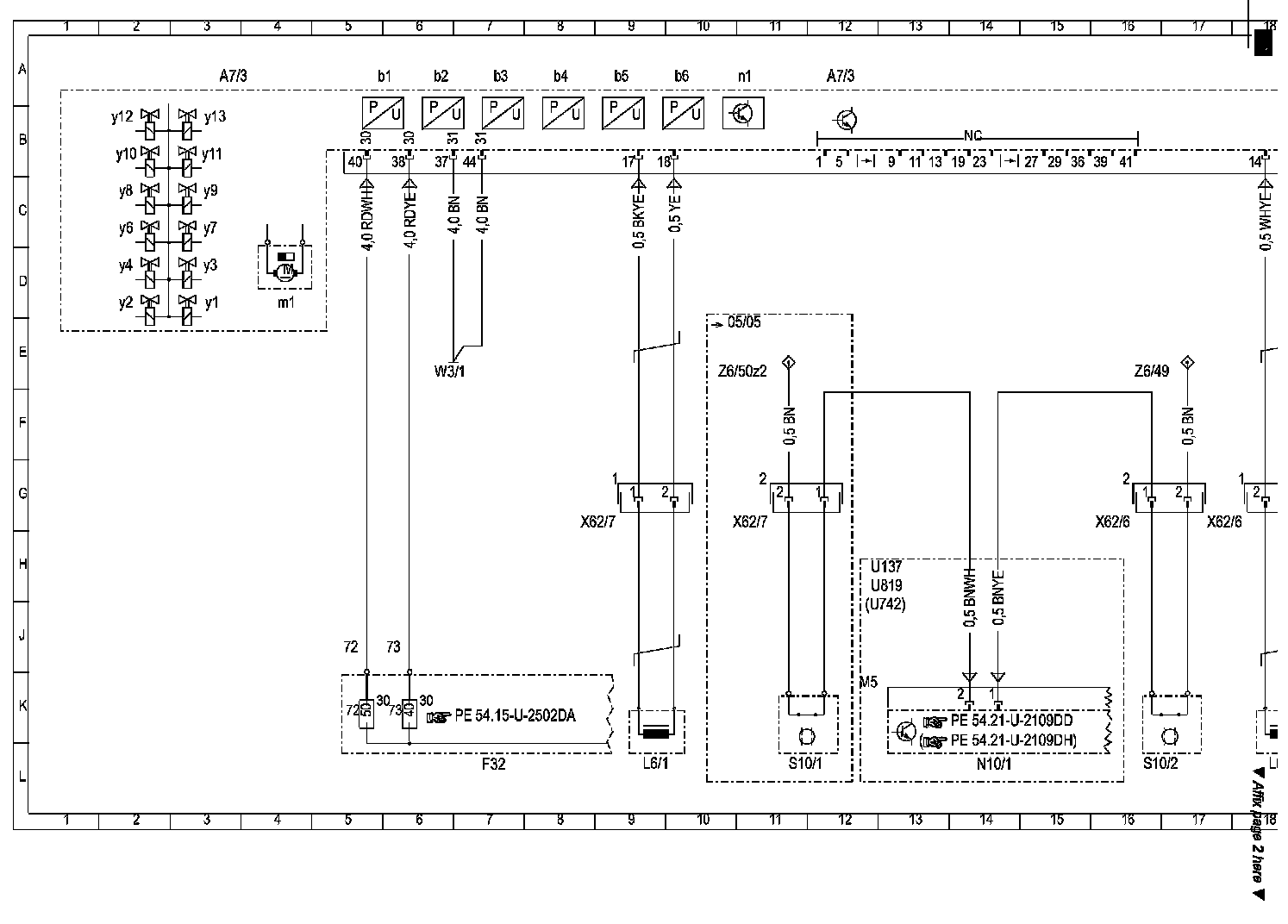

Wiring Diagram (Part 1):

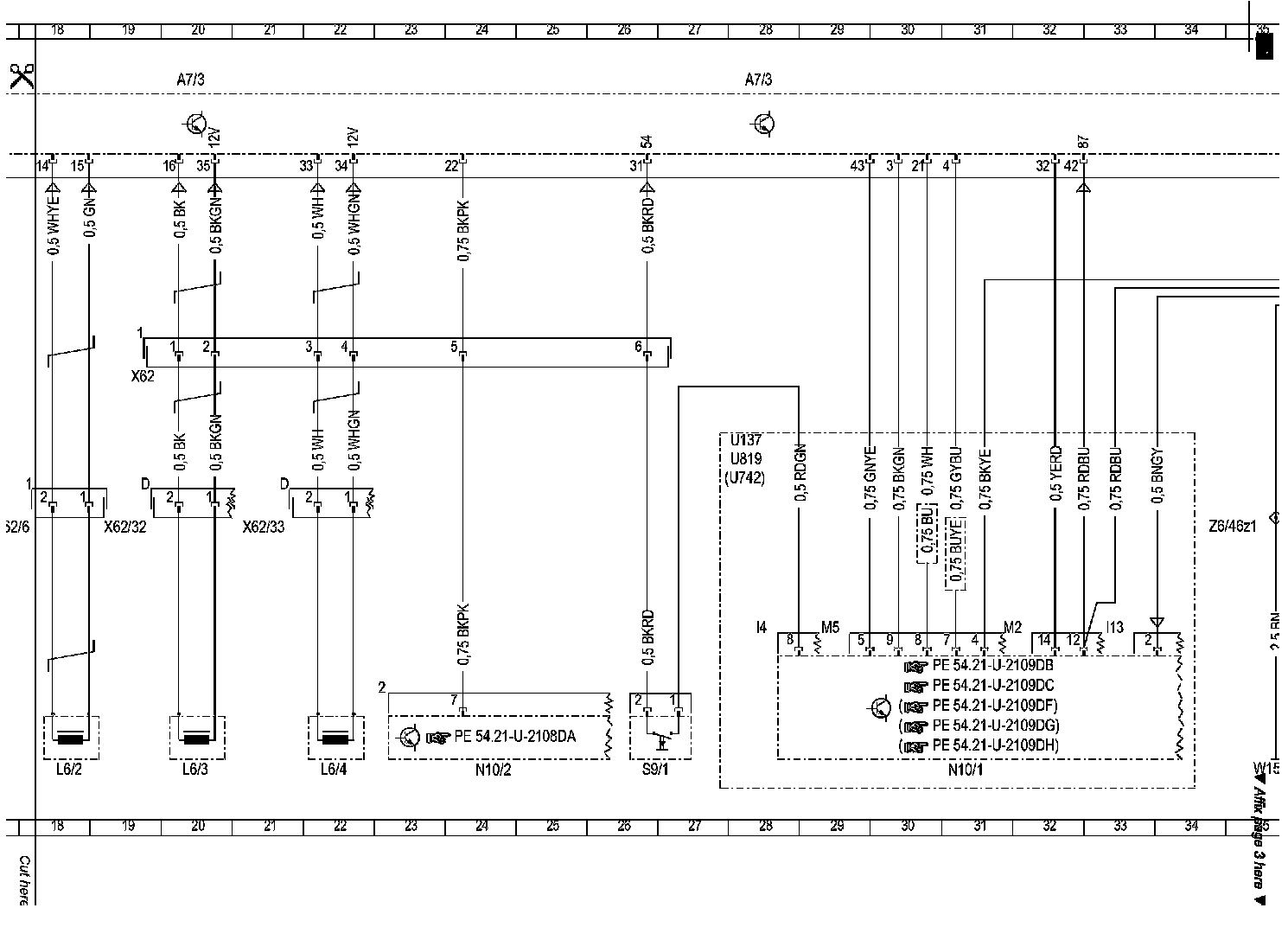

Wiring Diagram (Part 2):

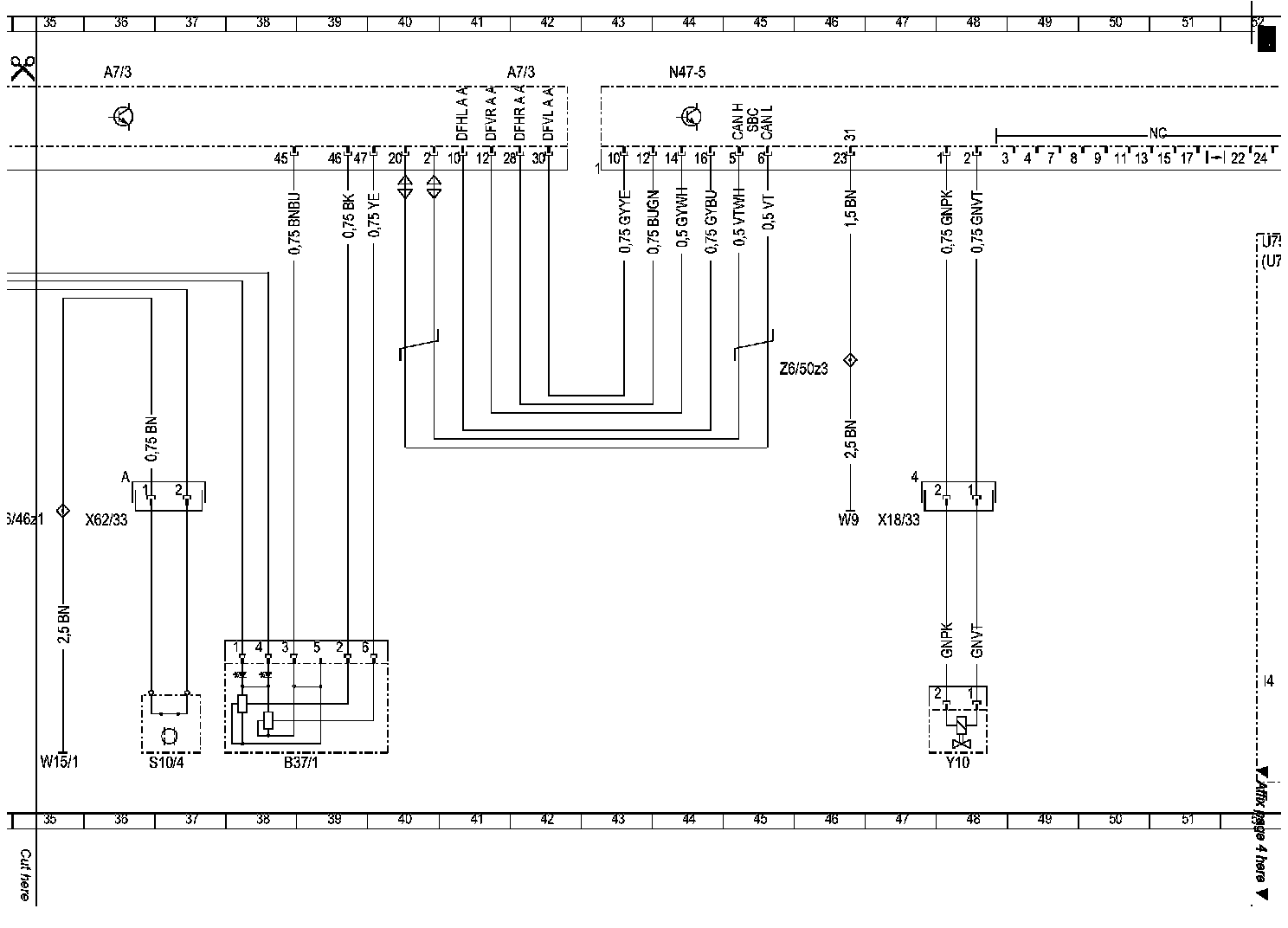

Wiring Diagram (Part 3):

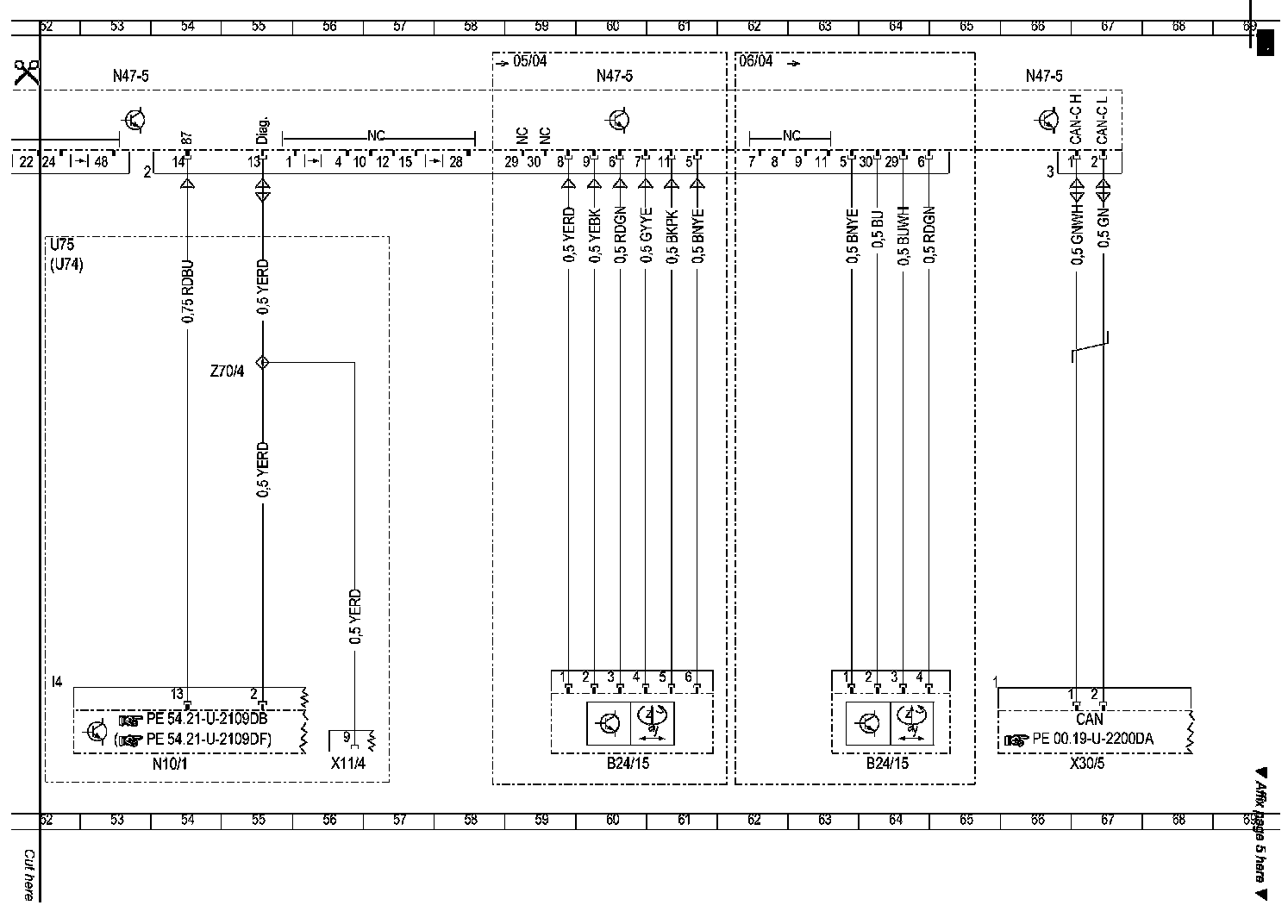

Wiring Diagram (Part 4):

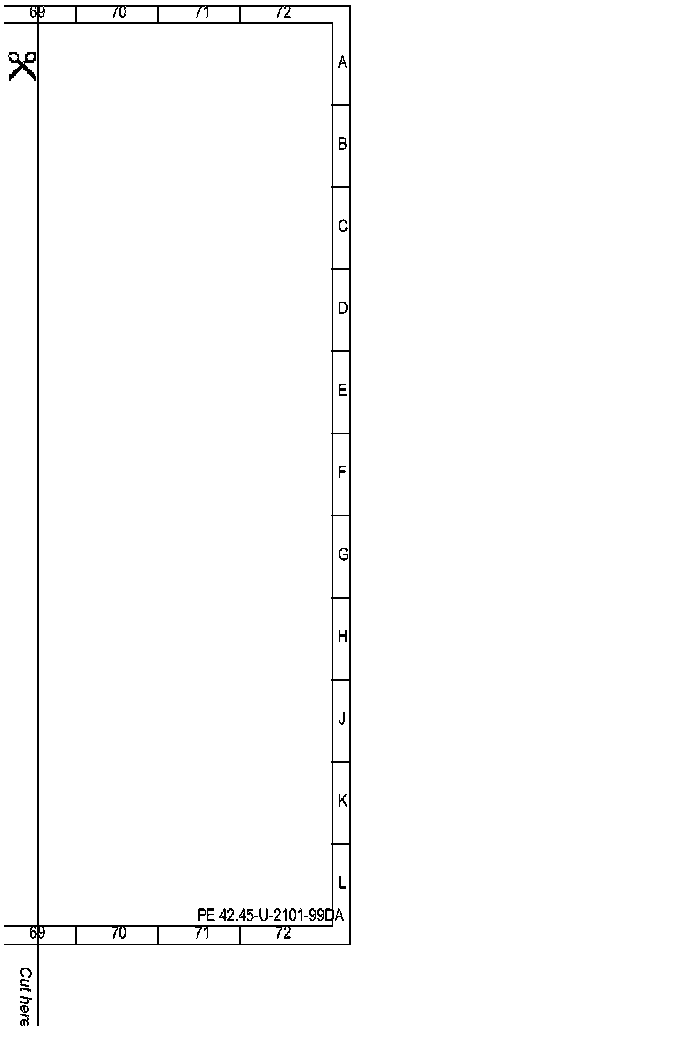

Wiring Diagram (Part 5):

Component Description/Coordinates, A7/3 To X11/4:

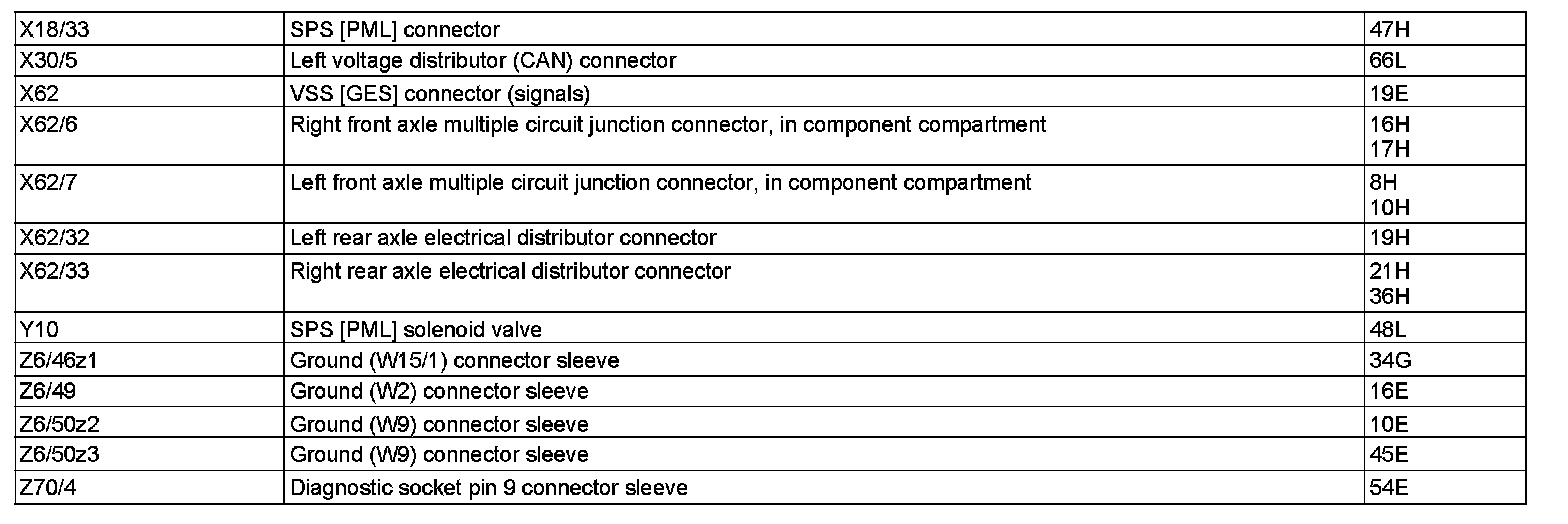

Component Description/Coordinates, X18/33 To Z70/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
