GF42.46-P-4200SL Operating Unit, Location/Task/Design/Function
GF42.46-P-4200SL Operating Unit, Location/Task/Design/Function

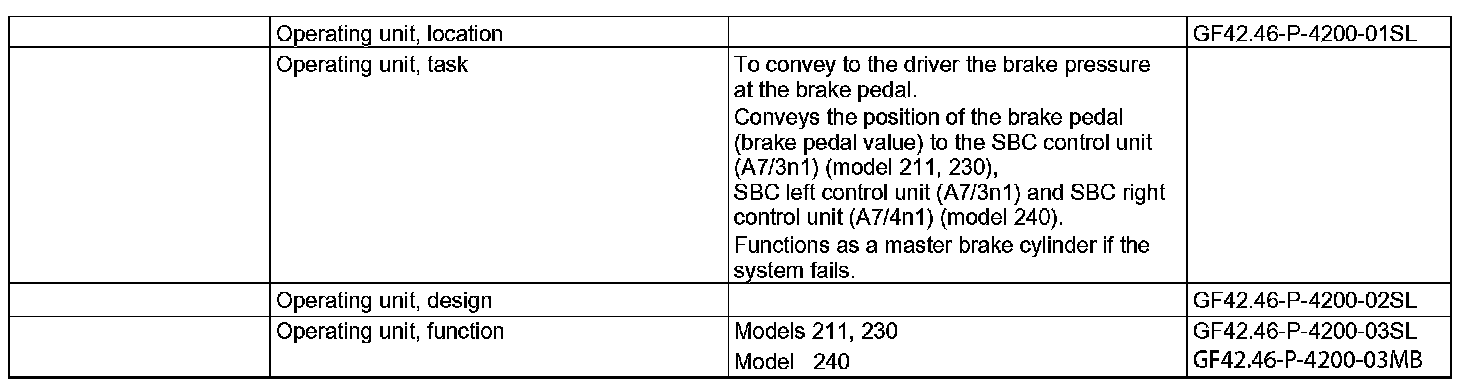

GF42.46-P-4200SL Operating unit, location/task/design/function

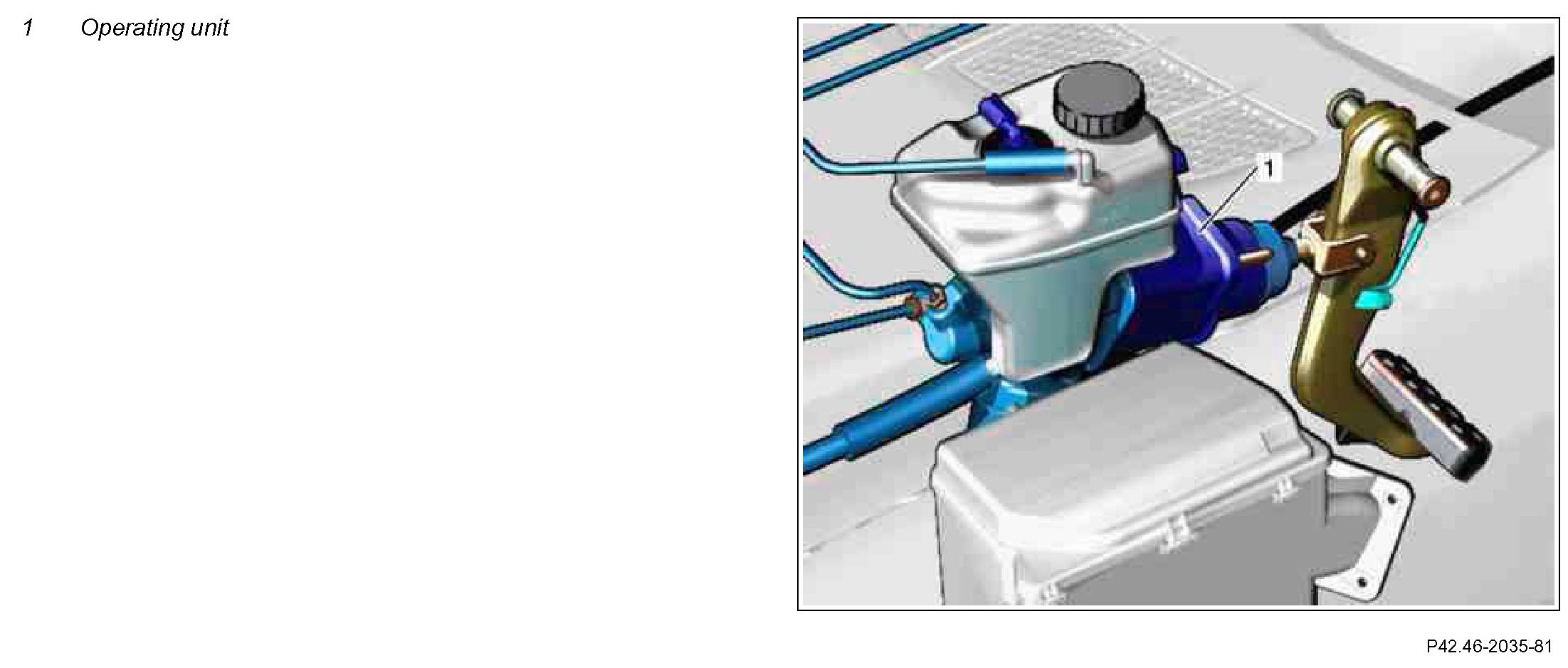

Component Identification:
