GF42.46-P-4200-02SL Operating Unit, Design

GF42.46-P-4200-02SL Operating unit, design

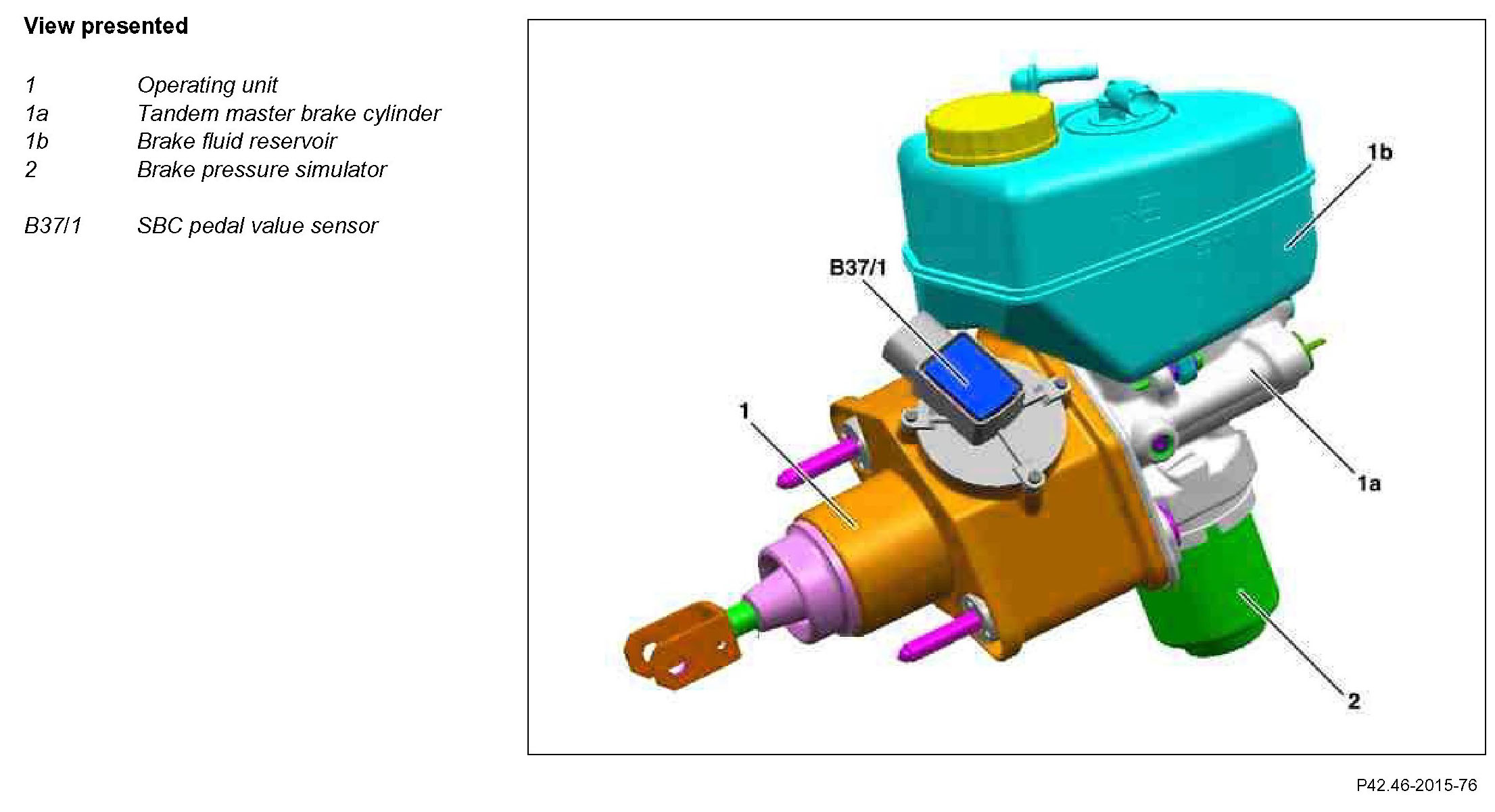

Component Identification:

Design
A tandem brake master cylinder (1a) with a brake fluid reservoir (1b) forms the basis of the operating unit (1).

The brake pressure simulator (2) and SBC pedal value sensor (B37/1) are mounted on the operating unit.

2 pedal value sensors are attached on model 240: SBC pedal value sensor 1 (B37/1) and SBC pedal value sensor 2 (B37/2).
