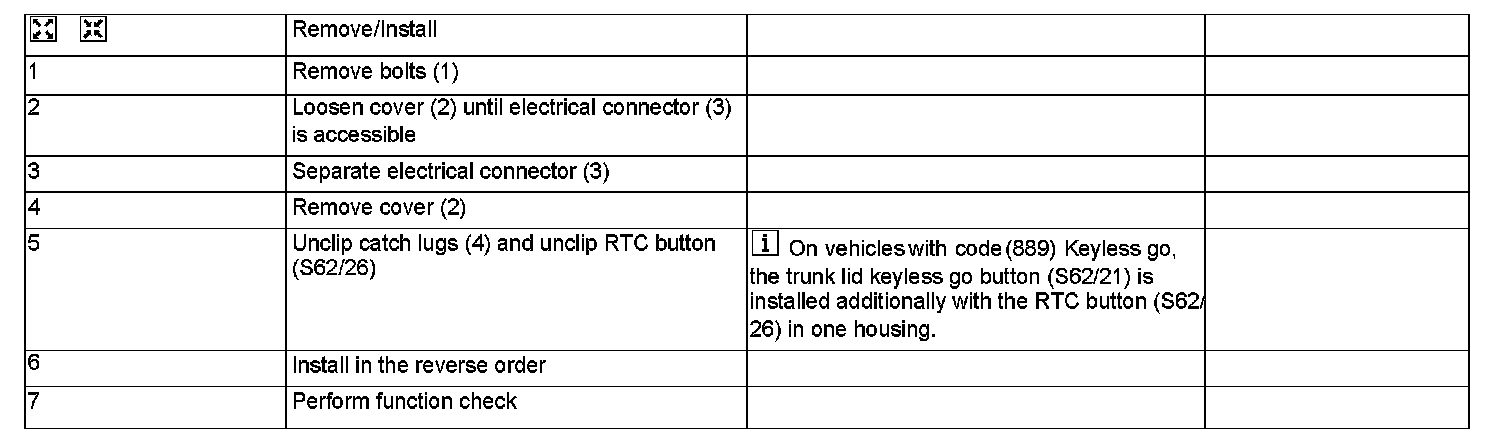

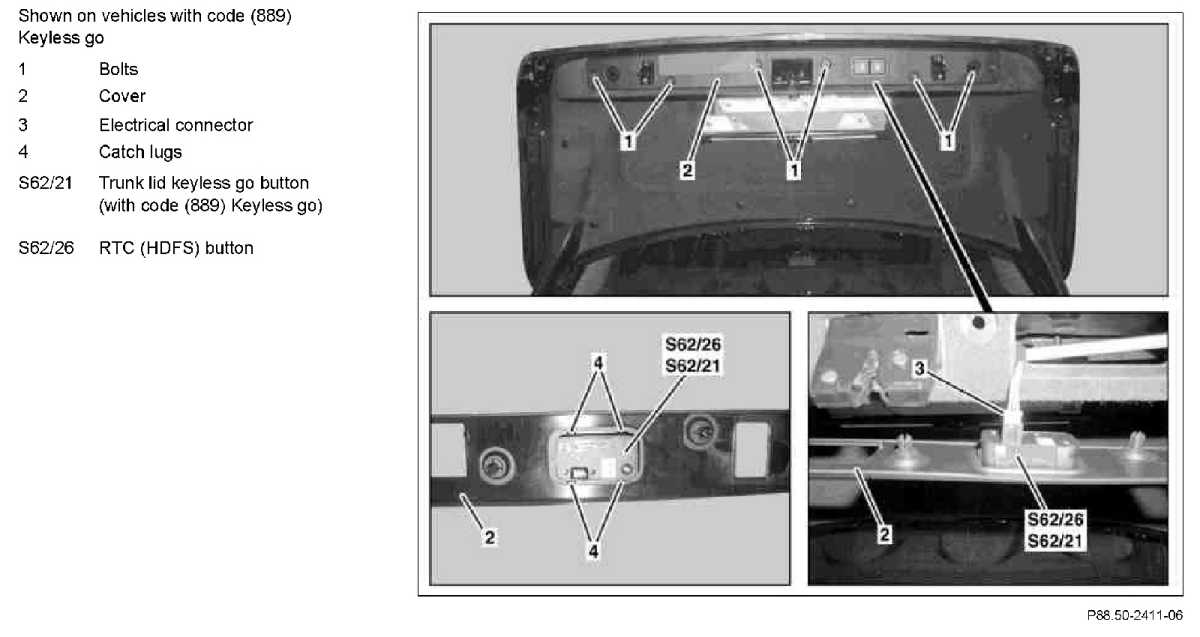

AR88.50-P-5075T Remove/Install Remote Trunk Closing Button



AR88.50-P-5075T Remove/Install Remote Trunk Closing Button
- with CODE (881b) Remote trunk locking (RTL)

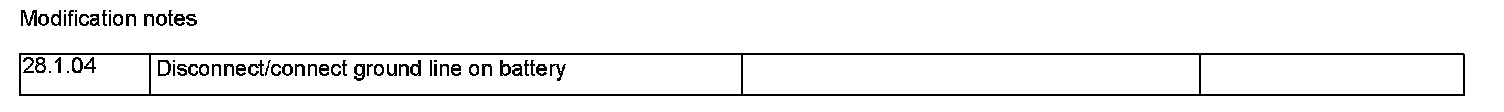

Modification Notes:
