AR91.10-P-1000T Remove/Install Front Seats

AR91.10-P-1000T Remove/Install Front Seats

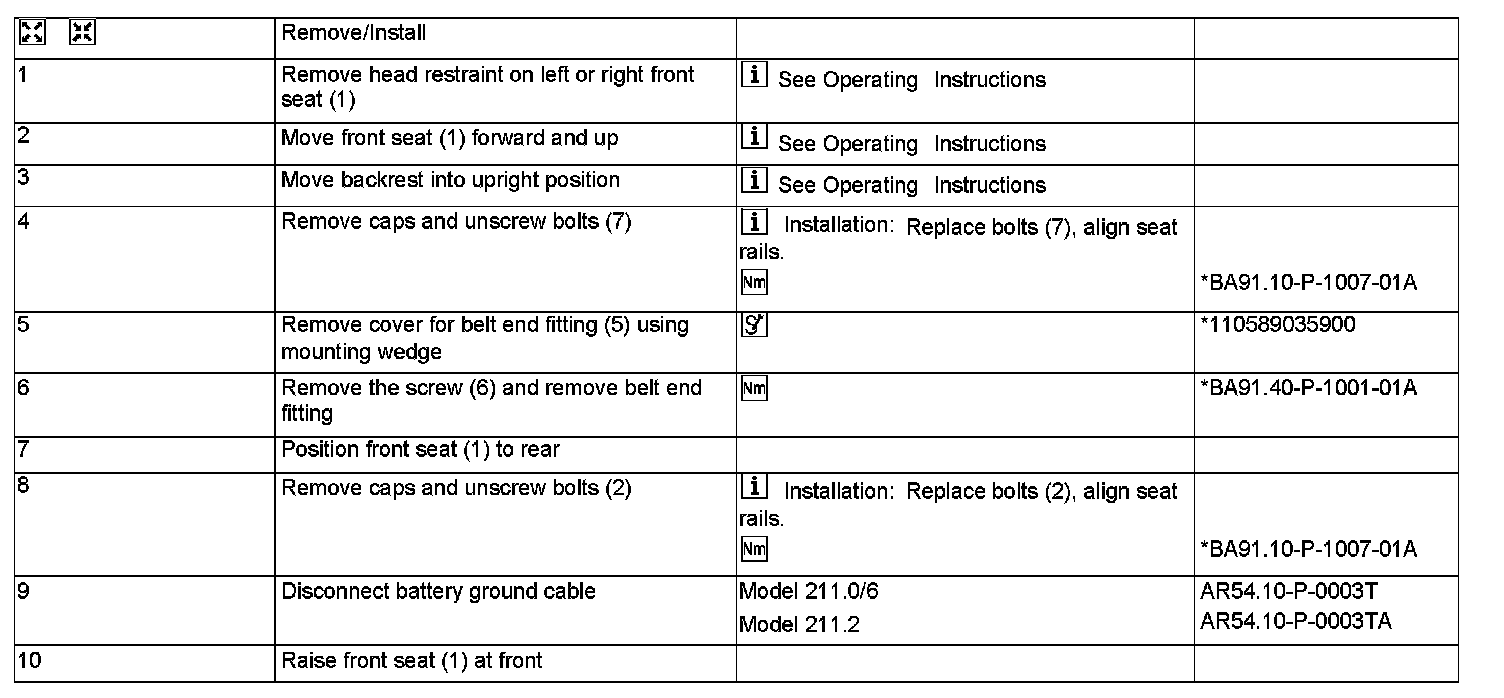

Part 1:

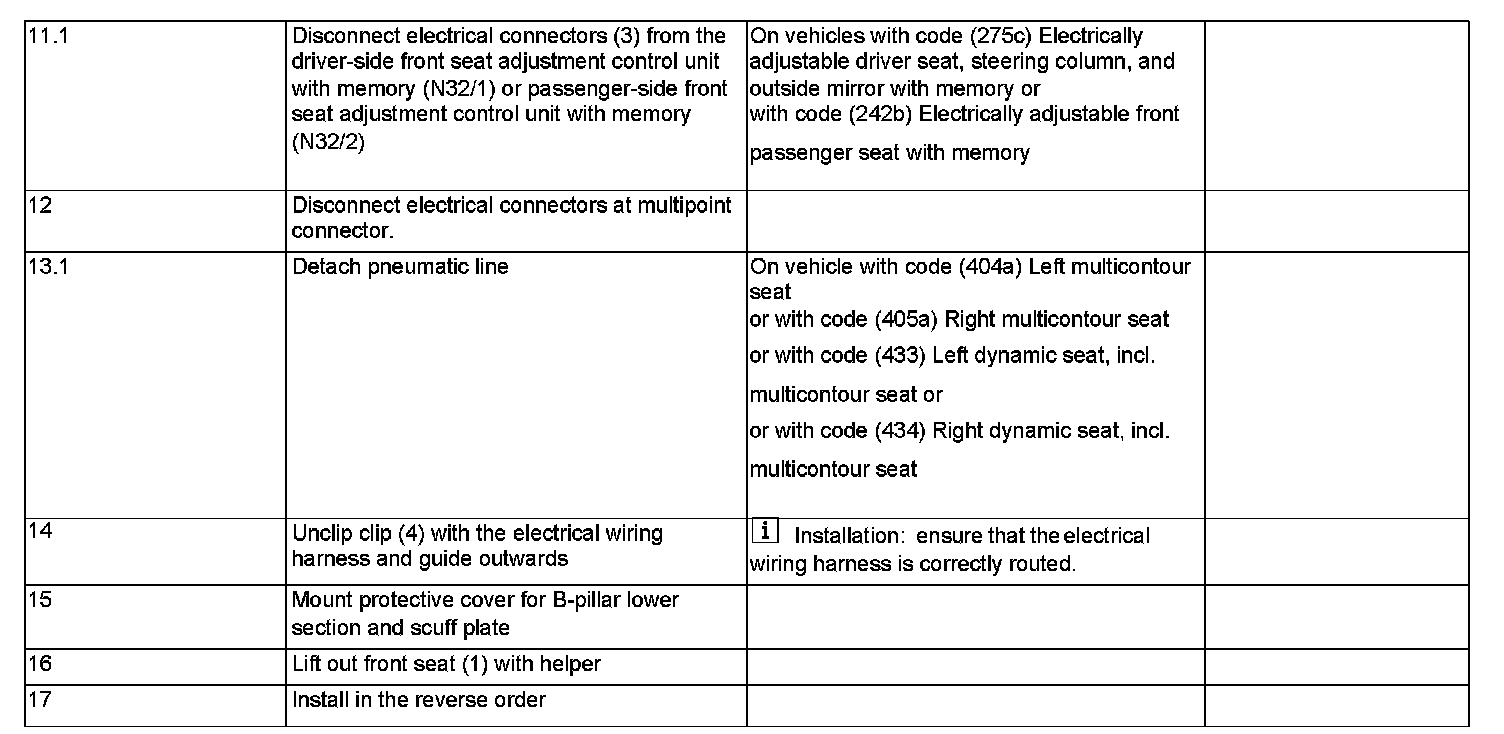

Part 2:

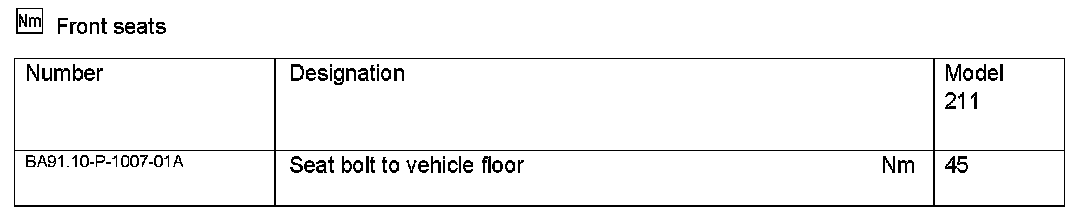

Front Seats:

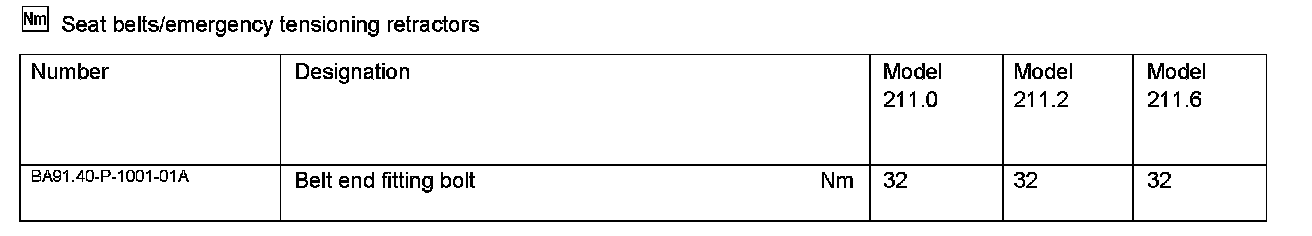

Seat Belts/Emergency Tensioning Retractors:
