AP77.20-P-7732PB Panoramic Sliding Roof - Clean and Lubricate Guide Mechanism

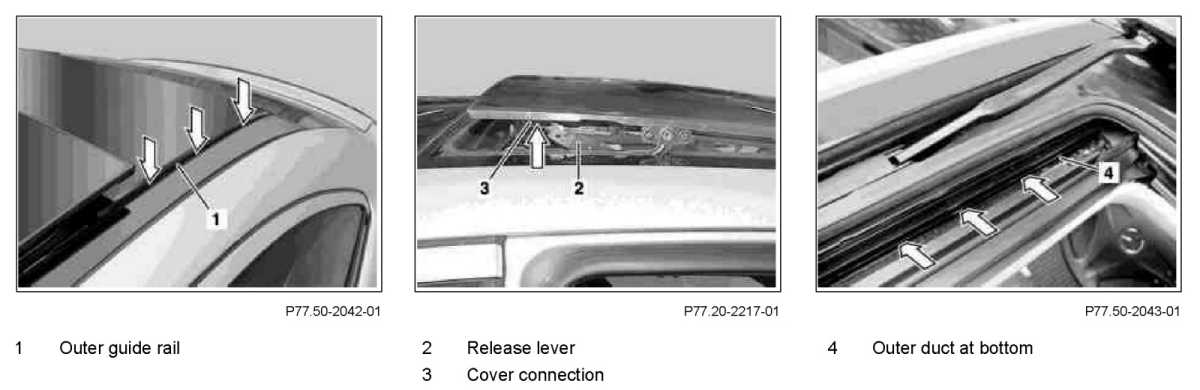

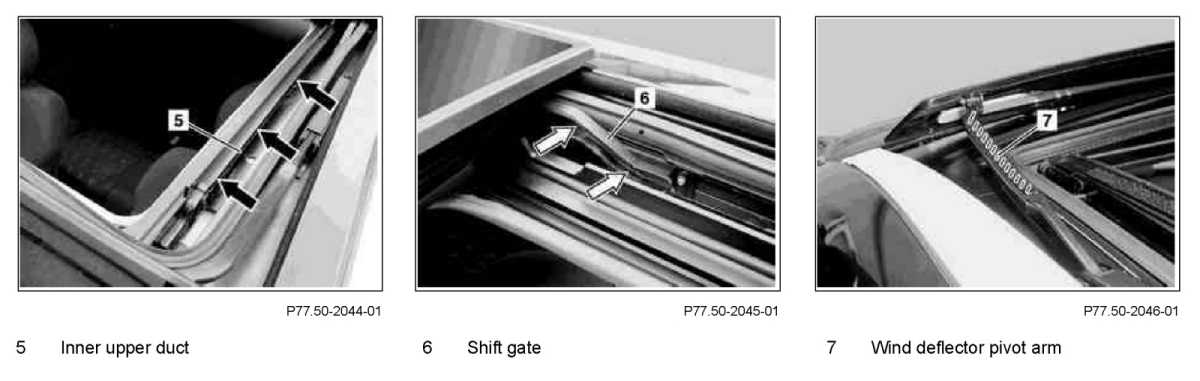

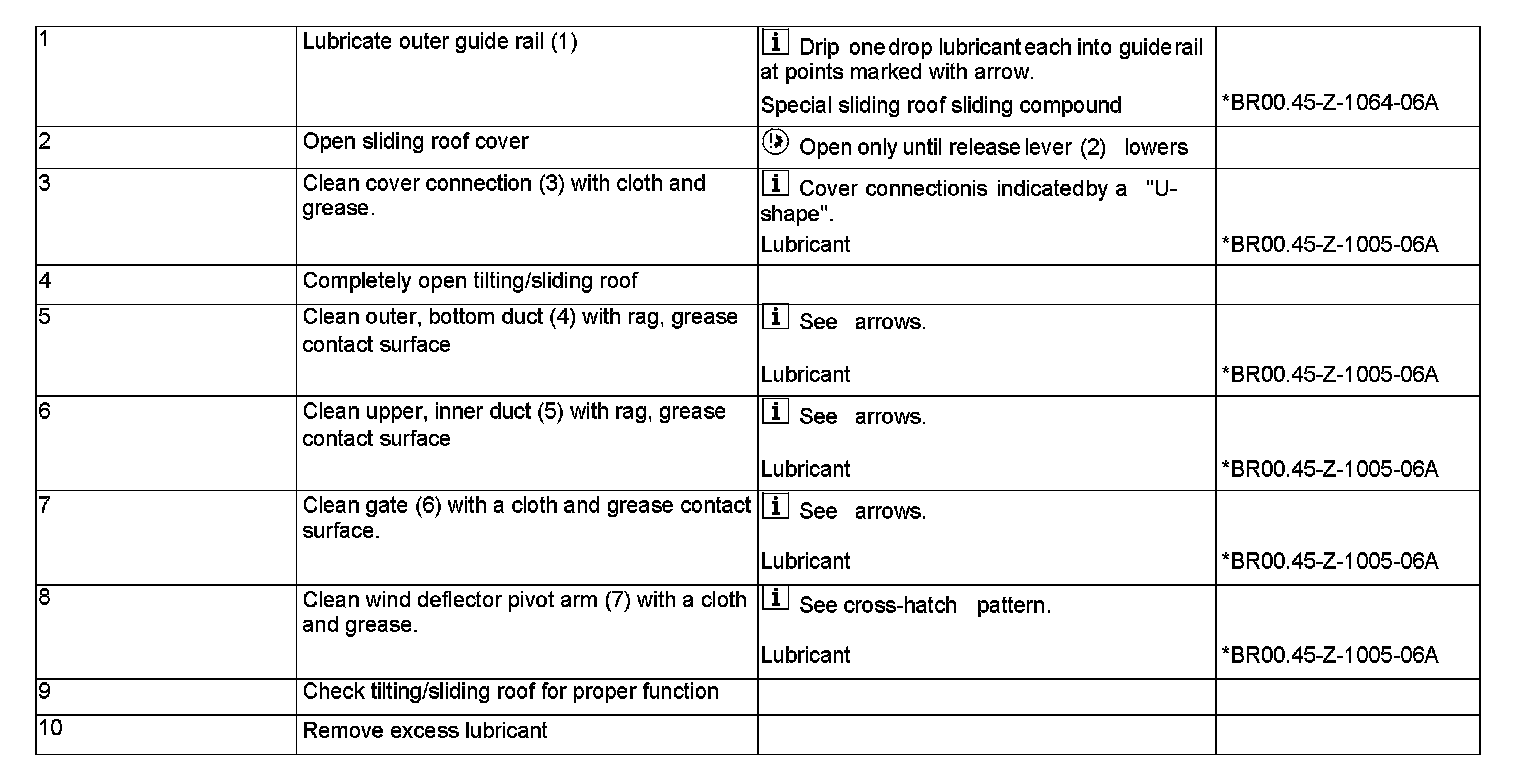

Panoramic Sliding Roof - Clean And Lubricate Guide Mechanism
- with CODE (413) Panoramic glass roof with top sliding roof
