AR88.70-P-9020R Remove/Install Mirror Glass

AR88.70-P-9020R Remove/Install Mirror Glass

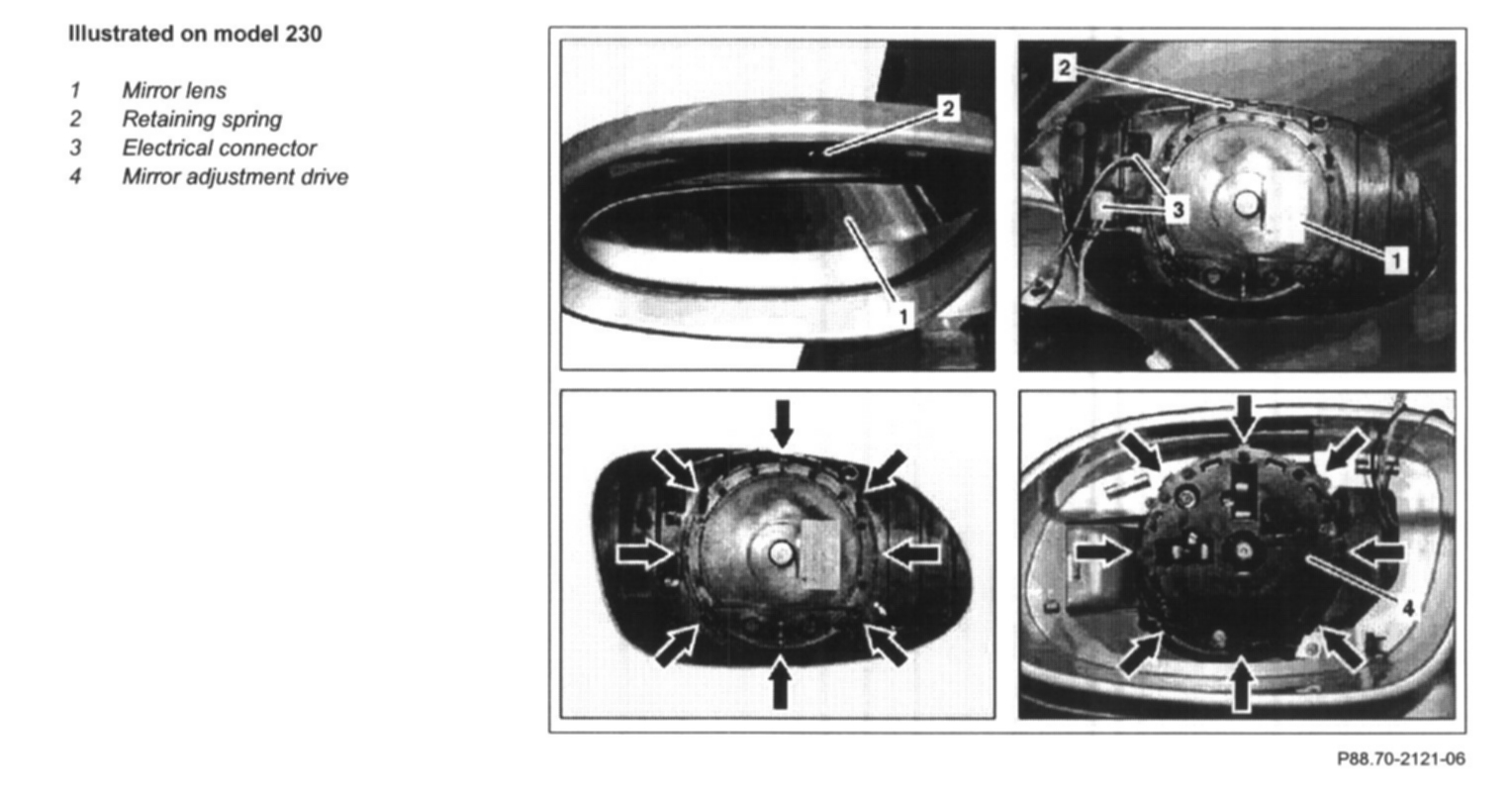

Illustrated On Model 230:

DANGER:
- Risk of injury. Skin, eye and respiratory system irritation may occur through contact or inhalation of substances contained in the mirror lens
- Wear protective gloves and safety glasses

1 Tilt mirror glass (1) out upward
2 Press retaining spring (2) upward with suitable screwdriver and press mirror glass (1) away from mirror adjustment drive (4) with assembly wedge

See "Special Tools" given below.

NOTE: Installation: Clip on mirror glass (1) from bottom to top at mirror adjustment drive (4) At the same time observe the retaining spring and the fixtures (arrows) at the mirror glass (1) and the mirror adjustment drive (4)

3 Disconnect ground line of battery
4 Disconnect electrical connectors (3)
5 Install in the reverse order

Special Tools

Assembly Wedge, P/N # 110 589 03 59 00:
