AR88.50-P-5060T Remove/Install Trunk Lid Handle With Lock Cylinder



AR88.50-P-5060T Remove/Install Trunk Lid Handle With Lock Cylinder

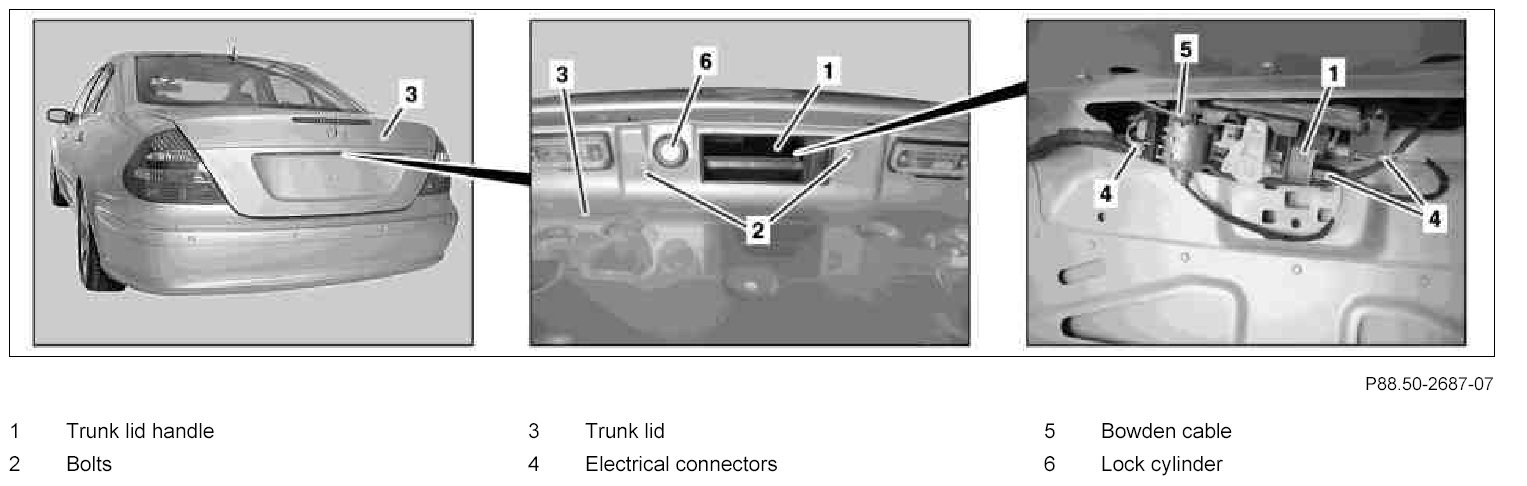

Component Identification:

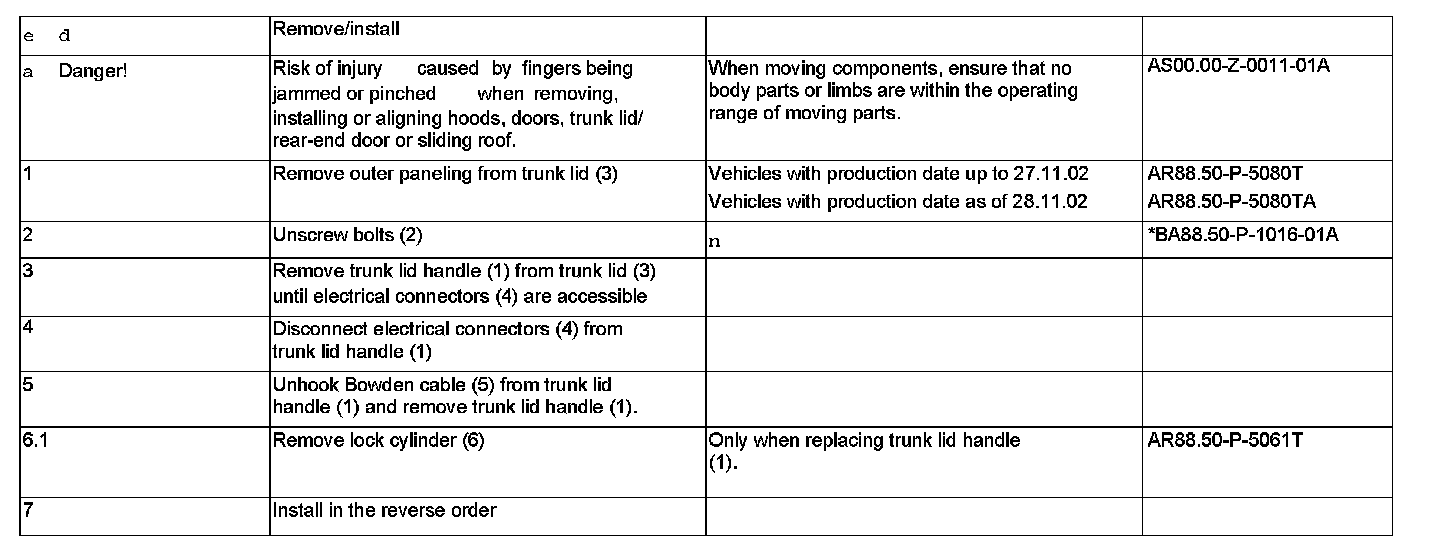

Steps 1 - 7:

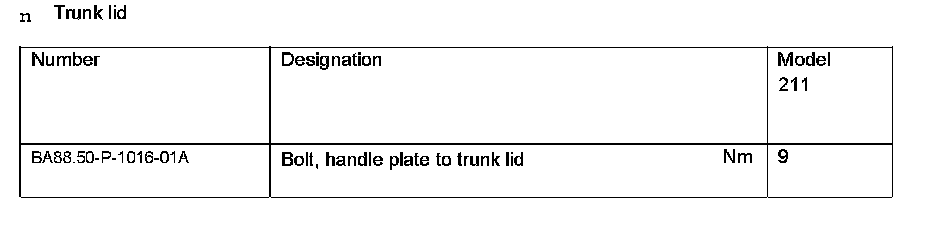

Trunk Lid:
