E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Description and Operation
>>

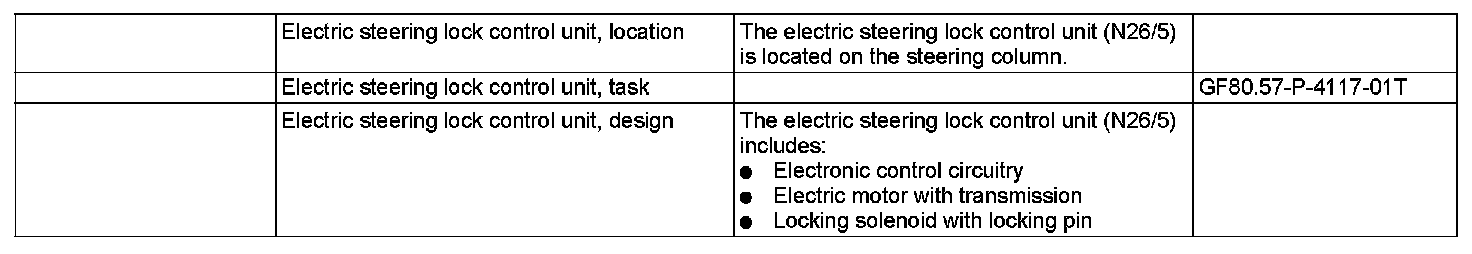

GF80.57-P-4117T Electric Steering Lock Control Unit, Location/Task/Design
GF80.57-P-4117T Electric Steering Lock Control Unit, Location/Task/Design
GF80.57-P-4117T Electric Steering Lock Control Unit, Location/Task/Design

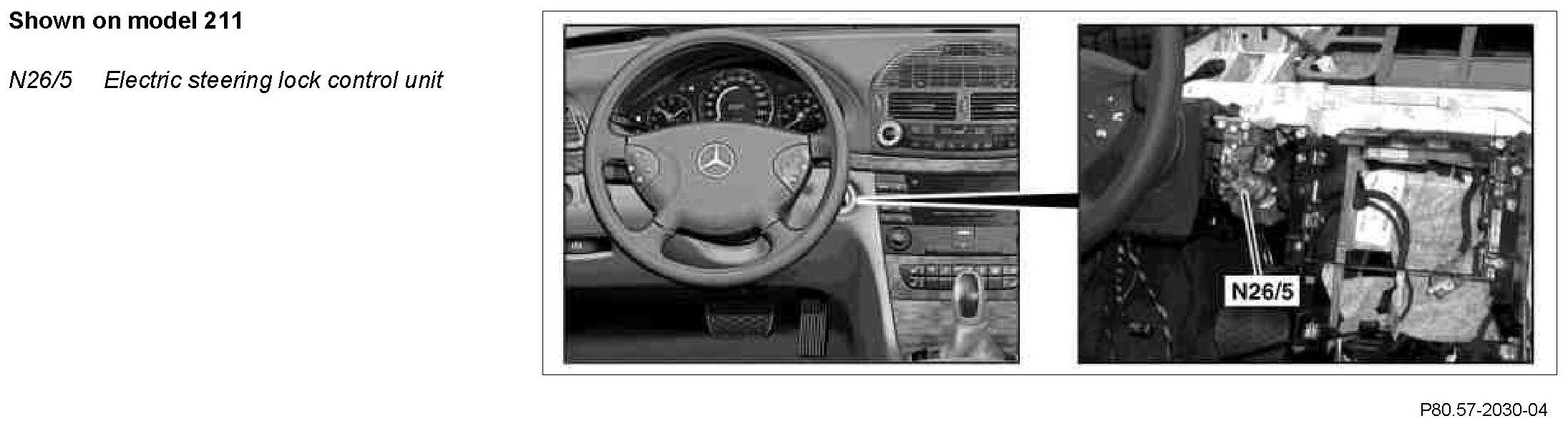

Component Identification:
