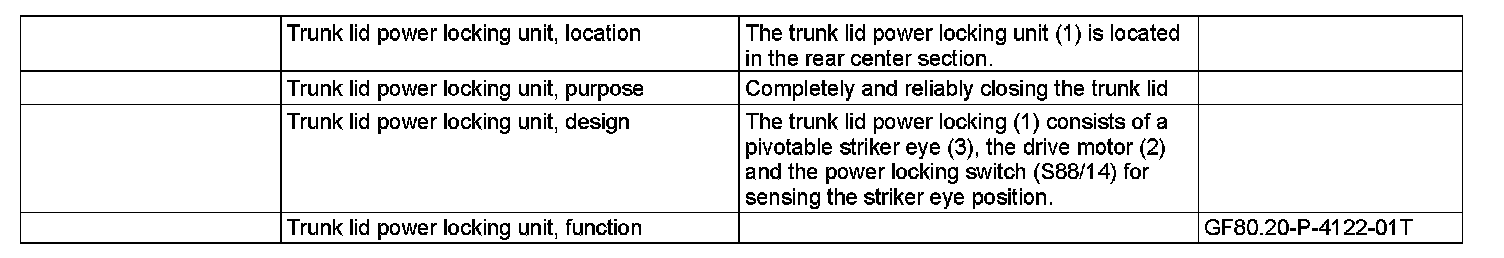

GF80.20-P-4122T Trunk Lid Power Locking Unit, Location/Purpose/Design/Function



GF80.20-P-4122T Trunk Lid Power Locking Unit, Location/Purpose/Design/Function
- with CODE (881b) Remote trunk locking (RTL)

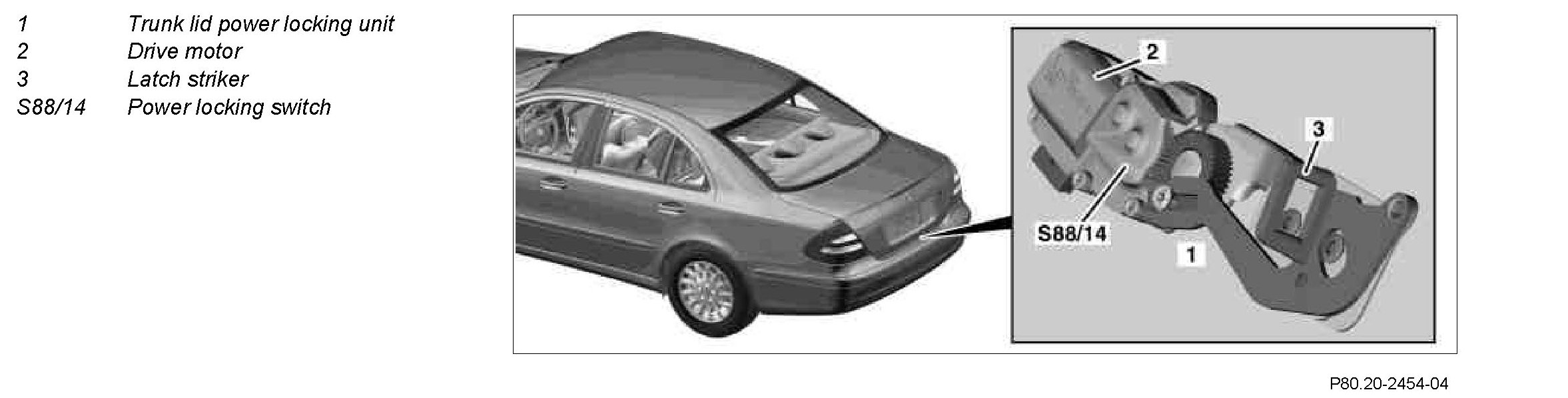

Component Identification:
