E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Console
>>
Service and Repair
>>
AR68.20-P-2000T Remove/Install Center Console
AR68.20-P-2000T Remove/Install Center Console
AR68.20-P-2000T Remove/Install Center Console

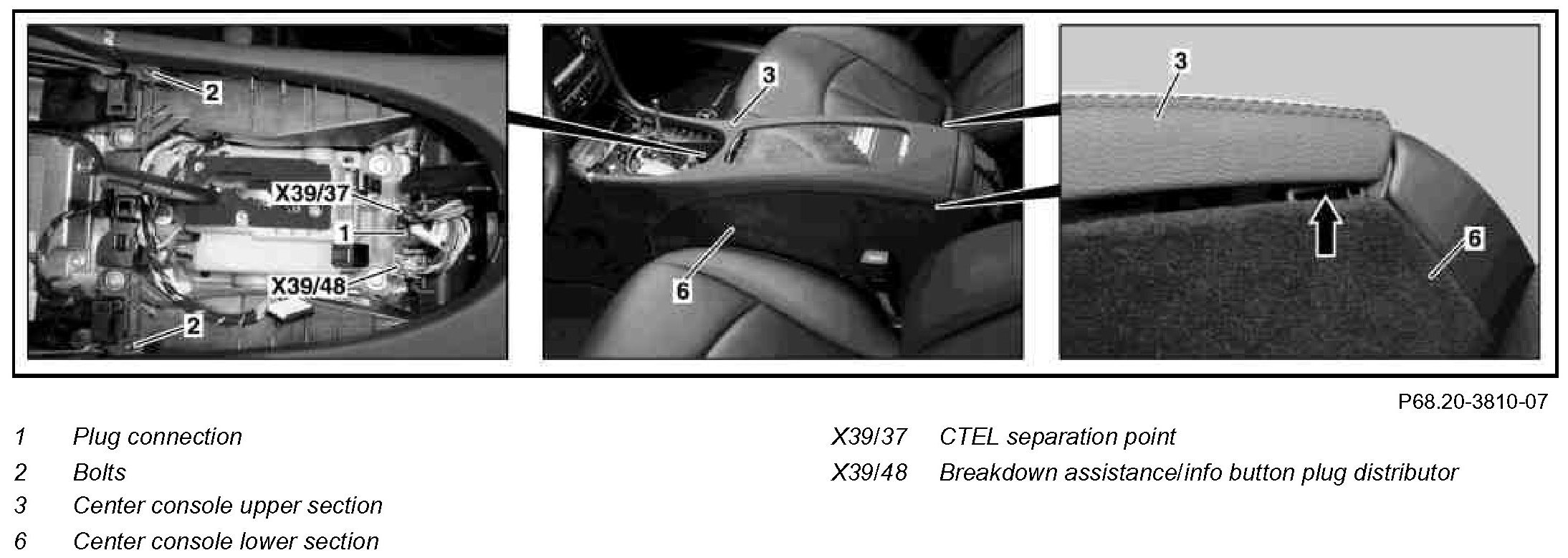

Component Identification:

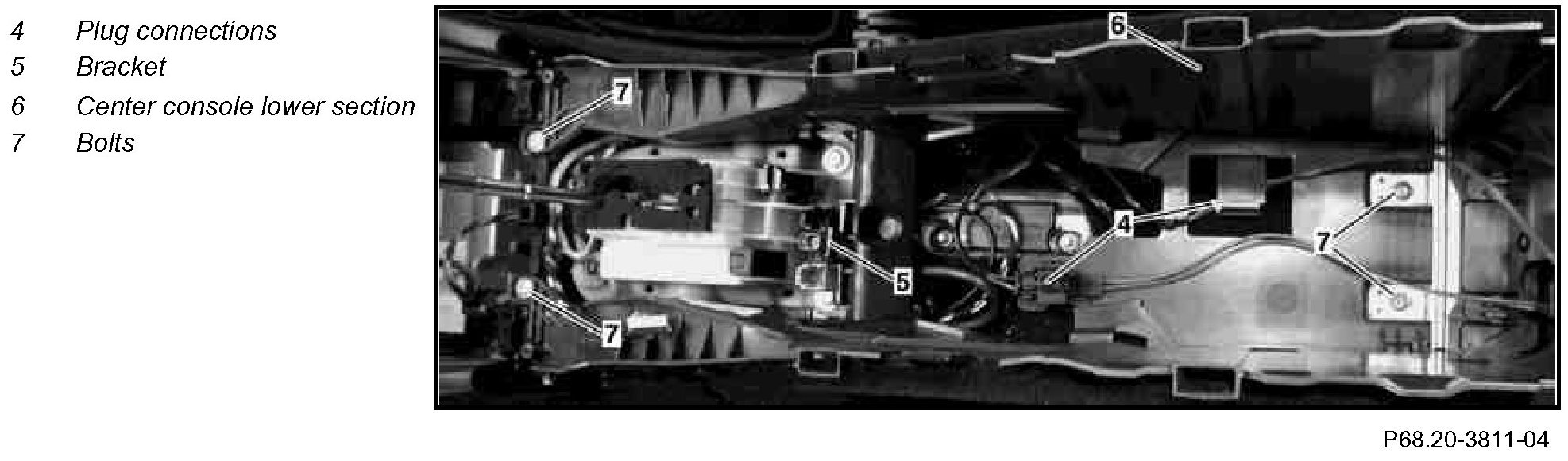

Component Identification:

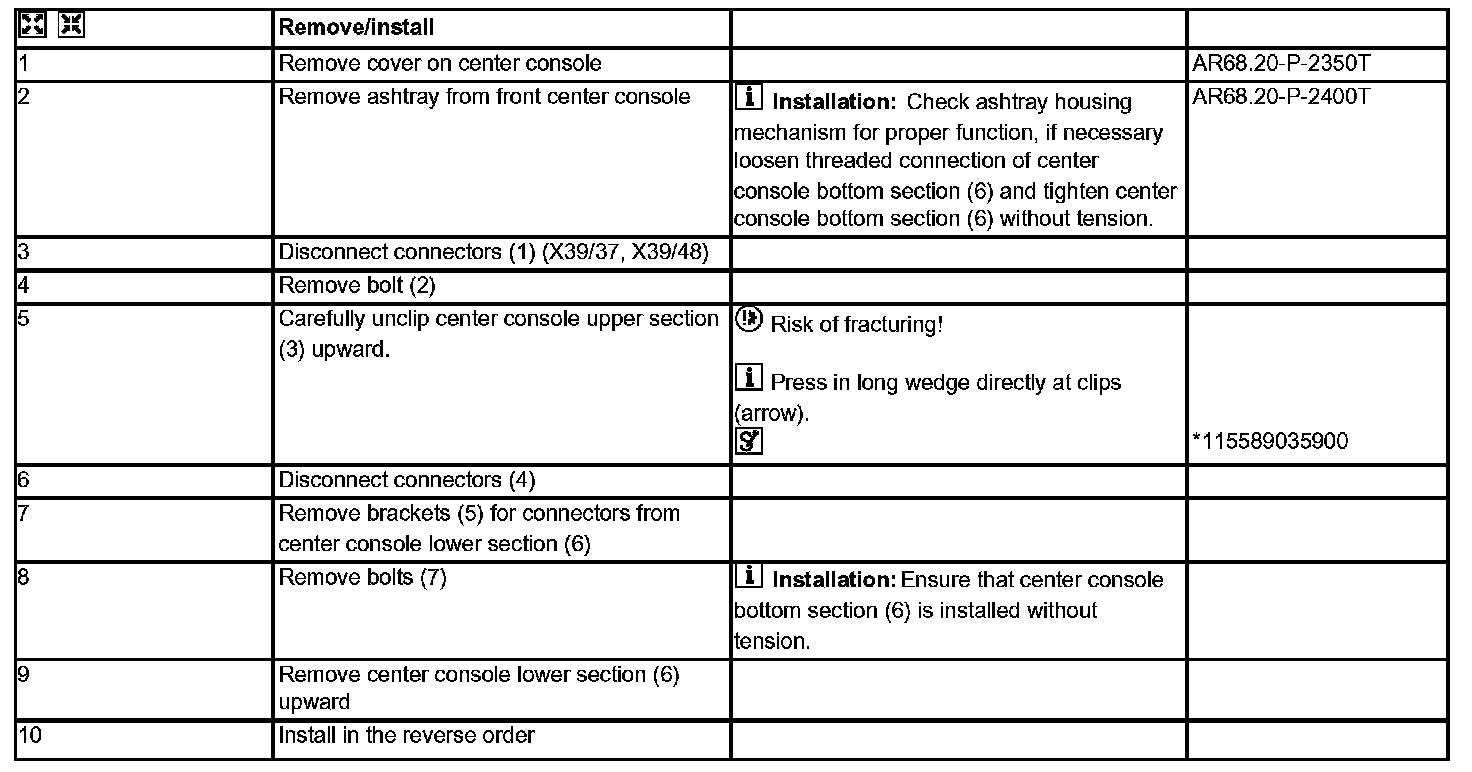

Steps 1 - 10:

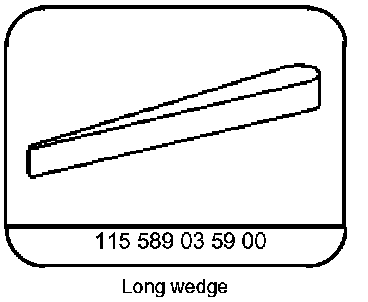

Special Tools:
