Home >> Mercedes Benz >> 2006 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Body and Frame >> Frame >> Subframe >> Front Subframe >> Service and Repair >> Removal and Replacement >> AR33.10-P-0101T Lower Front Axle

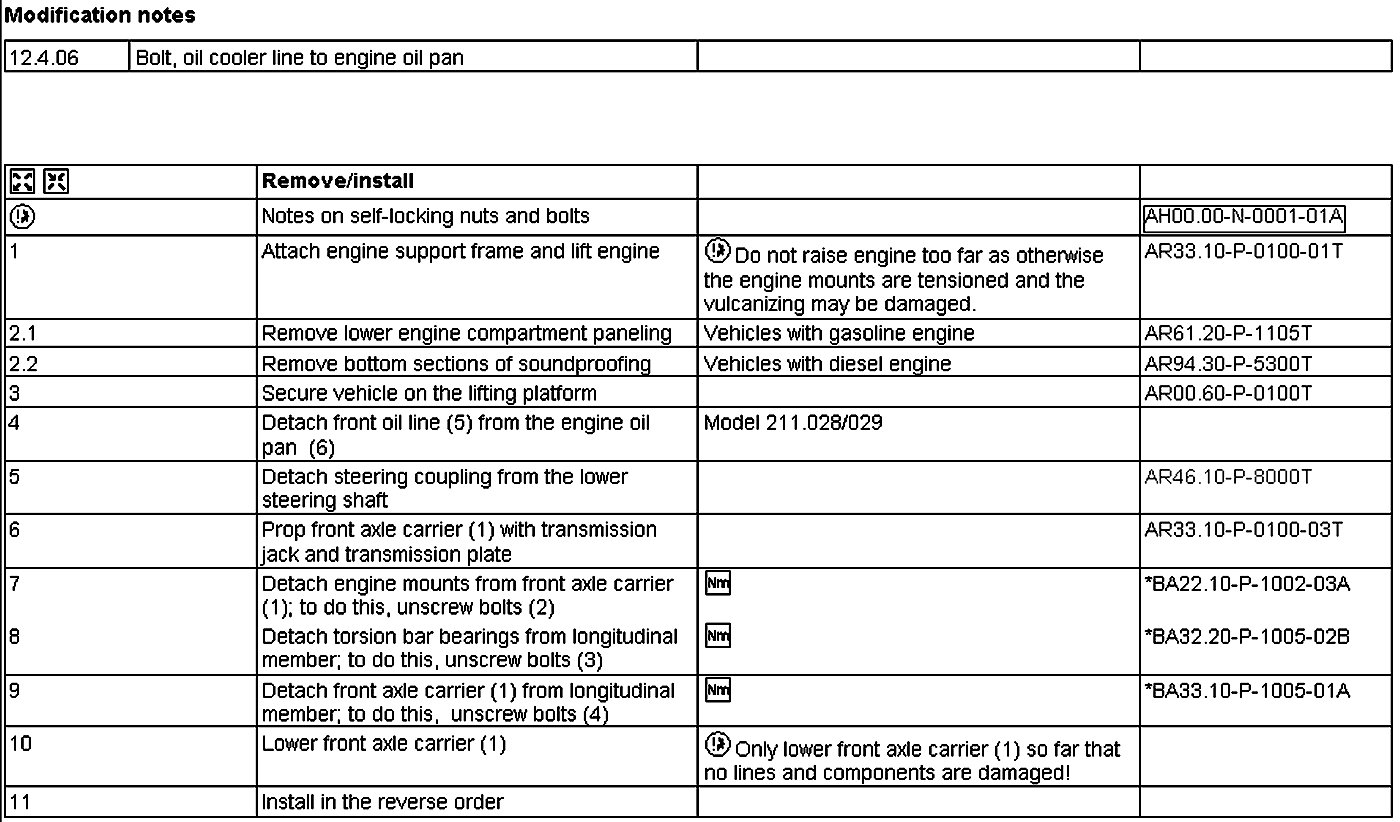

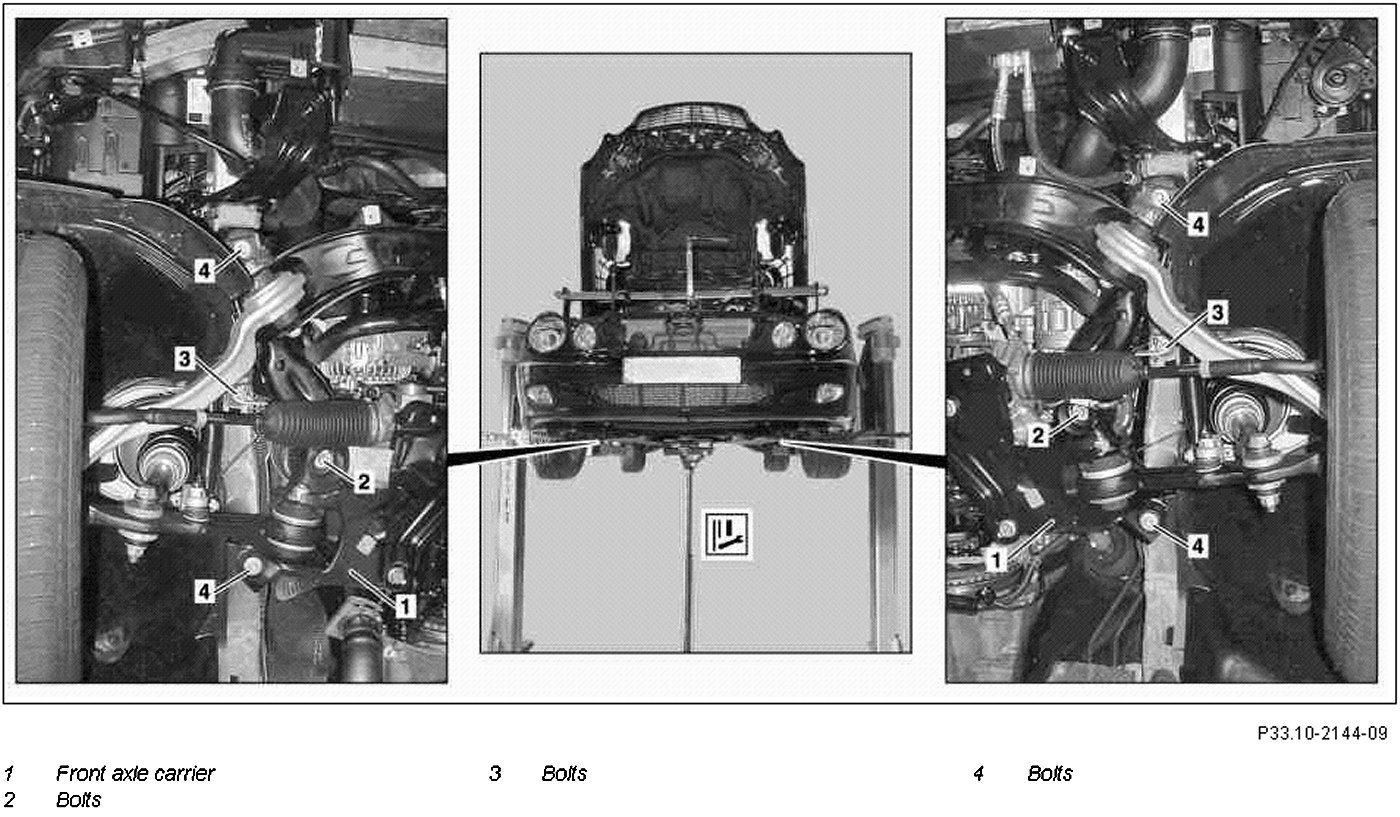

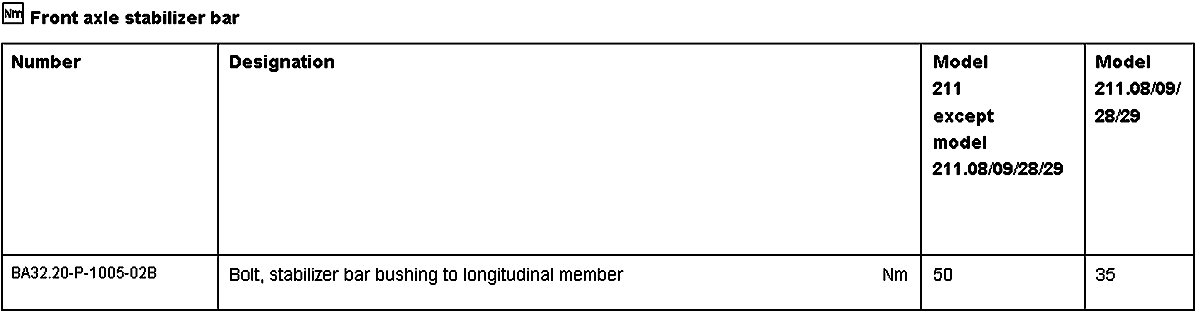

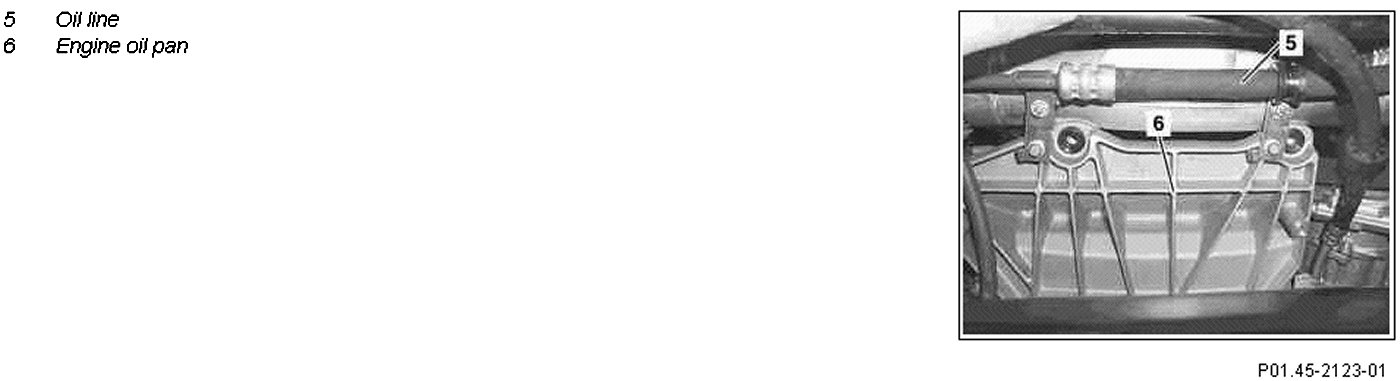

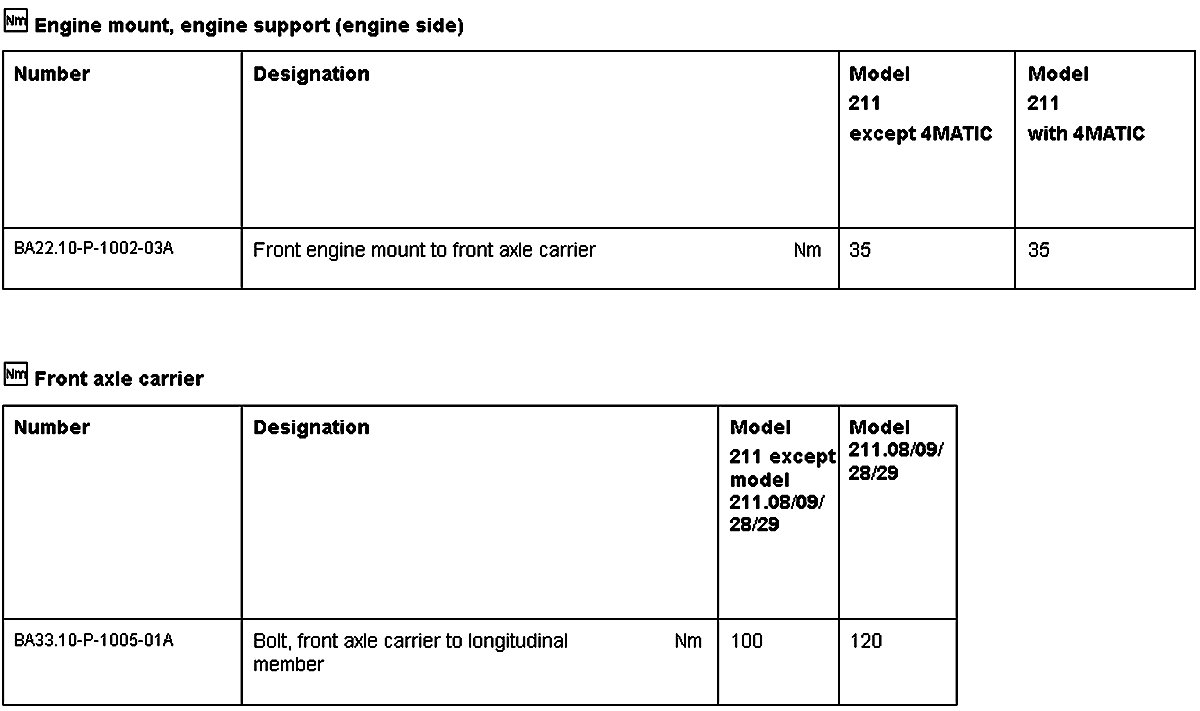

AR33.10-P-0101T Lower Front Axle



AR33.10-P-0101T Lower Front Axle
