Rear Fender Liner: Service and Repair
AR88.10-P-1400T Remove/Install Wheelhousing Liner In Rear Wheelhousing

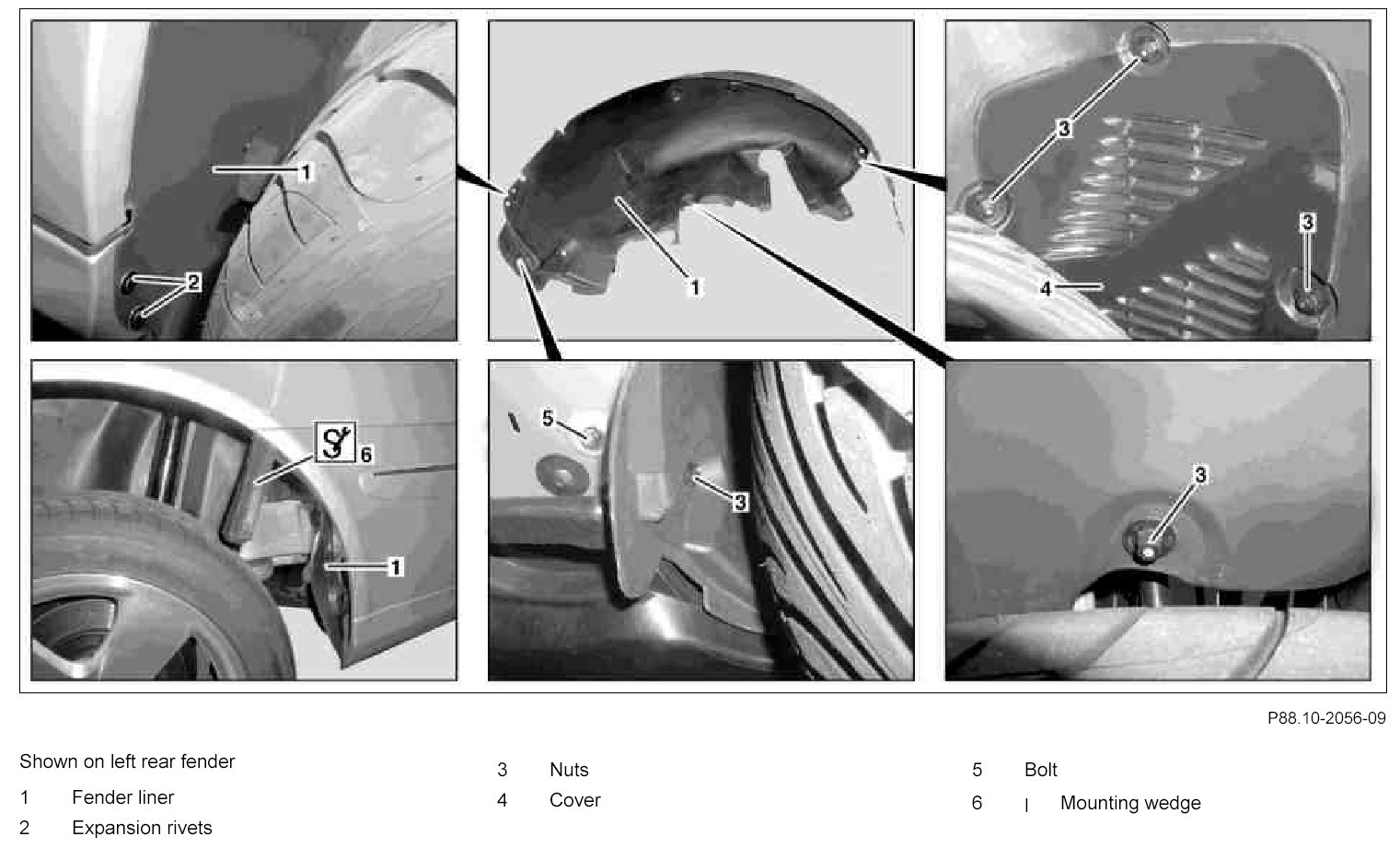

Component Identification:

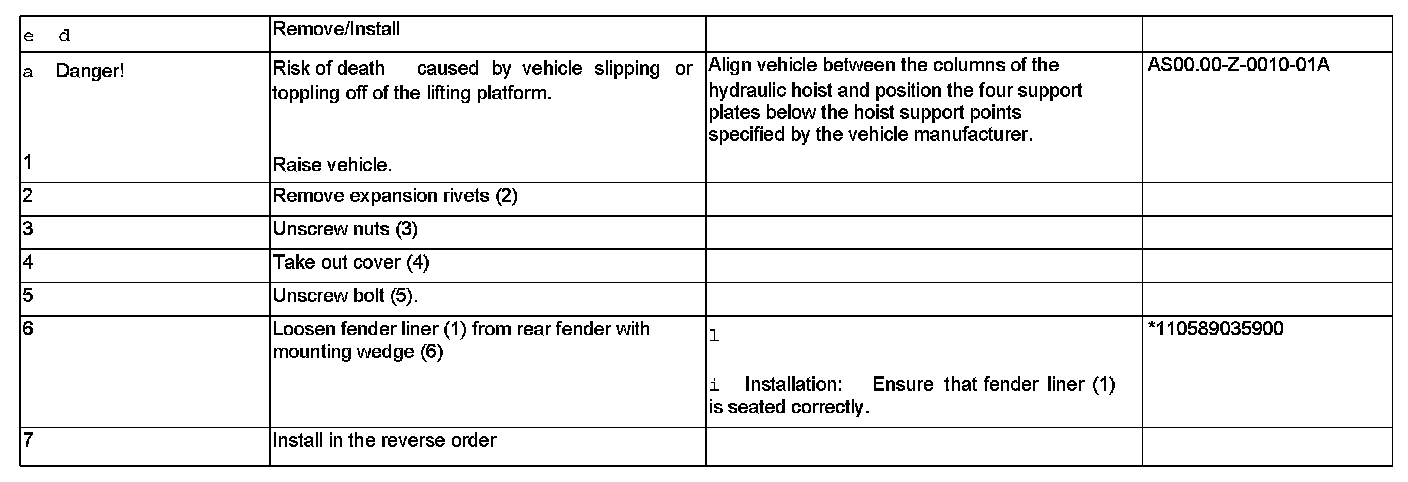

Steps 1 - 7:

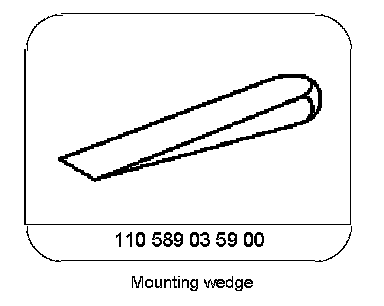

Special Tools:
