Underbody Cover: Service and Repair
AR61.30-P-1001T Remove/install Underbody Paneling

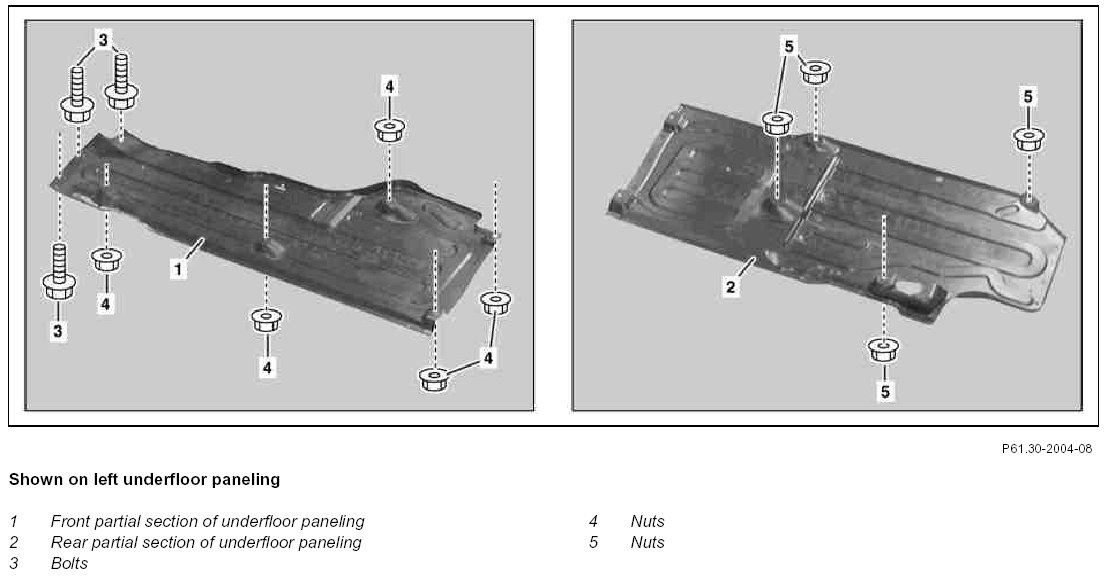

Component Identification:

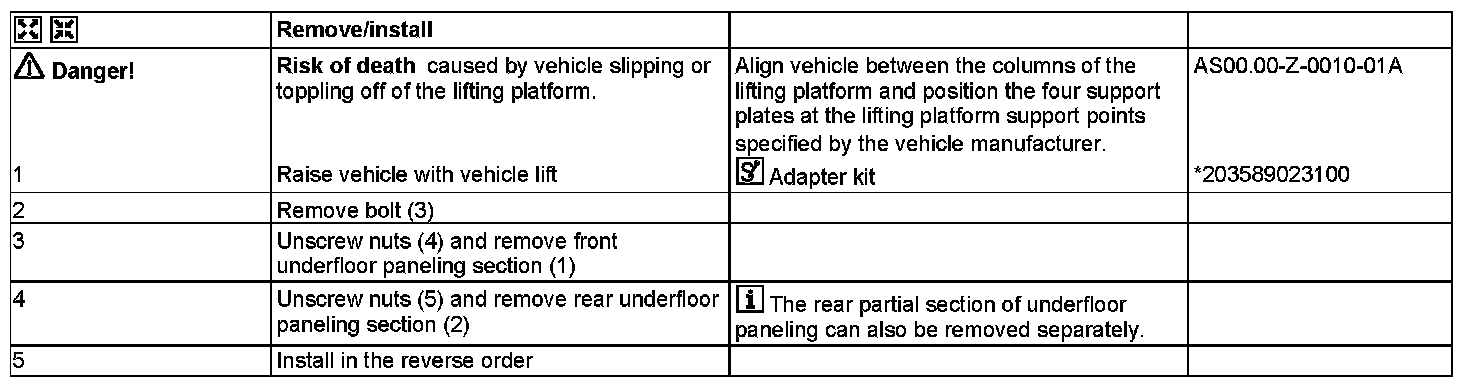

Steps 1 - 5:
Special Tools:
