Campaign - Luggage Compartment Stop Plug

Campaign No. 2006070002, July 2006

FILE:
SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION _ PARTS & ACCESSORIES BINDER

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT:
MODEL 211, MODEL YEAR 2006 INSTALL REAR CENTER SECTION STOP PLUG

This Service Campaign has been initiated because DCAG has determined that on the affected vehicles (see VIN range) the rear center section (luggage compartment) that was installed is missing or has an incorrect stop plug. Moisture may enter the compartment as a result. Dealer should install or replace stop plug as indicated in these instructions.

Please review the Effective Serial Number chart, and if necessary, repair the subject vehicles during the vehicle's next service.

Prior to performing this Service Campaign:

^ Please check VMI to insure the vehicle is involved and to determine if the vehicle has been previously repaired.

^ Please review the entire Service Campaign bulletin.

Approximately 170 vehicles are affected.

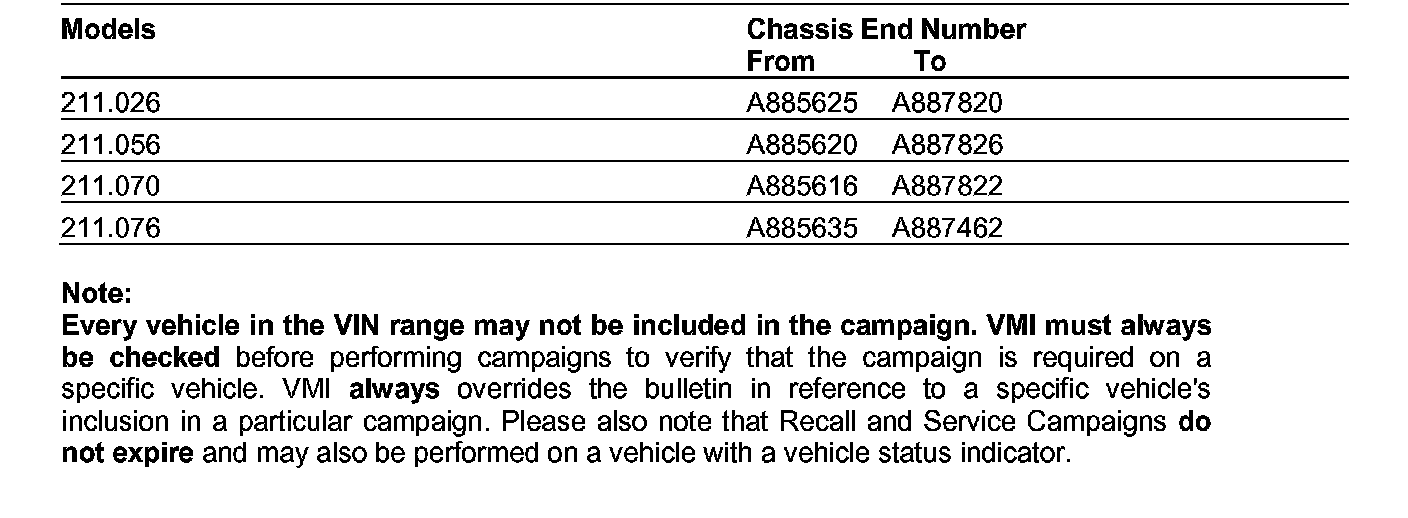

Effective Serial Number Range

Procedure

1. Remove rear center section paneling from trunk.

2. Perform one of the following:





^ If no stop plug (A, Figure 1) is present, install stop plug.

^ If a stop plug (A) is present, replace stop plug.

^ If no stop plug hole (A) is present, proceed to next step.

3. Reinstall rear center section paneling.

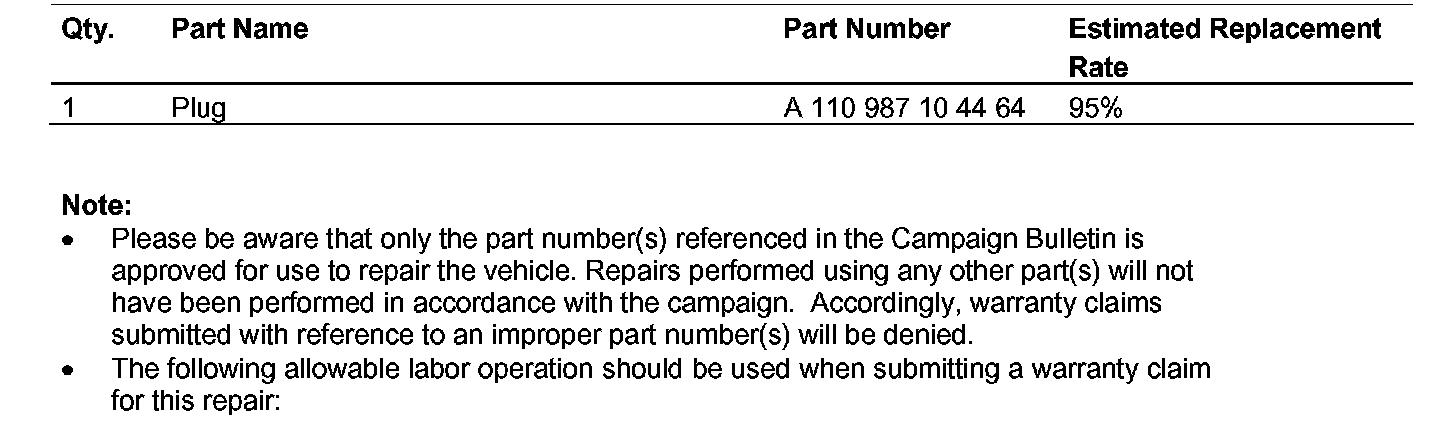

Parts Information

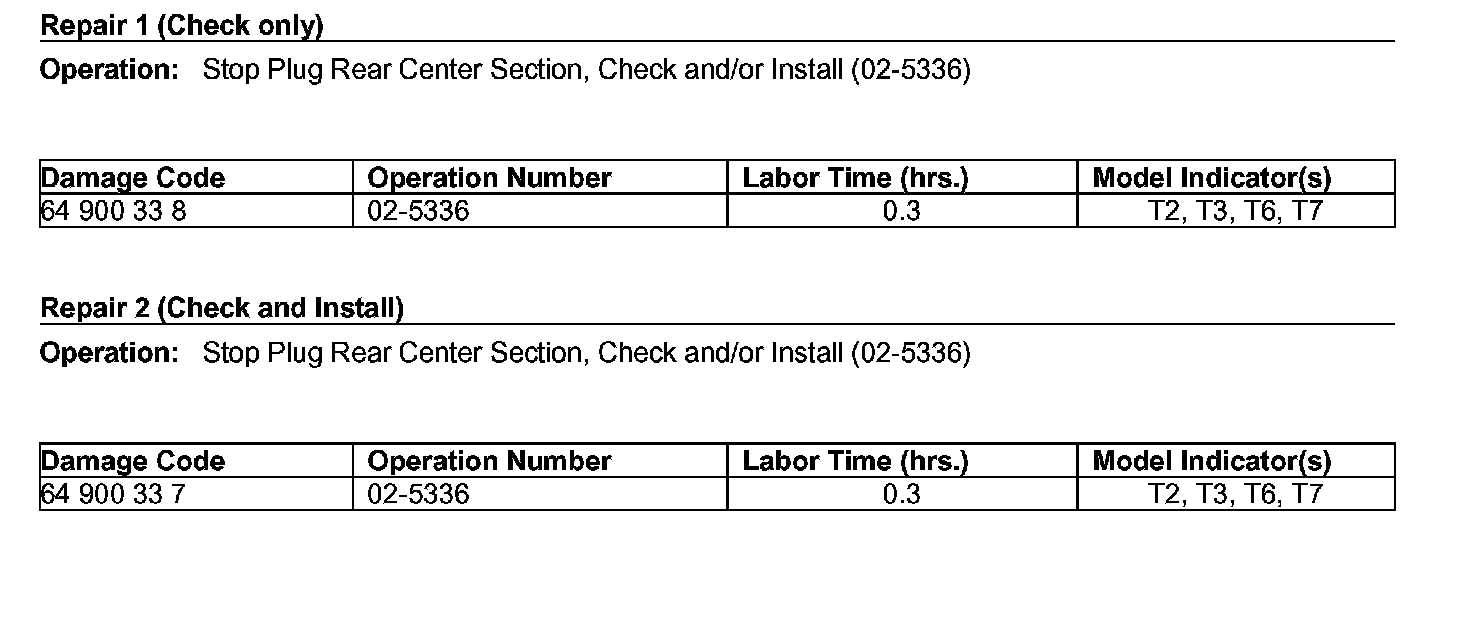

Warranty Information
