Home >> Mercedes Benz >> 2006 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Rear Door >> Rear Door Limiter >> Service and Repair

Rear Door Limiter: Service and Repair

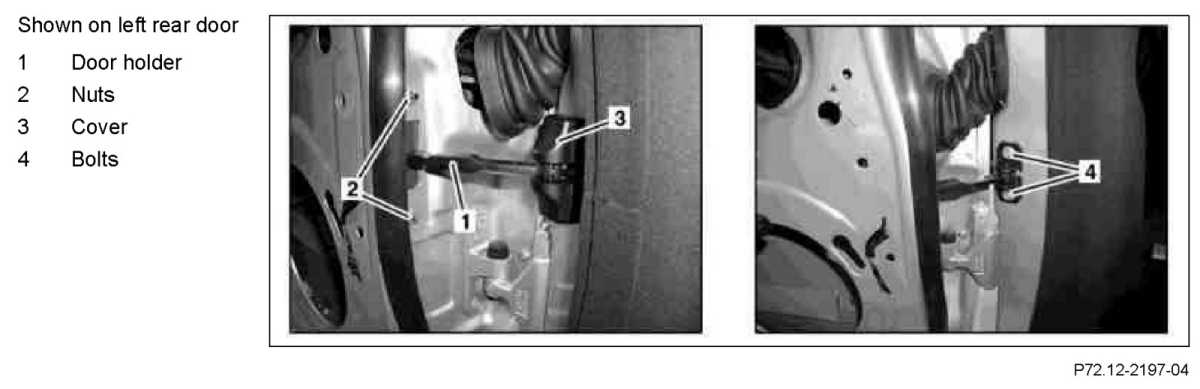

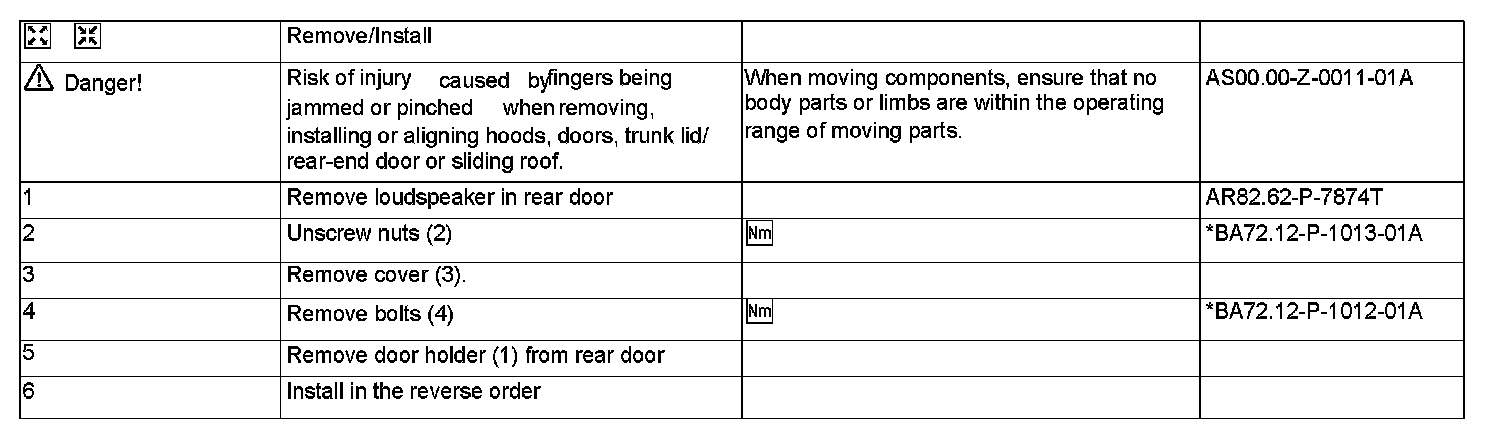

AR72.12-P-2100T Remove/Install Rear Door Holder












Rear Door:
