AZ88.00-P-0001-03P Convert Rear Bumper

AZ88.00-P-0001-03P Convert Rear Bumper
- up to 31.5.06


Preparation

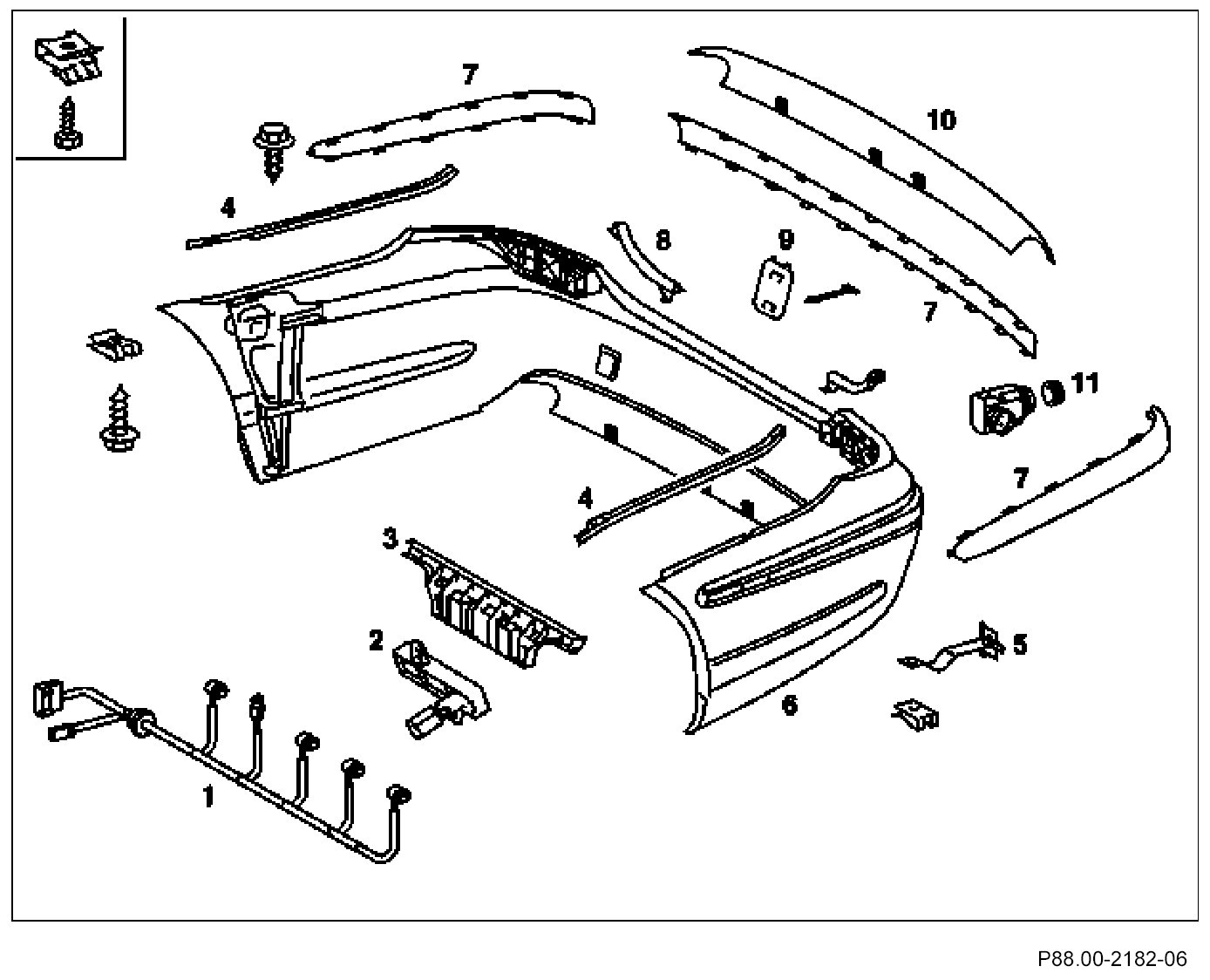

1. Remove inner carrier (3), bracket (5) and side mounts (4) from bumper (6)
2. Remove Parktronic wiring harness (1), sensors (11), antenna (2) as well as moldings (7) and covers (8, 9) from bumper (6).

Assembly

3. Glue plastic cover (10) onto bumper (6).
4. Assemble and install bumper (6) in opposite order.
