AZ88.00-P-0001-02P Converting Front Bumper

AZ88.00-P-0001-02P Converting Front Bumper
- up to 31.5.06







Preparation

1. Remove standard bumper.

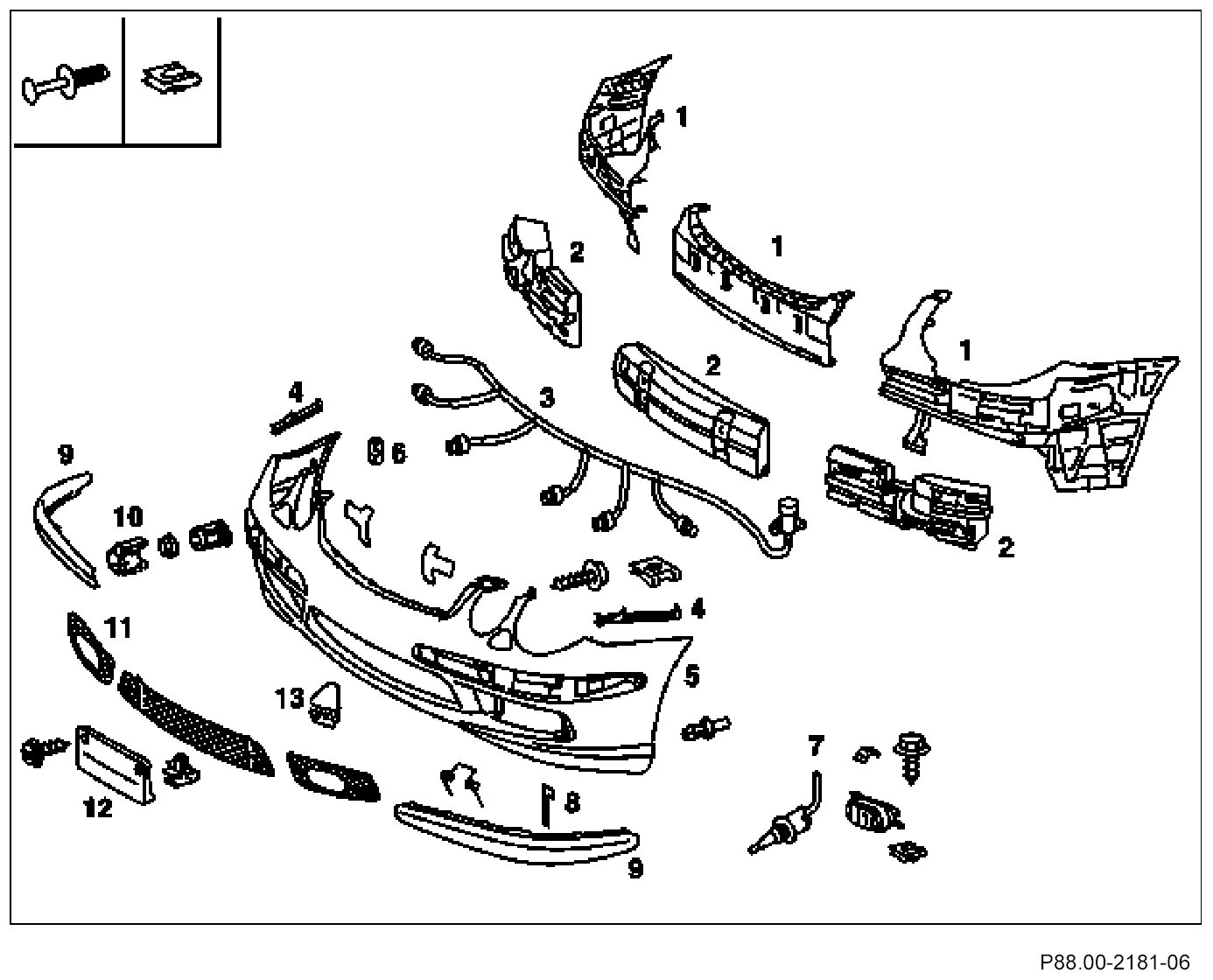

2. Remove inner carrier (1), impact damper (2), Parktronic wiring harness (3).

Remove headlamp (7), headlamp cleaning system cover plate (13) and holder (4).

3. Remove moldings (9), sensors (10), license plate molding (12), grille (11).
4. Mask webs on AMG outer surface (5) with black adhesive foil (8).
5. Insert socket (6) into AMG outer surface (5).

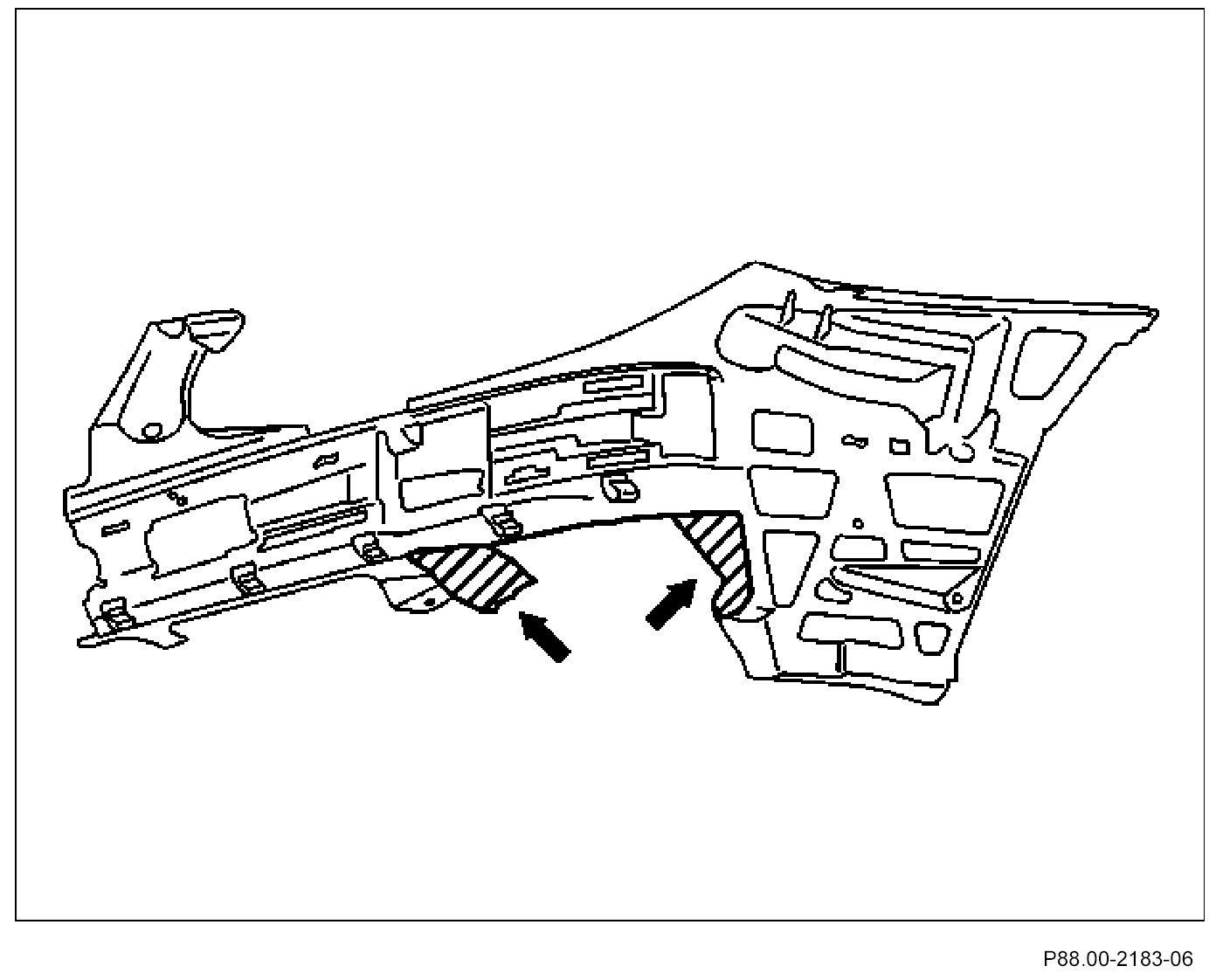

6. Cut inner carrier (1) at marked points.

Assembling

7. Reassemble and install bumper in opposite order Use license plate molding AMG.
