GF82.62-P-3102-03TU Audio Gateway Control Unit, Design

GF82.62-P-3102-03TU Audio Gateway Control Unit, Design
- with CODE (528) HIGH Class USA

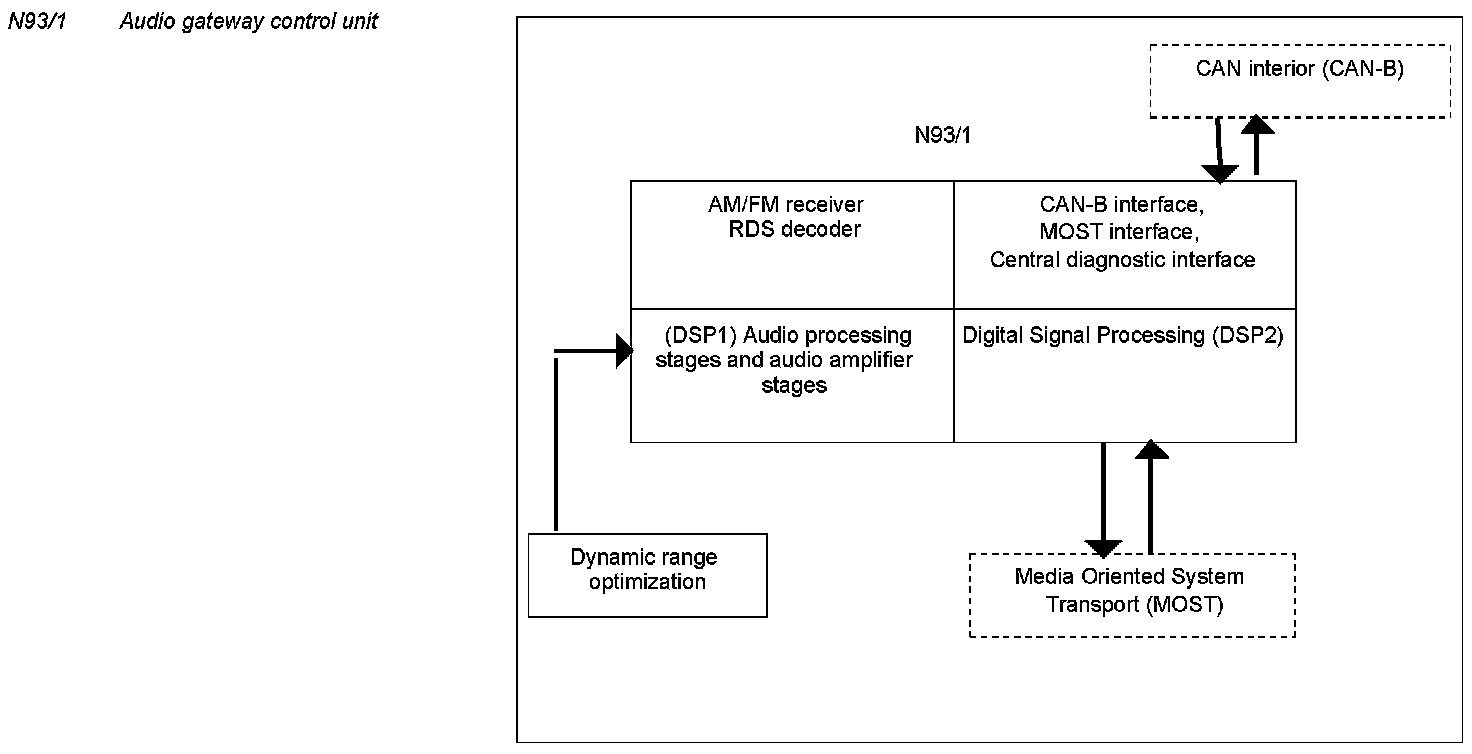

Audio gateway control unit (N93/1), with code (810) sound-system







Basic scope of function (standard):
^ Radio receiver (AM/FM)
^ Audio processing stages and audio amplifier stages (DSP1)
^ CAN-B interface
^ MOST interface
^ Microphone input
^ RDS decoder
^ Central diagnostic interface


Additional scope of function with code (810) sound system:
^ Expanded audio amplifier stages, Digital Signal Processing (DSP2)
