GF82.60-P-3115-03TC Radio Control Panel, Design



GF82.60-P-3115-03TC Radio Control Panel, Design

Design

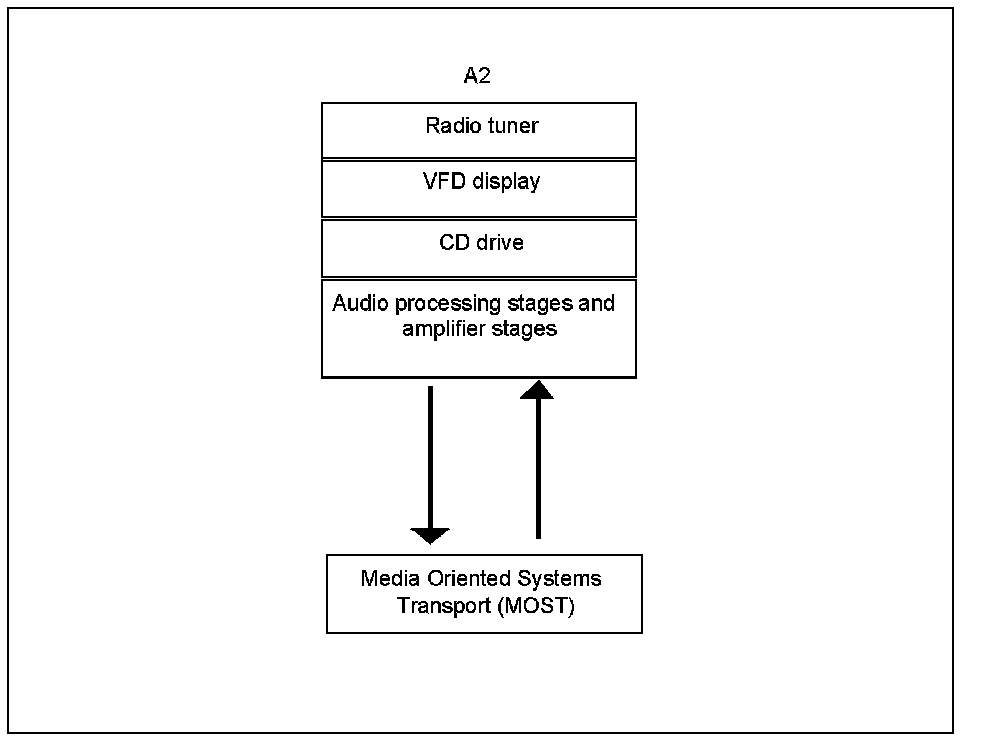

The following are integrated in the radio (A2):
^ VFD display in transflective technology
^ CD drive Audio processing stages and amplifier stages
^ Radio tuner
