AN82.61-P-0001-06TAS Retrofit MOST Fiber Optic Cable Wiring Harness

AN82.61-P-0001-06TAS Retrofit MOST Fiber Optic Cable Wiring Harness
- except CODE (924) Bivalent natural gas drive
- except CODE (596) Heat-insulating glass

Risk of breakage: Do not kink or stretch fiber optic cables and do not route them over sharp edges. The bending radius must not be smaller than 25 mm. Clamps or tie straps for securing the fiber optic cables must not be fastened too tightly.

Component Identification:

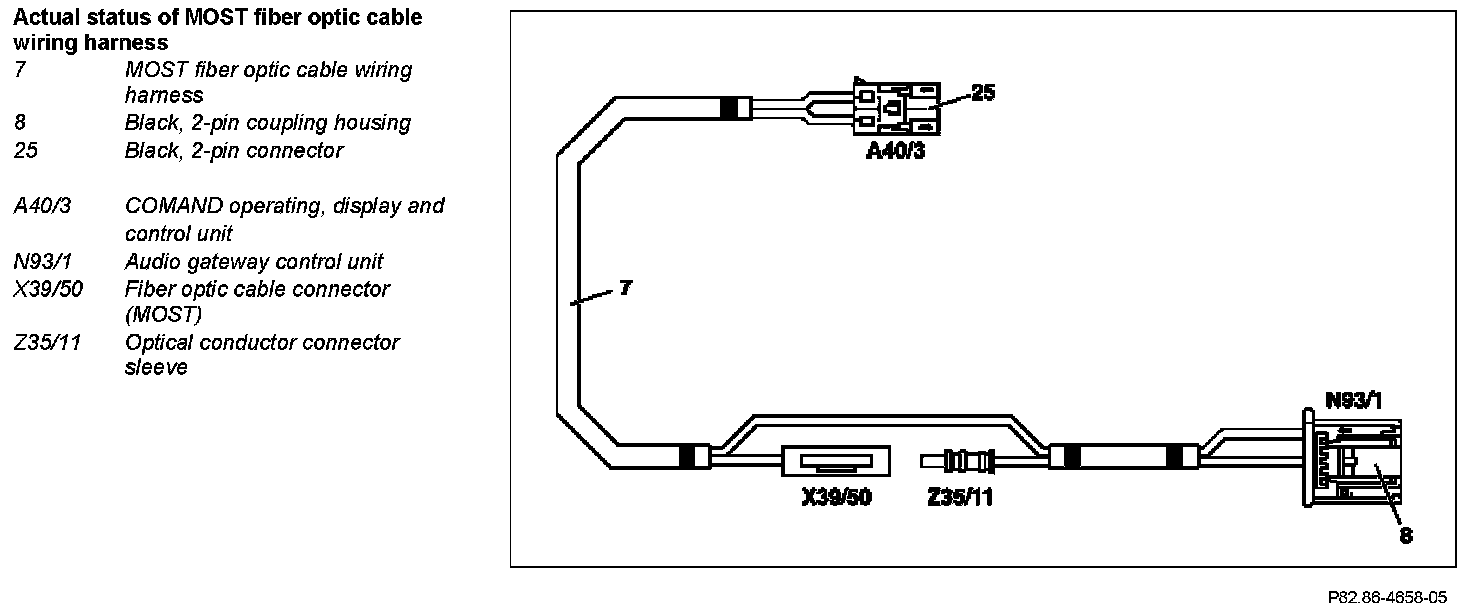

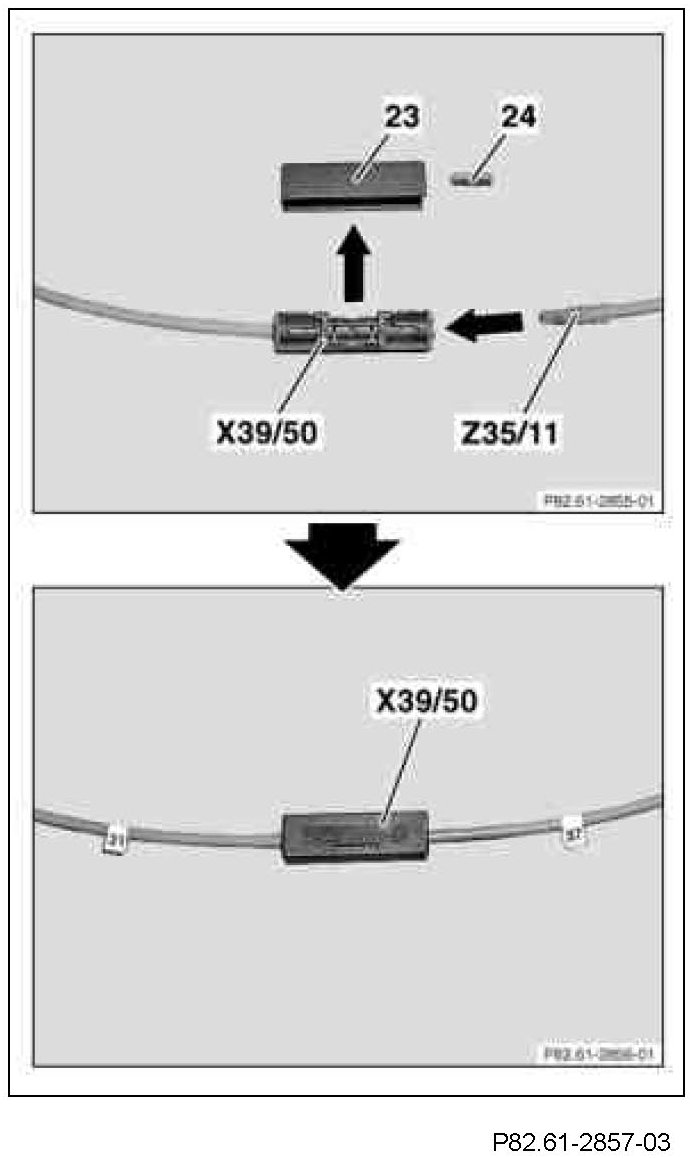

1 Unclip covering (23) of fiber optic cable connector (MOST) (X39/50) in direction of arrow.
2 Remove dust excluder (24) of optical conductor connector sleeve (Z35/11) (dust excluder (24) no longer required).
3 Insert optical conductor connector sleeve (Z35/11) into fiber optic cable connector (MOST) (X39/50).

The optical conductor connector sleeve (Z35/11) must audibly latch into place.

4 Clip covering (23) onto fiber optic cable connector (MOST) (X39/50).

Component Identification:

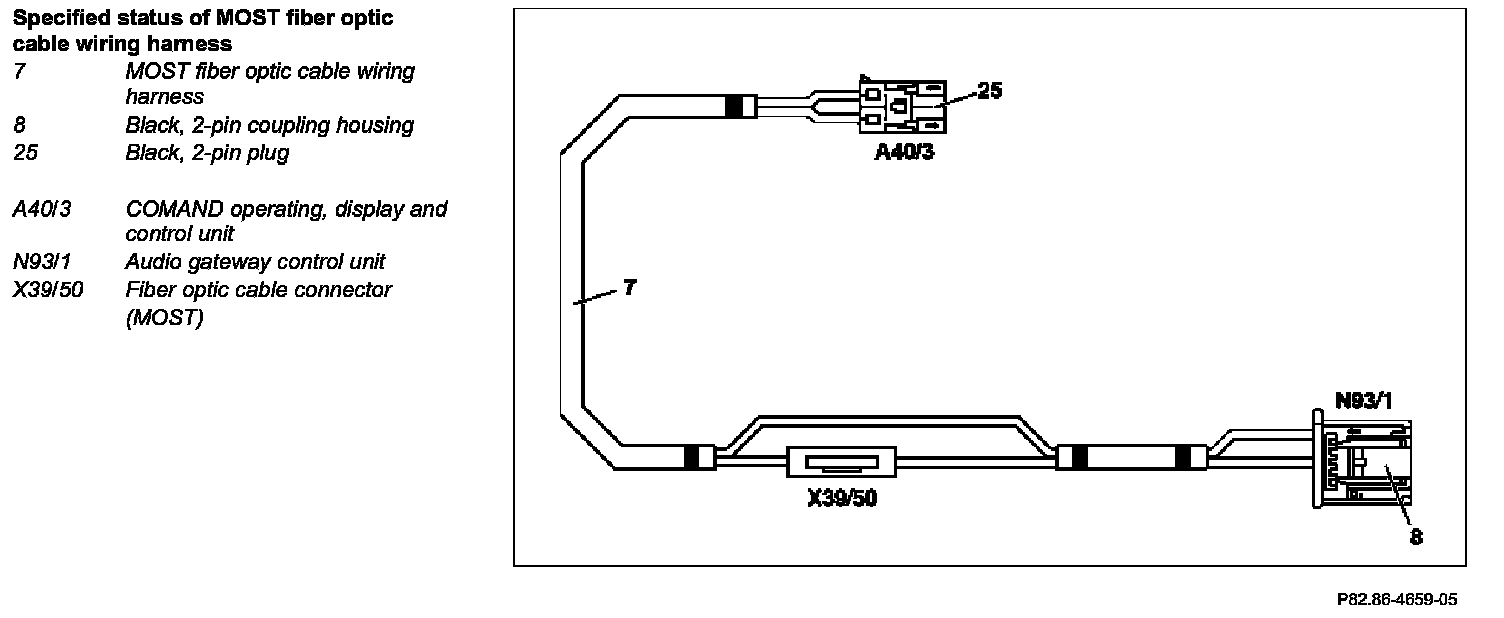

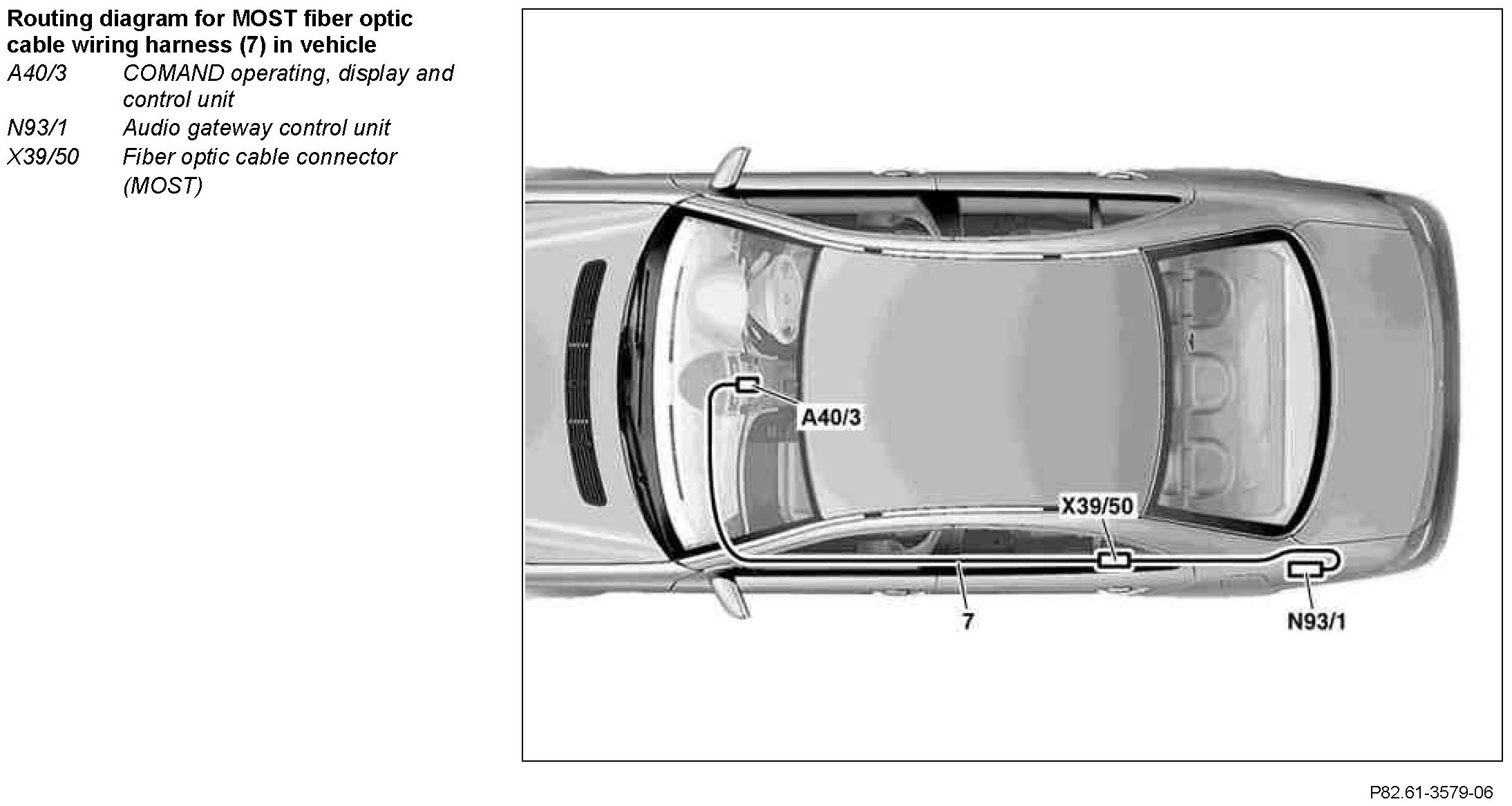

The MOST fiber optic cable wiring harness (7) is routed forward starting from the left of the luggage compartment.

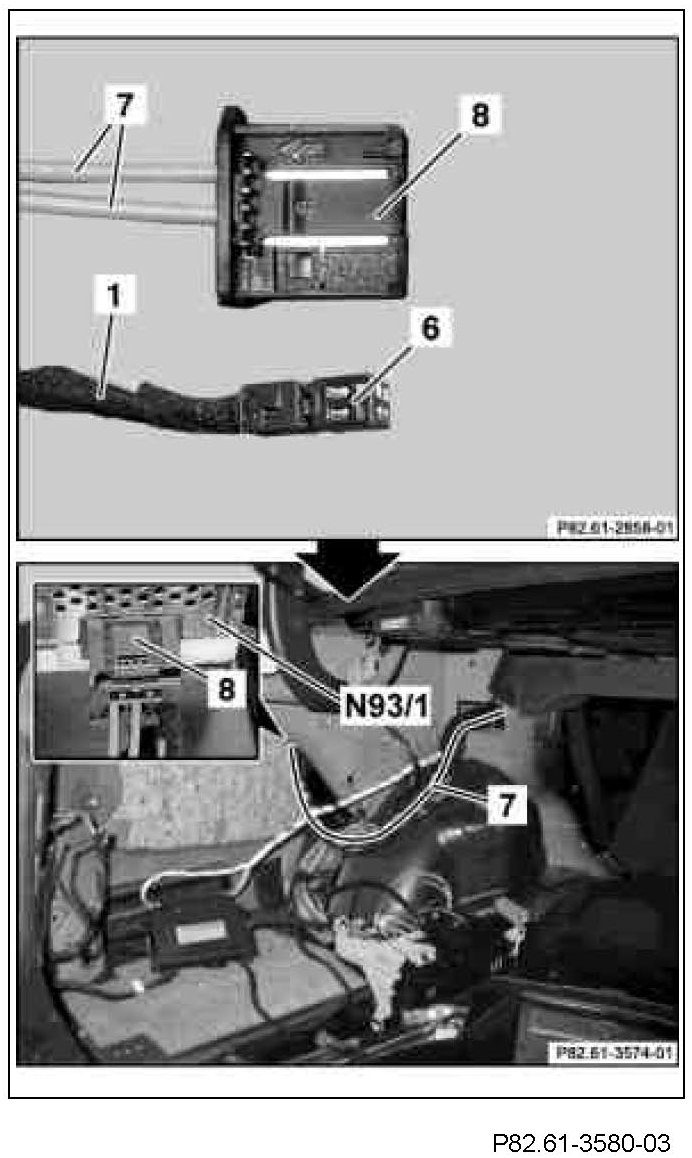

5 Insert black, 4-pin coupling (6) from auto pilot system wiring harness (1) into black, 6-pin coupling housing (8) of MOST fiber optic cable wiring harness (7).

Coupling housing (8) is from audio gateway control unit (N93/1). An arrow is located at the side of the black, 4-pin coupling (6). This corresponds to the direction of installation into the coupling housing (8).

6 Connect black, 6-pin coupling (8) to audio gateway control unit (N93/1).

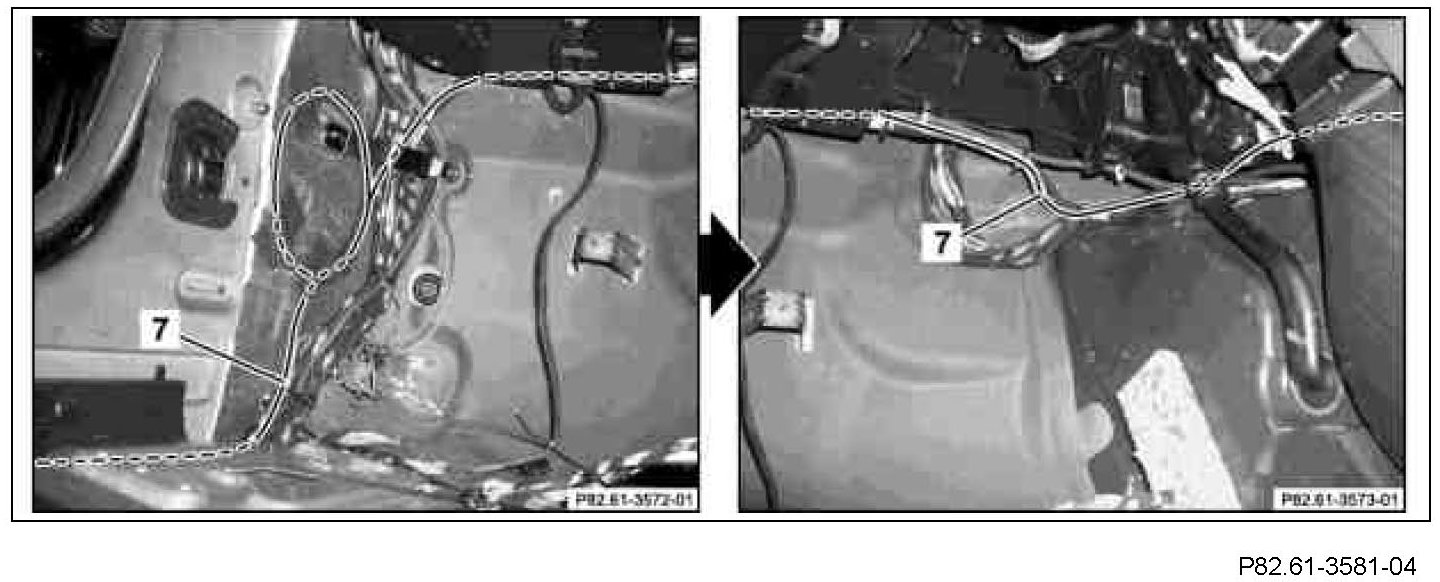

7 Fasten MOST fiber optic cable wiring harness (7) as shown in the picture onto left wheelhouse to existing lines.

The green color coding on the MOST fiber optic cable wiring harness (7) must line up with the green color coding of the standard wiring harness

8 Route MOST fiber optic cable wiring harness (7) further into left cable duct into the left front footwell.

9 Route MOST fiber optic cable wiring harness (7) from left footwell cable duct along on-board wiring harnesses to the radio recess and fasten in place.
10 Route excess length of MOST fiber optic cable wiring harness (7) to form a loop as shown in the picture in the area of the A-pillar and fasten in place using felt tape.

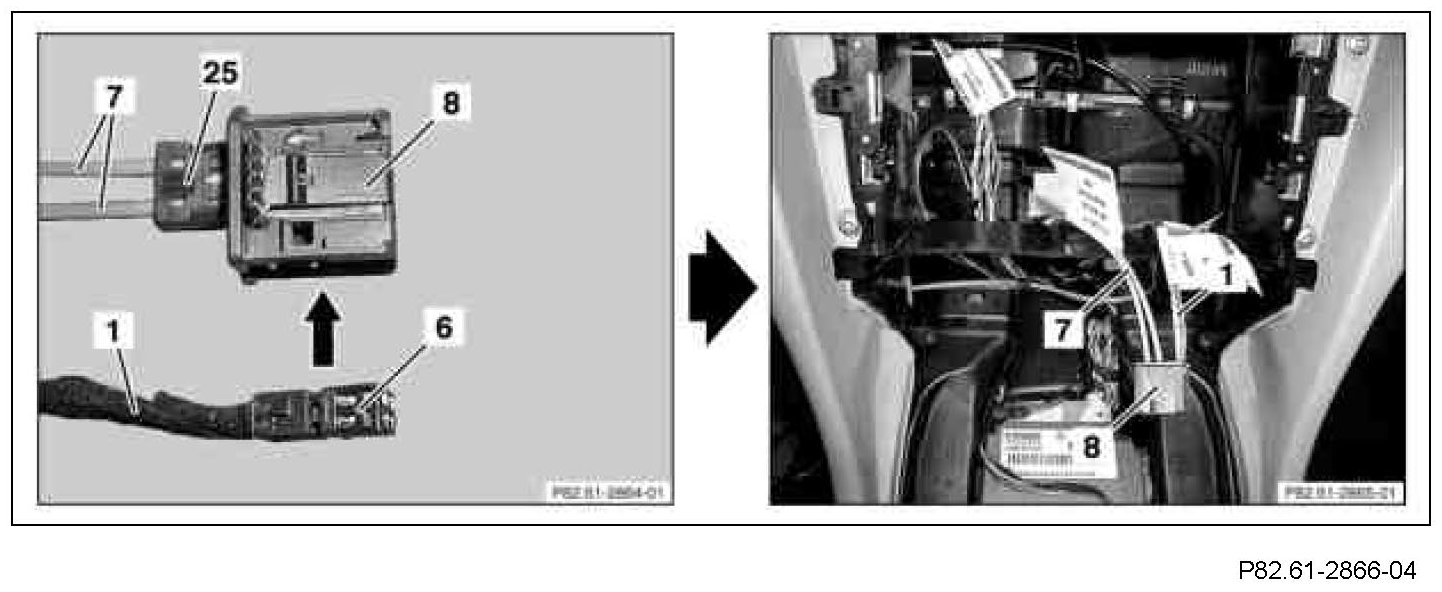

11 Insert black, 2-pin coupling (25) from MOST fiber optic cable wiring harness (7) into attached, black, 6-pin coupling housing (8).
12 Insert black, 4-pin coupling (6) from auto pilot system wiring harness (1) into black coupling housing (8).

An arrow is located at the side of the black, 4-pin coupling (6). This corresponds to the direction of installation into the coupling housing (8).
