Wiring Diagram of Auto Pilot System (APS) PE82.61-U-2101DA

Wiring Diagram Of Auto Pilot System (APS) Control Module PE82.61-U-2101DA
- with CODE (525) MB Audio 50 APS radio

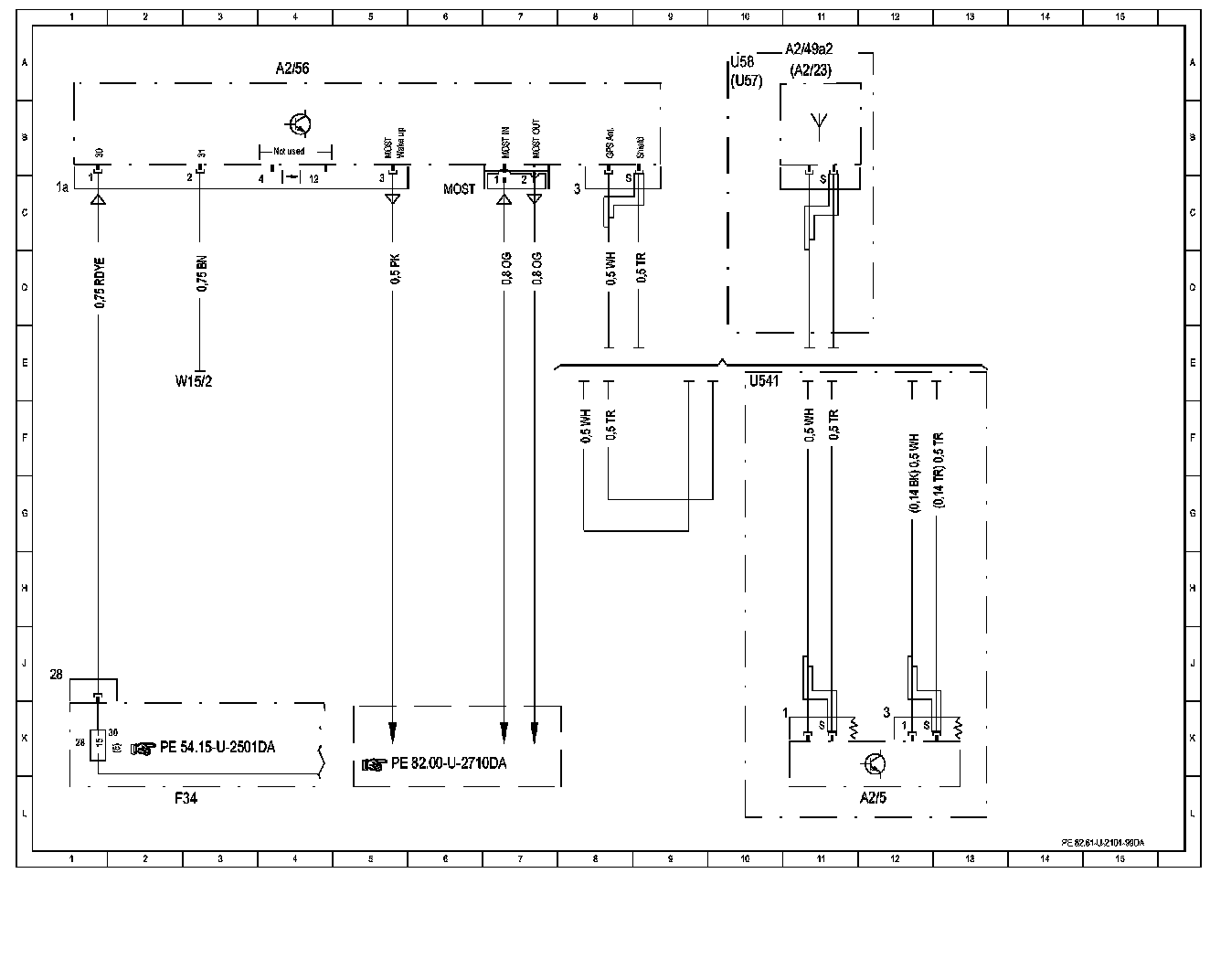

Wiring Diagram:

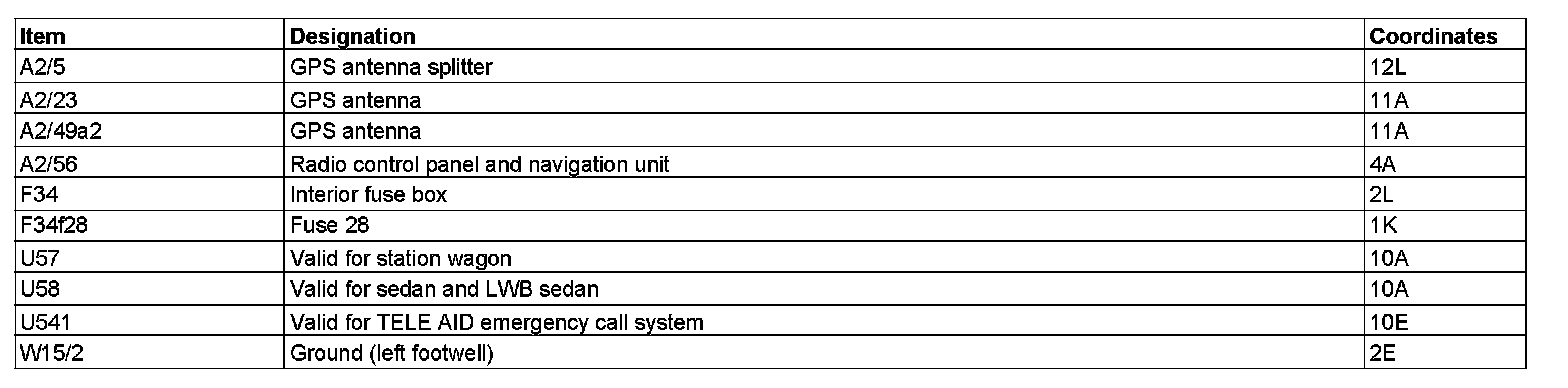

Component Description/Coordinates, A2/5 To W15/2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
