Home >> Mercedes Benz >> 2006 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Description and Operation >> GF82.85-P-3103TA Navigation Processor, Location/Task/Design/Function

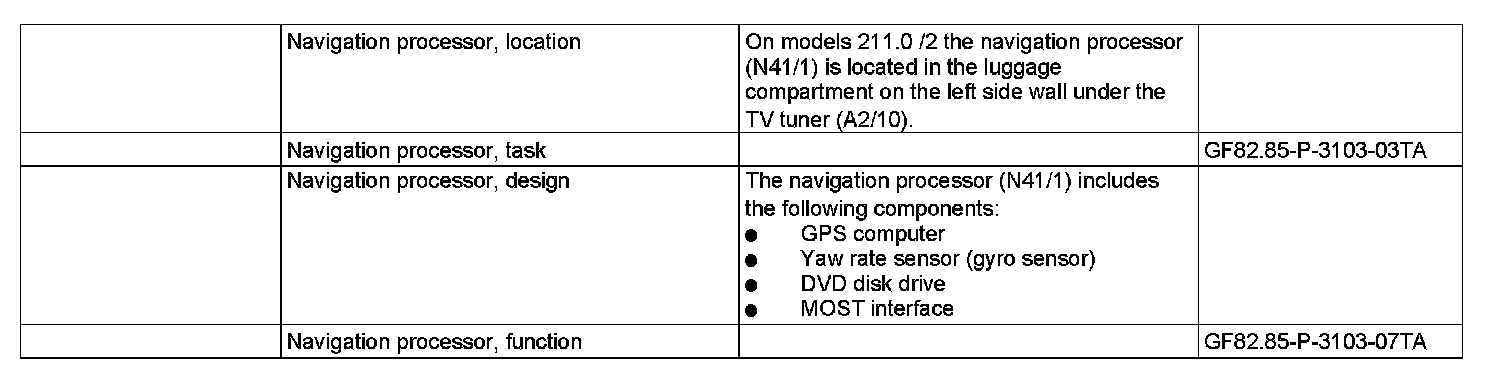

GF82.85-P-3103TA Navigation Processor, Location/Task/Design/Function



GF82.85-P-3103TA Navigation Processor, Location/task/design/function
- with CODE (527) Navigation module for COMAND

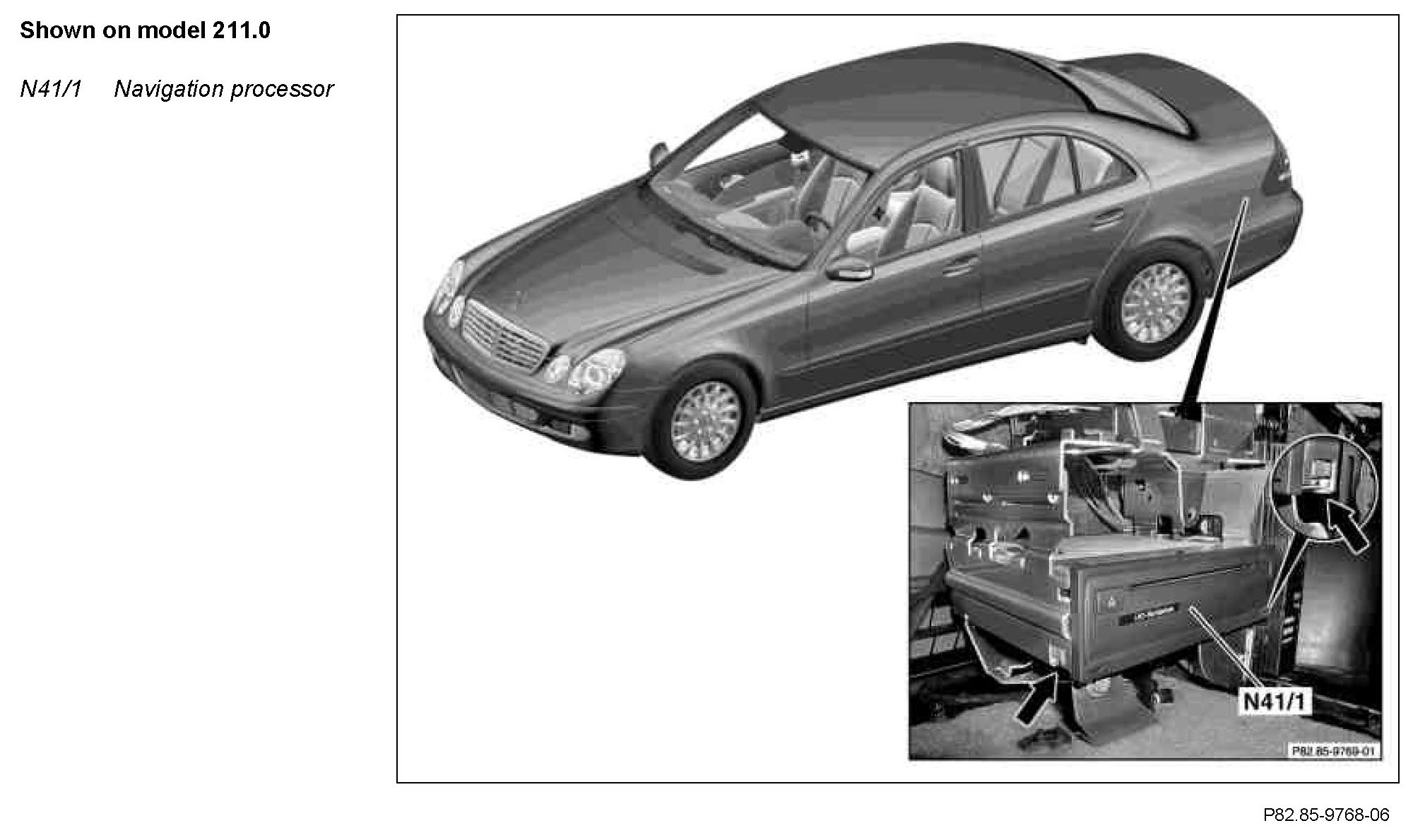

Component Identification:
