AZ54.65-P-0001TXX Retrofit Ultrasonic Backup Assist
AZ54.65-P-0001TXX Retrofit Ultrasonic Backup Assist
AZ54.65-P-0001TXX Retrofit Ultrasonic Backup Assist

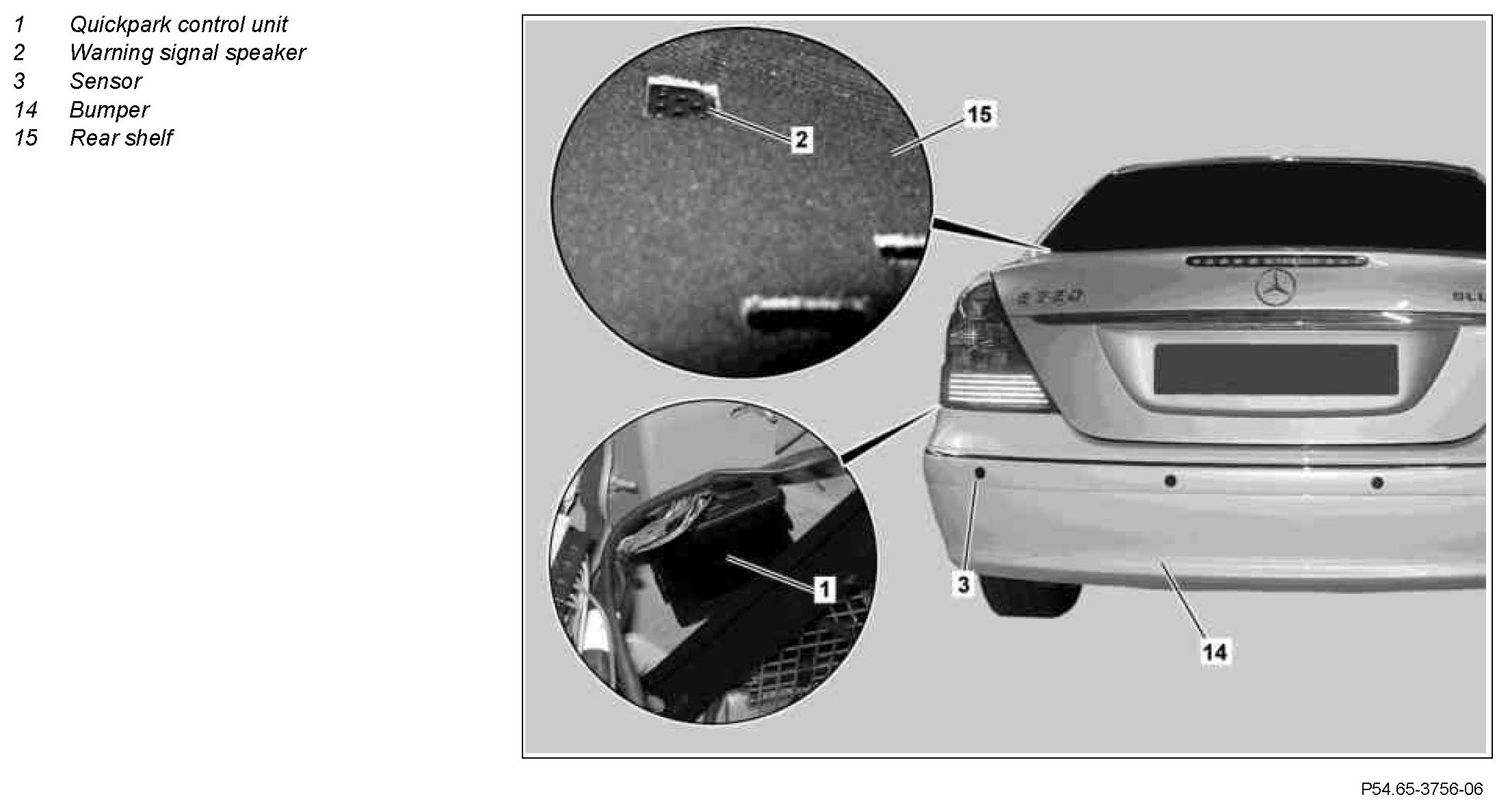

Component Identification:

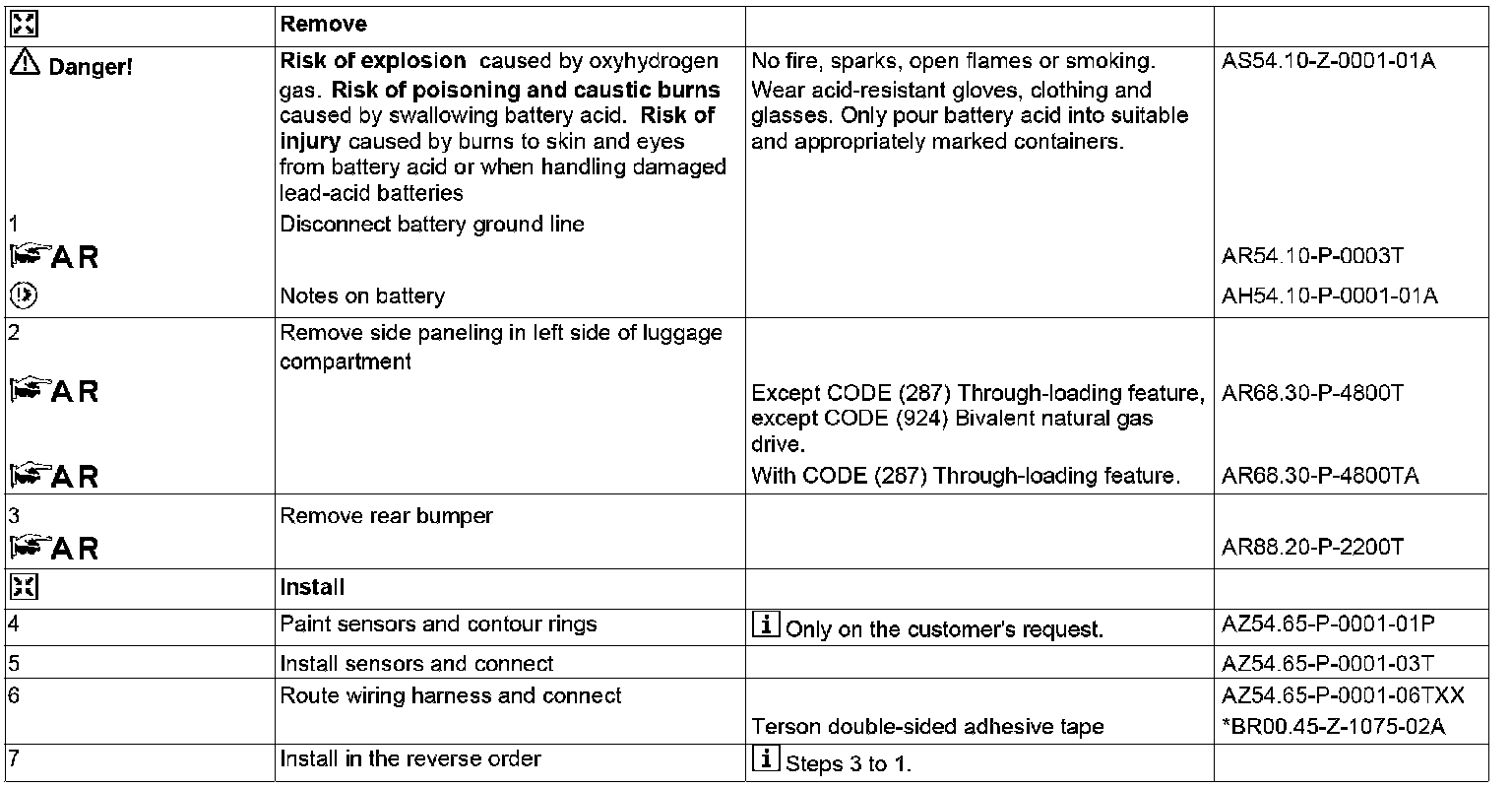

Steps 1-7:

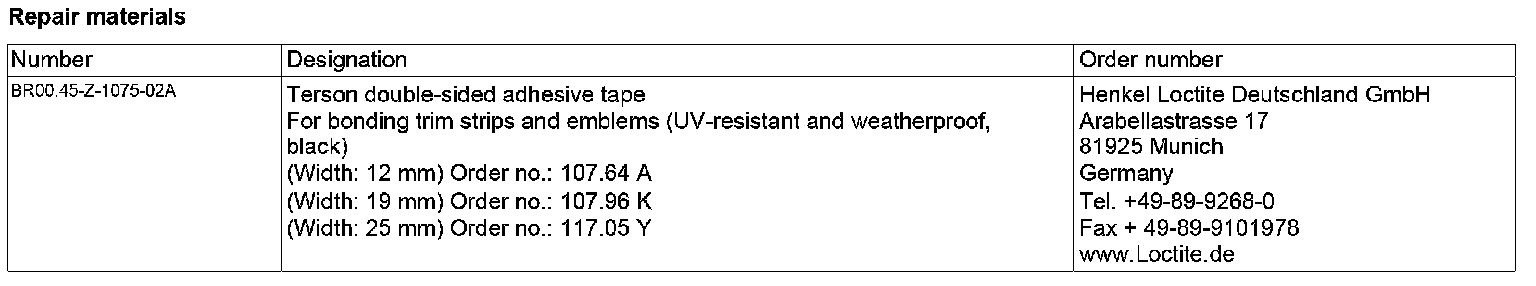

Repair Materials:

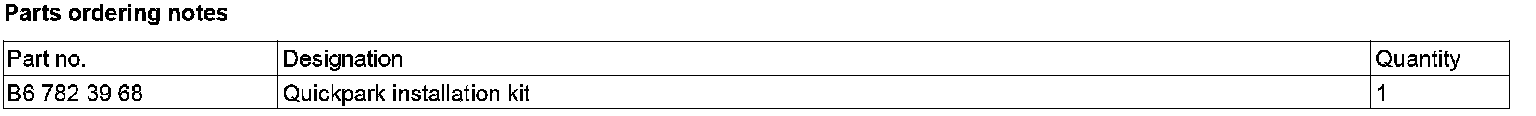

Parts Ordering Notes:
