Home >> Mercedes Benz >> 2006 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Antenna, Phone >> Service and Repair >> Removal and Replacement >> AR82.70-P-8951TE Remove/Install Antenna

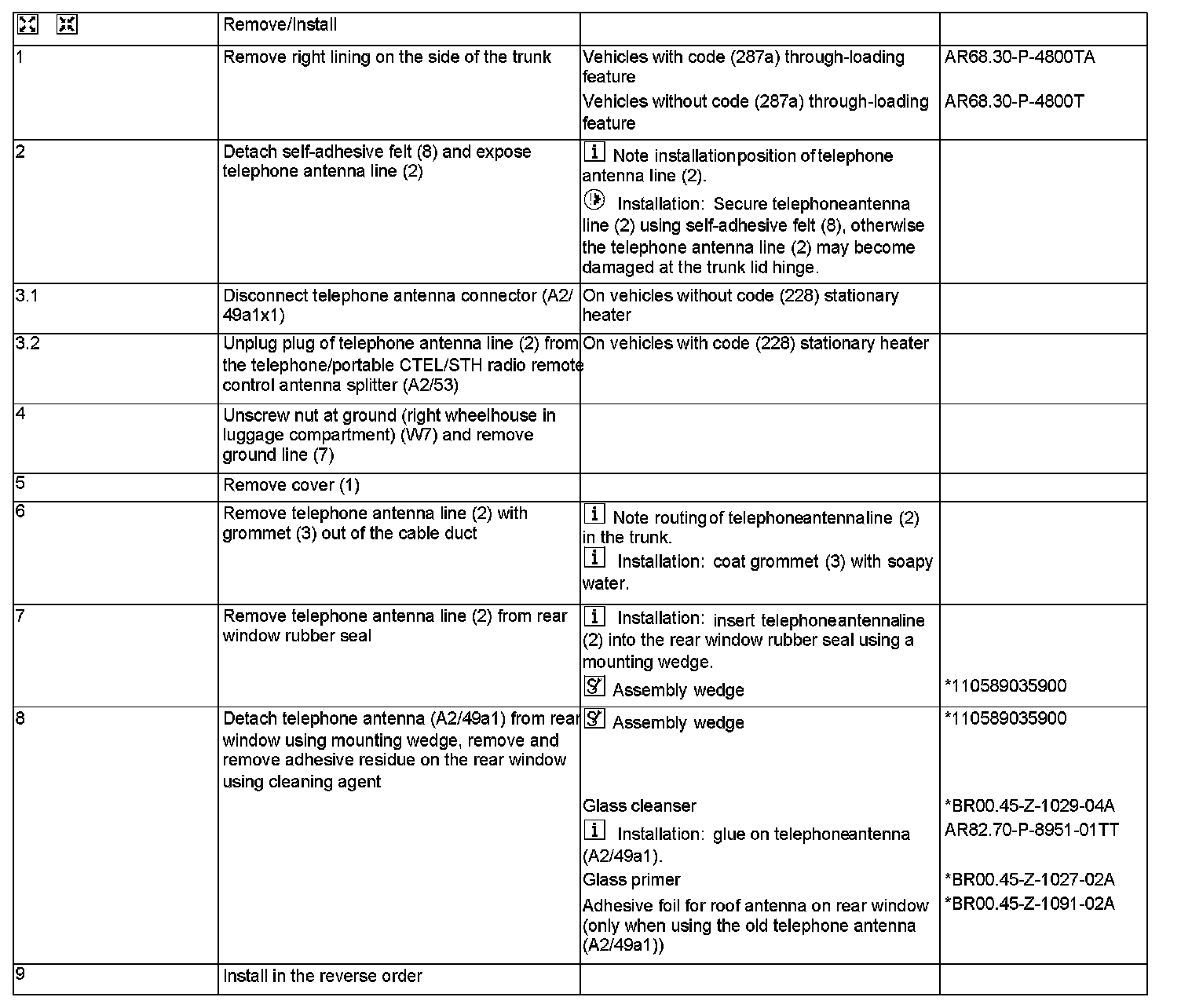

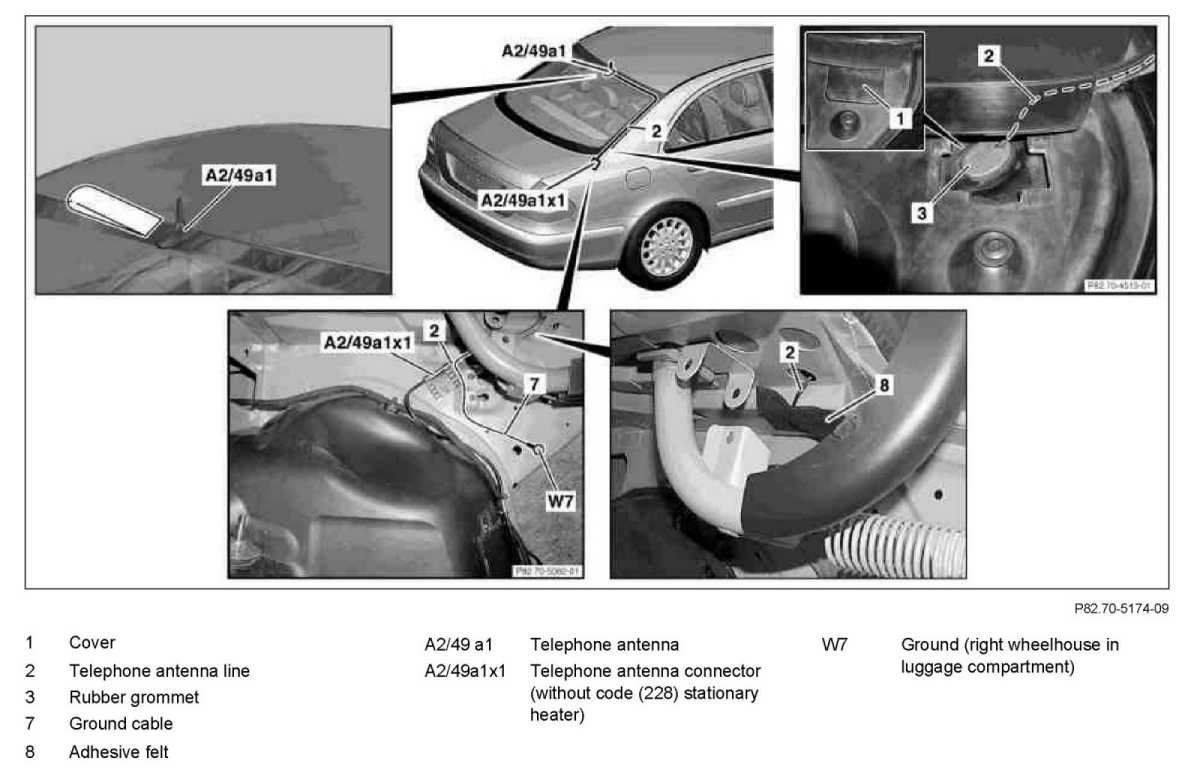

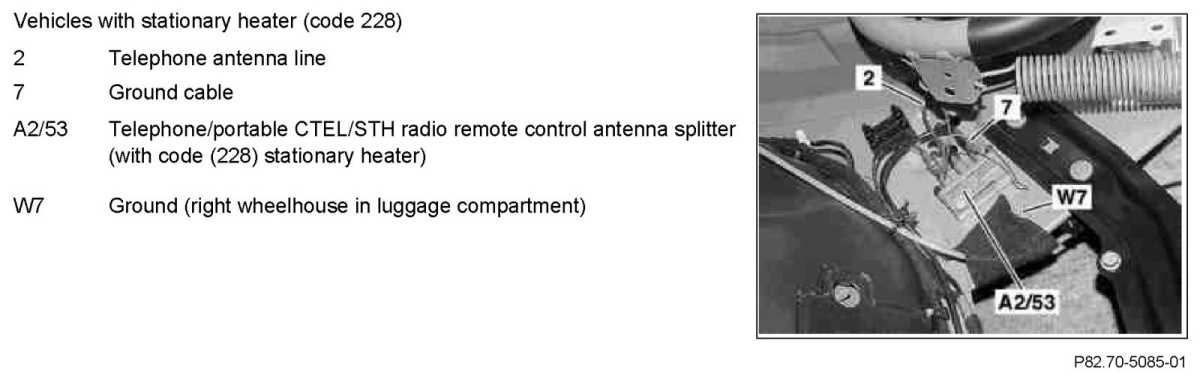

AR82.70-P-8951TE Remove/Install Antenna



AR82.70-P-8951TE Remove/Install Antenna
- with CODE (354) Telephone antenna (D and E nets) [up to 31.5.06]
- except CODE (521) MB Audio 50 radio USA (without Navigation)
- except CODE (525) MB Audio 50 APS radio
- except CODE (526) COMAND (without navigation)
- except CODE (527) COMAND APS (with navigation)
- except CODE (530) COMAND APS USA (with navigation system)
- with CODE (413) Panoramic sliding roof [as of 1.6.06]

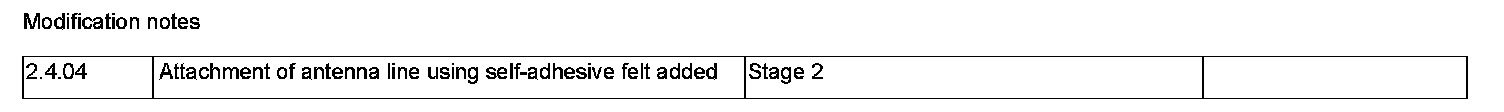

Modification Notes:
