AR82.70-P-8951-01TT Bond on Roof Antenna

AR82.70-P-8951-01TT Bond On Roof Antenna
- with CODE (354) Telephone antenna (D and E nets)
- except CODE (521) MB Audio 50 radio USA (without navigation)
- except CODE (525) MB Audio 50 APS radio

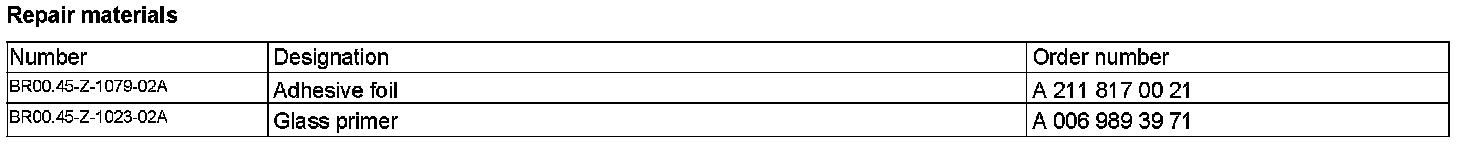

Repair Materials:

1 Treat bonding surface on rear window (hatched area) with glass primer.

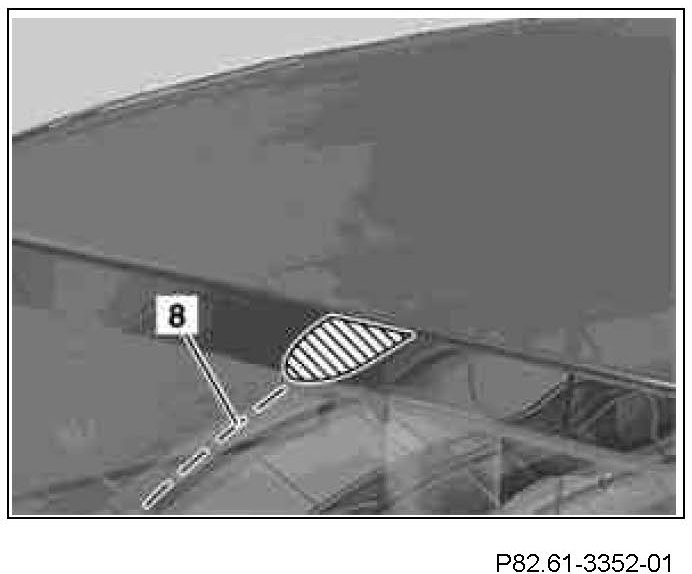

The bonding surface (hatched area) is located centrally above mark (8) on rear window. Observe flash-off time for glass primer.

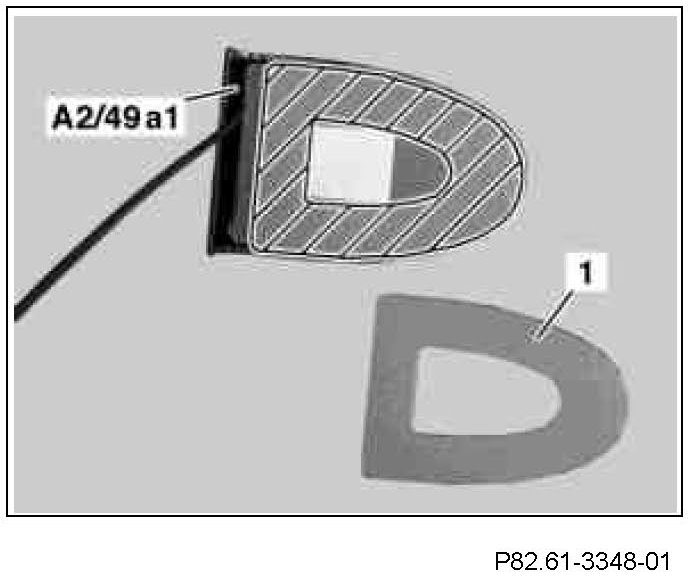

2.1 Remove adhesive residue from underside of telephone antenna (A2/49a1), clean bonding surface and glue on adhesive foil (1).

Only when re-using the old telephone antenna (A2/49a1). The bonding surface of telephone antenna (A2/49a1) must be free of oil and grease.







3 Remove covering foil from underside of telephone antenna (A2/49a1).

Glue on telephone antenna (A2/49a1) immediately after removing covering foil, otherwise proper bonding cannot be guaranteed.

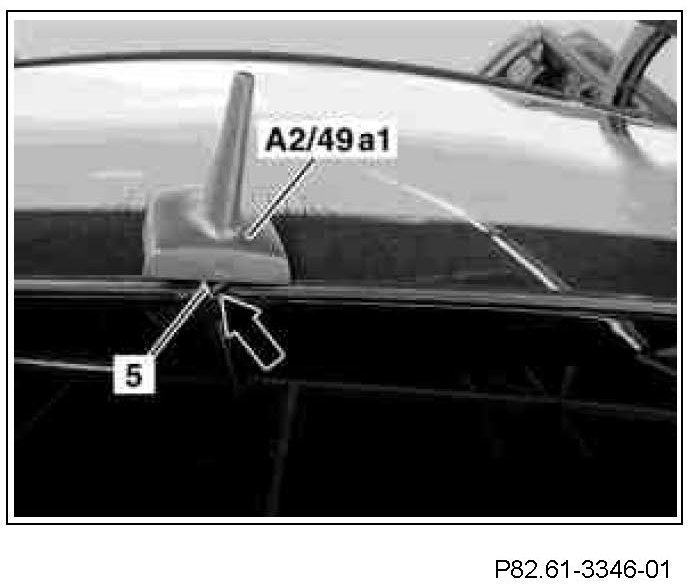

4 Glue telephone antenna (A2/49a1) on rear window and position antenna line (5) in cutout (arrow).

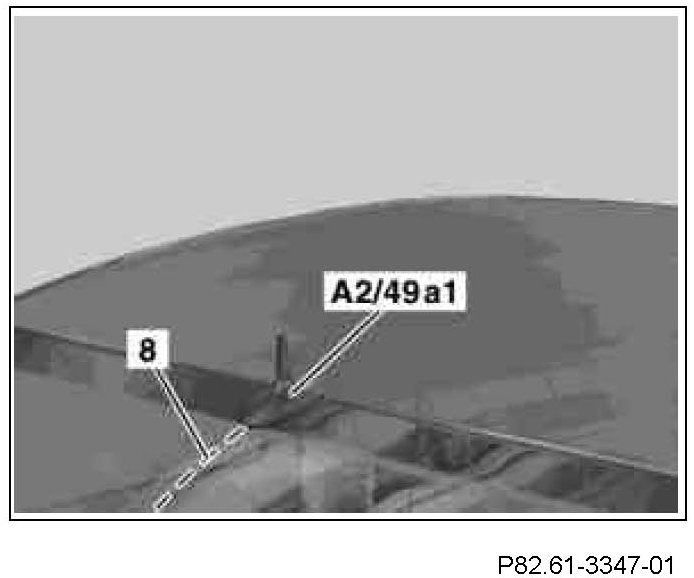

Position telephone antenna (A2/49a1) such that telephone antenna (A2/49a1) is in the center of mark (8).







5 Firmly press on telephone antenna (A2/49a1).

Apply load of approx. 20 kg for approx. 5 sec.
