AR82.70-P-8951-01T Bond on Roof Antenna

AR82.70-P-8951-01T Bond On Roof Antenna
- with CODE (521) MB Audio 50 radio USA (without navigation)
- with CODE (525) MB Audio 50 APS radio
- with CODE (526) COMAND (without navigation)

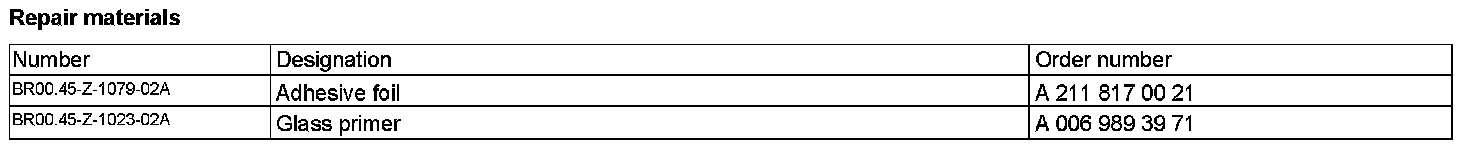

Repair Materials:

1 Treat bonding surface on rear window (hatched area) with glass primer.

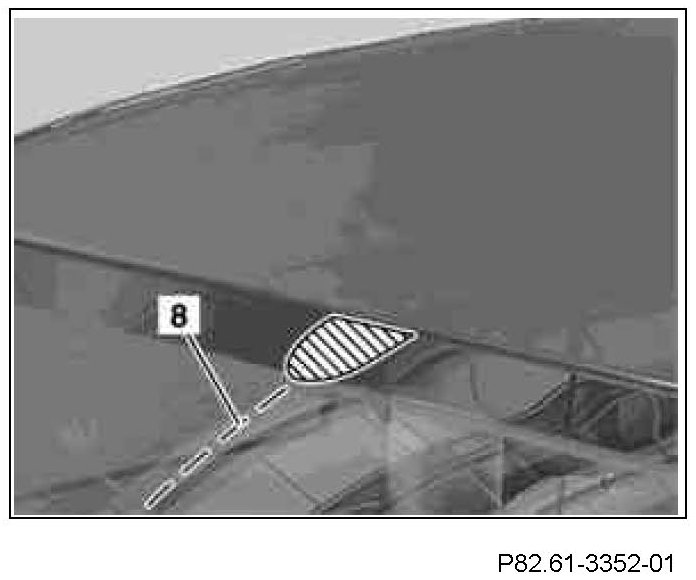

The bonding surface (hatched area) is located centrally above mark (8) on rear window. Observe flash-off time for glass primer.

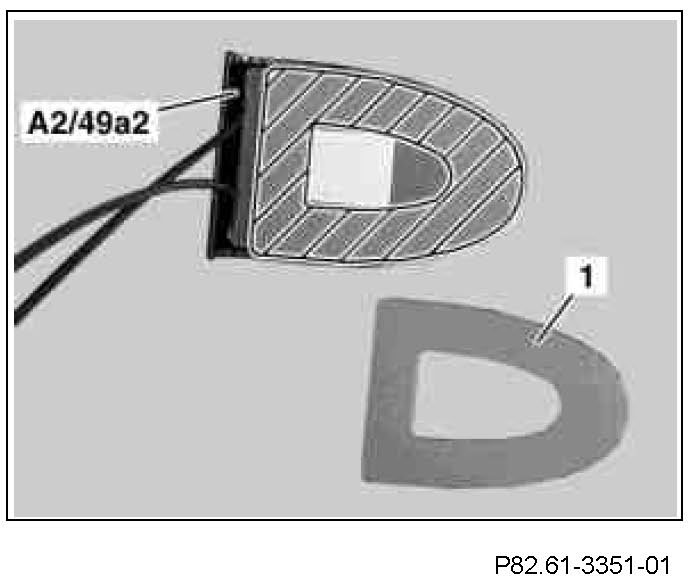

2.1 Remove adhesive residue from underside of GPS antenna (A2/49a2), clean bonding surface and glue on adhesive foil (1).

Only when re-using the old GPS antenna (A2/49a2). The bonding surface of the GPS antenna (A2/49a2) must be free of oil and grease.







3 Remove covering foil from underside of GPS antenna (A2/49a2).

Glue on GPS antenna (A2/49a2) immediately after removing covering foil, otherwise proper bonding cannot be guaranteed.

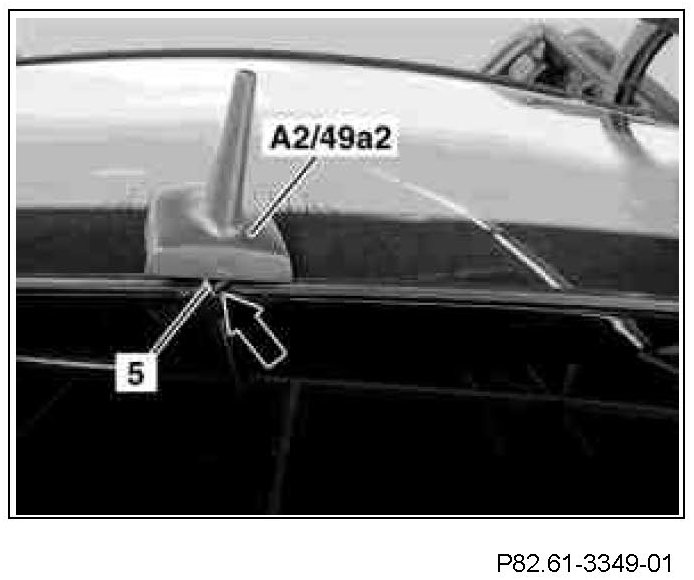

4 Glue GPS antenna (A2/49a2) on rear window and position antenna lines (5) in cutout (arrow).

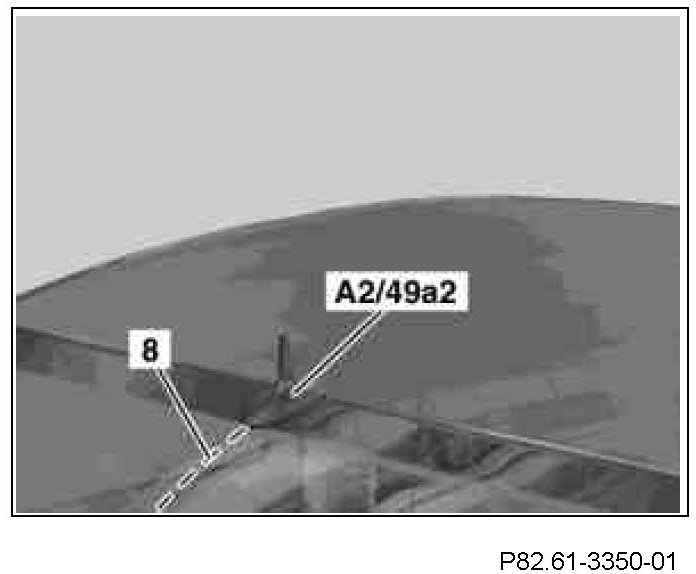

Position GPS antenna (A2/49a2) such that the GPS antenna (A2/49a2) is in the center of mark (8).







5 Firmly press on the GPS antenna (A2/49a2).

Apply load of approx. 20 kg for approx. 5 sec.
