GF82.62-P-4105TJ Telephone Antenna, Location/Task



GF82.62-P-4105TJ Telephone Antenna, Location/task
- with CODE (529) HIGH Class Japan

Component Identification:

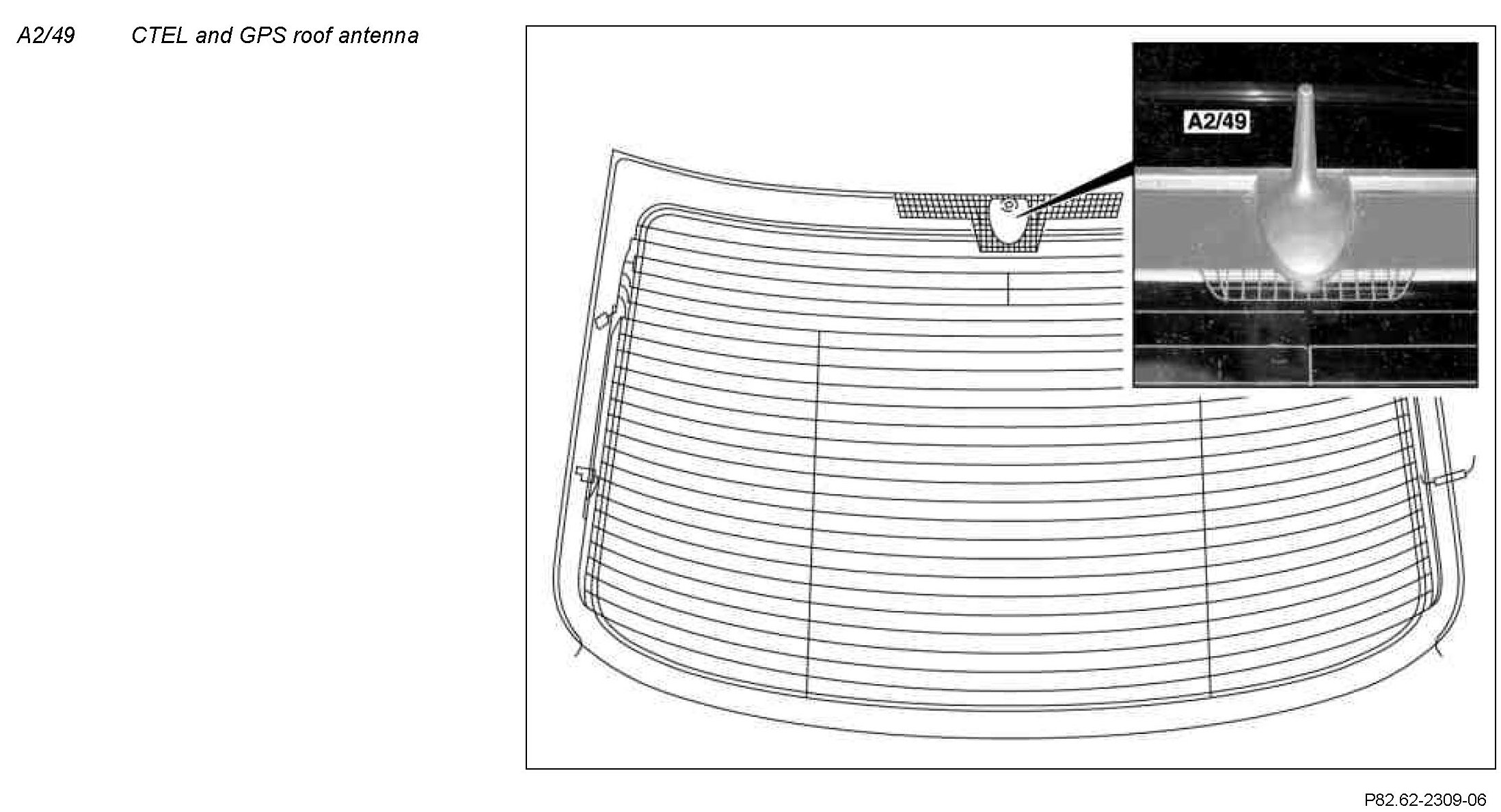

With E-call or navigation the following antennas are integrated in the telephone and GPS roof antenna (A2/49):

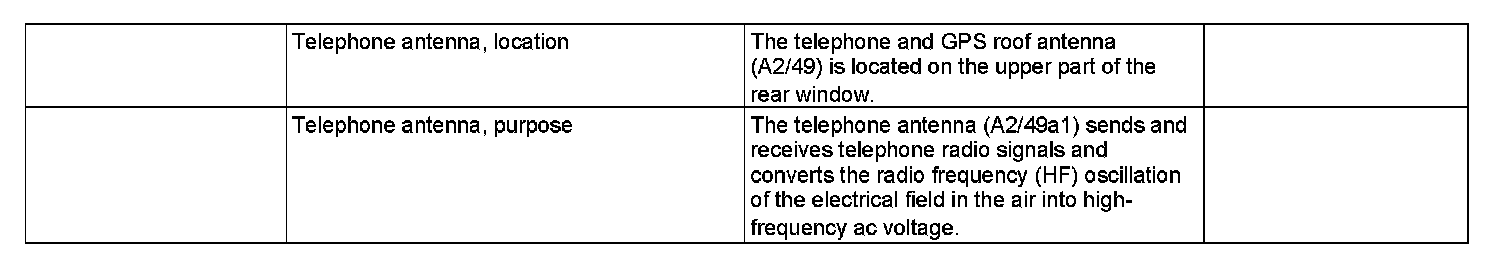

^ Telephone antenna (A2/49a1)
^ GPS antenna (A2/49a2)

With standard equipment only the telephone antenna (A2/49a1) is needed.
