AN82.61-P-7474-04TS Retrofit Antenna For Global Positioning System (GPS)

AN82.61-P-7474-04TS Retrofit Antenna For Global Positioning System (GPS)
- except CODE (924) Bivalent natural gas drive
- except CODE (596) Heat-insulating glass

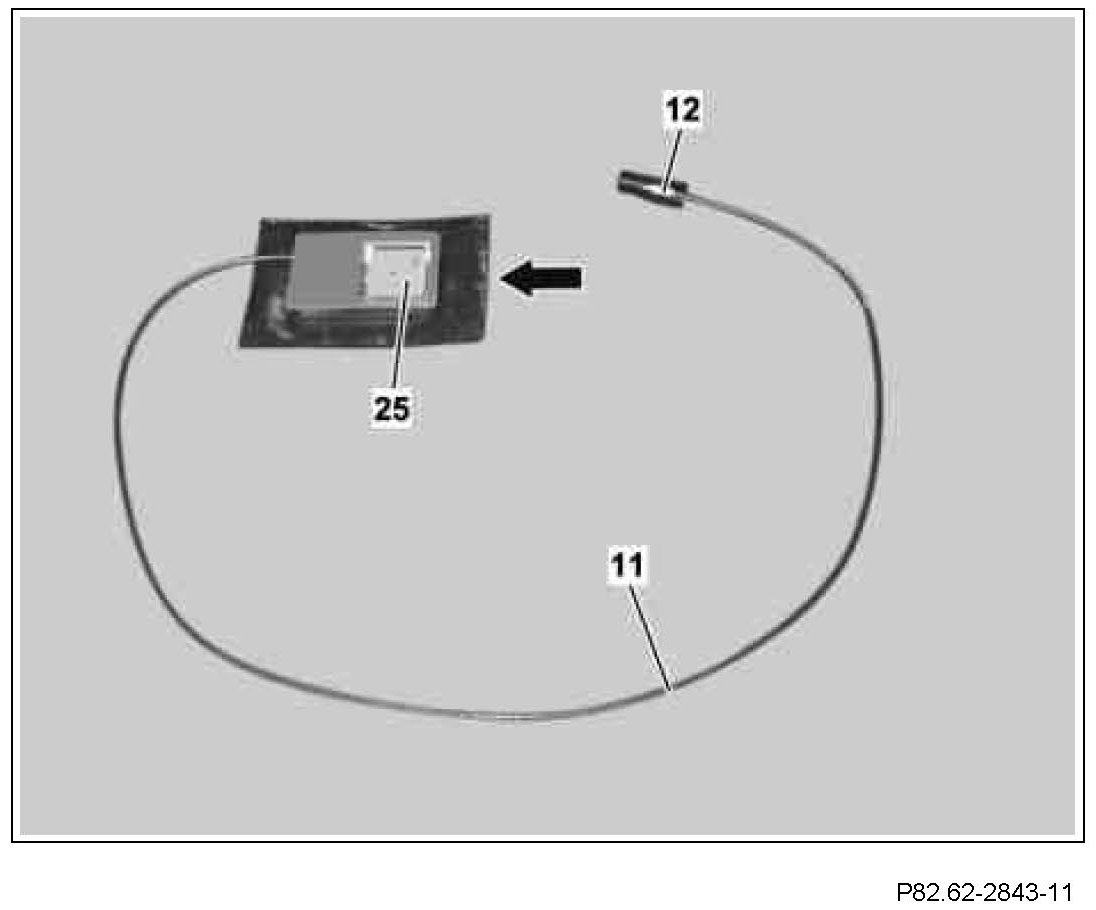

1 Stick felt tape as shown in the picture (see arrow) onto underside of GPS antenna (25).

The underside of the GPS antenna (25) does not have any covering foil. The protruding felt tape is used to additionally fasten the GPS antenna (25).

2 Wrap felt tape around GPS antenna line (11).

The GPS antenna coupling (12) of the GPS antenna line (11) must not have felt tape wrapped around it.







3 Remove the covering foil on the upper side of the GPS antenna (25) and stick the GPS antenna (25) into the instrument cluster cover opening (see picture) and then additionally fasten in place by wrapping with excess felt tape.

The opening of the GPS antenna (25) must face towards the top side of the dashboard. The antenna line of the GPS antenna (25) faces towards the passenger side.

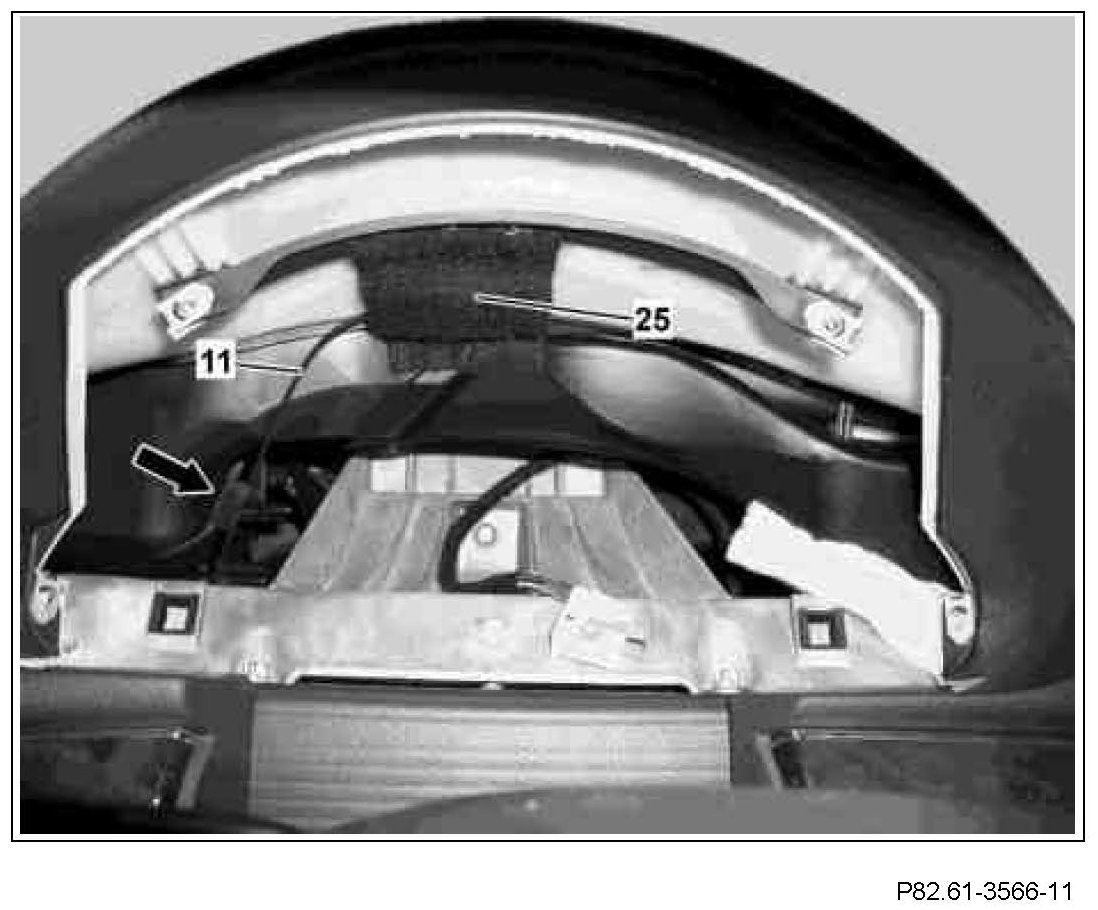

4 Route the GPS antenna line (11) of the GPS antenna (25) as shown in the picture from the instrument panel into the center console and fasten in place using felt tape (see arrow).

Component Identification:

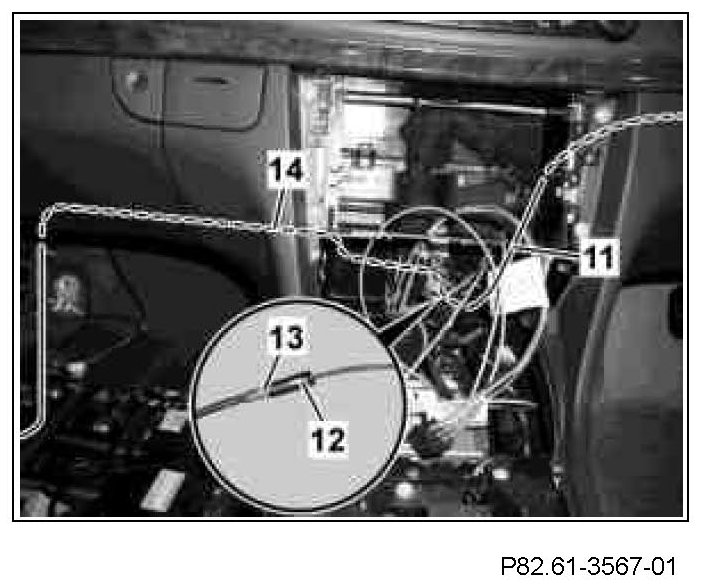

5 Insert GPS antenna extension line (14) into front passenger footwell, along the on-board wiring harnesses into the center console and connect the GPS antenna plug (13) to the GPS antenna coupling (12) of the GPS antenna line (11).

The GPS antenna line (11) and GPS antenna extension line (14) are fastened later together with the auto pilot system wiring harness along the on-board wiring harnesses and such that they do not chafe or make any noise.

6 Route GPS antenna extension line (14) in the left cable duct up to the area of the left rear seat and fasten in place such that it does not chafe or make any noise.

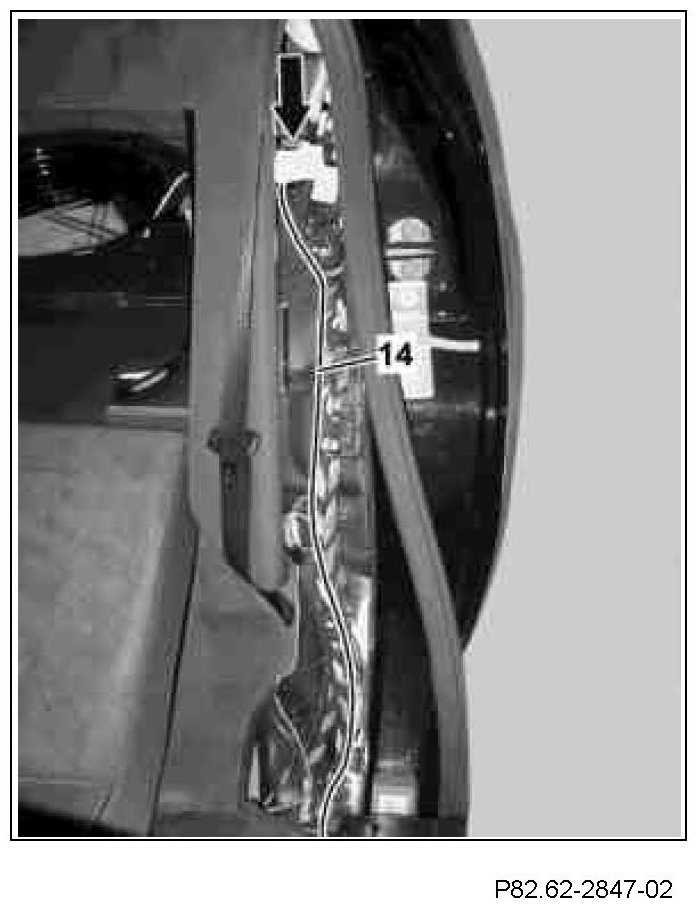

7 Route GPS antenna extension line (14) as shown in the picture along on-board wiring harnesses into luggage compartment (see arrow) and fasten in place such that it does not chafe or make any noise.

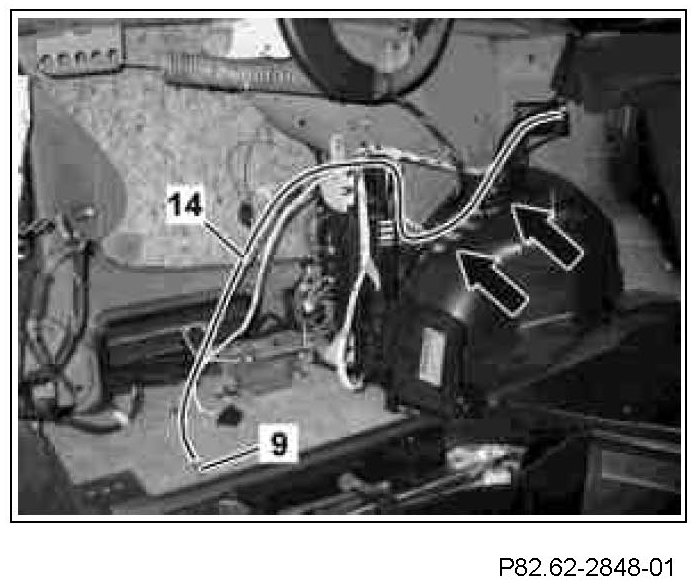

8 Route GPS antenna extension line (14) as shown in the picture in the luggage compartment and strap down excess length of GPS antenna extension line (14) to on-board wiring harnesses (see arrows).

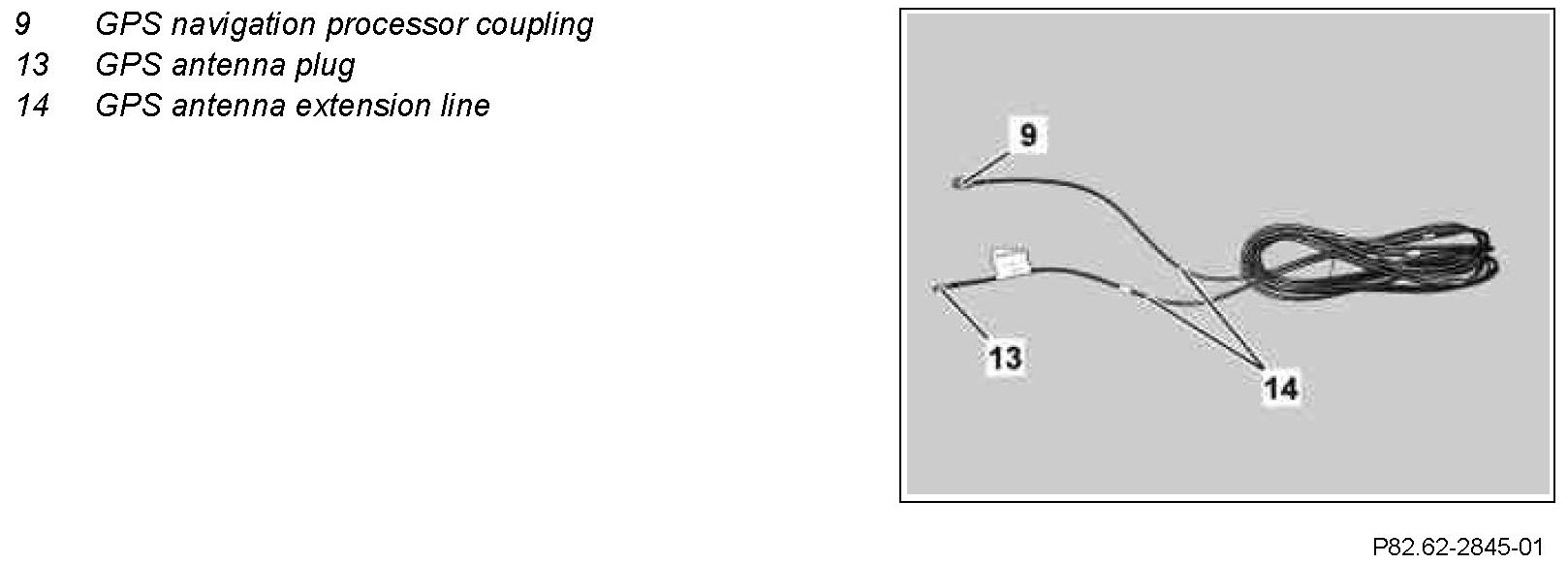

The GPS navigation processor coupling (9) of the GPS antenna extension line (14) is connected to the navigation processor later.
