AN82.85-P-0003TS Retrofit Comand With APS Navigation System

AN82.85-P-0003TS Retrofit COMAND With APS Navigation System
- except CODE (924) Bivalent natural gas drive
- except CODE (596) Heat-insulating glass
- Vehicles without bass module speaker (H4/17) with Audio 20 CD radio
- Valid for Singapore only

Component Identification:

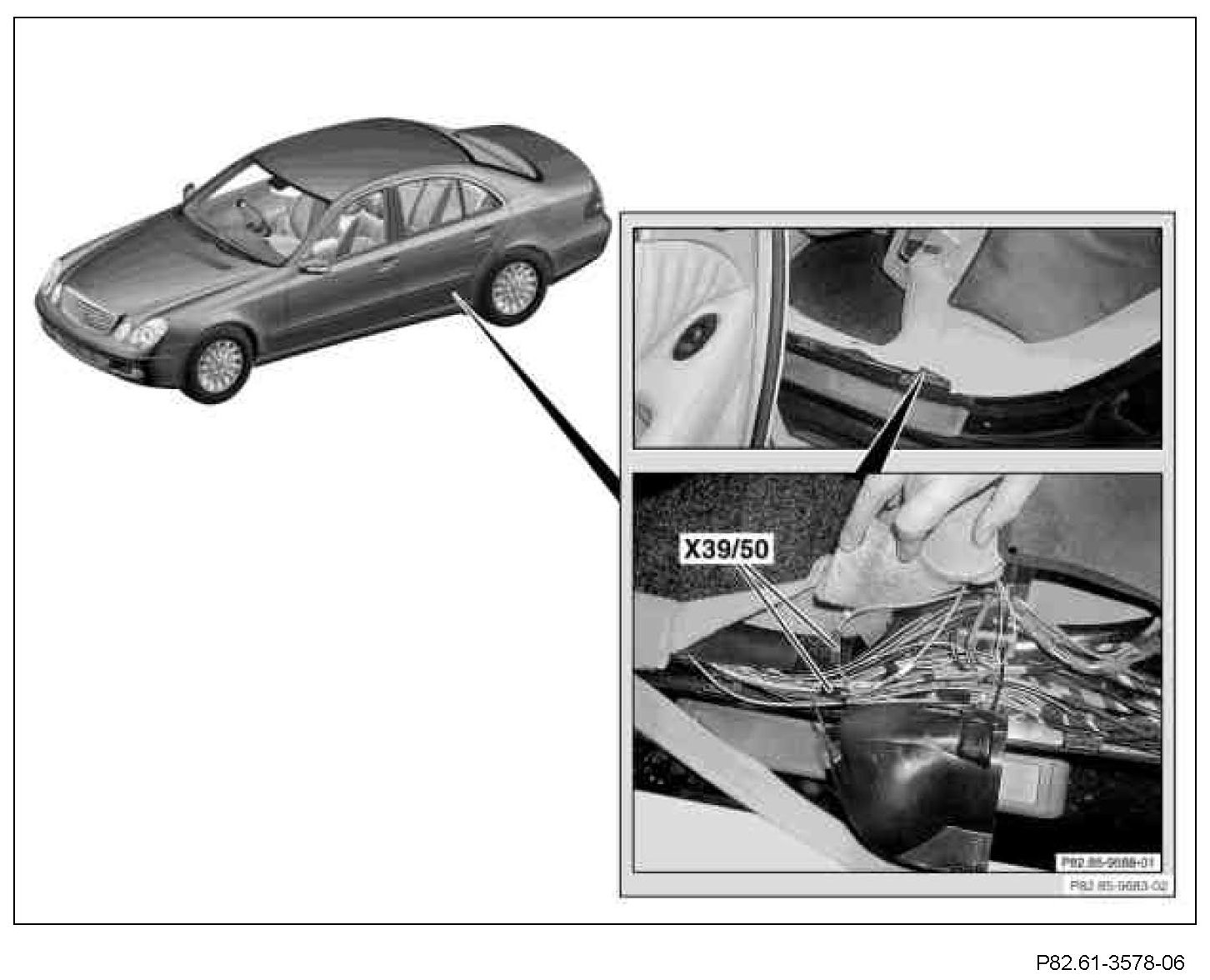

The fiber optic cable connector (MOST) (X39/50) is located in the rear cable duct, left of to the rear bench seat.

To perform step 18, check whether the fiber optic cable connector (MOST) (X39/50) is installed.

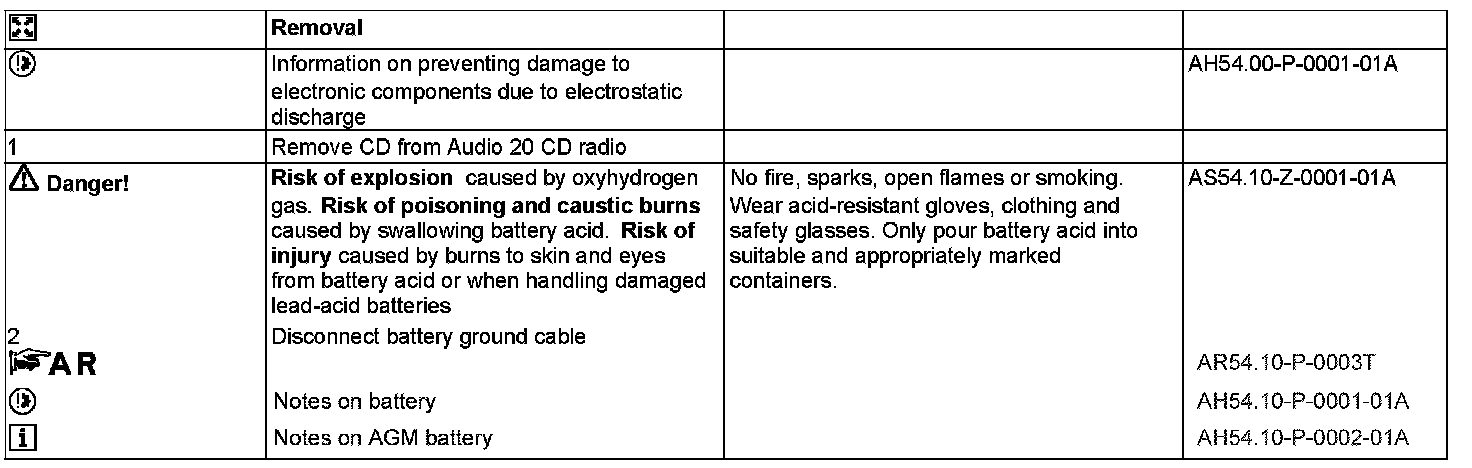

Steps 1 - 2:

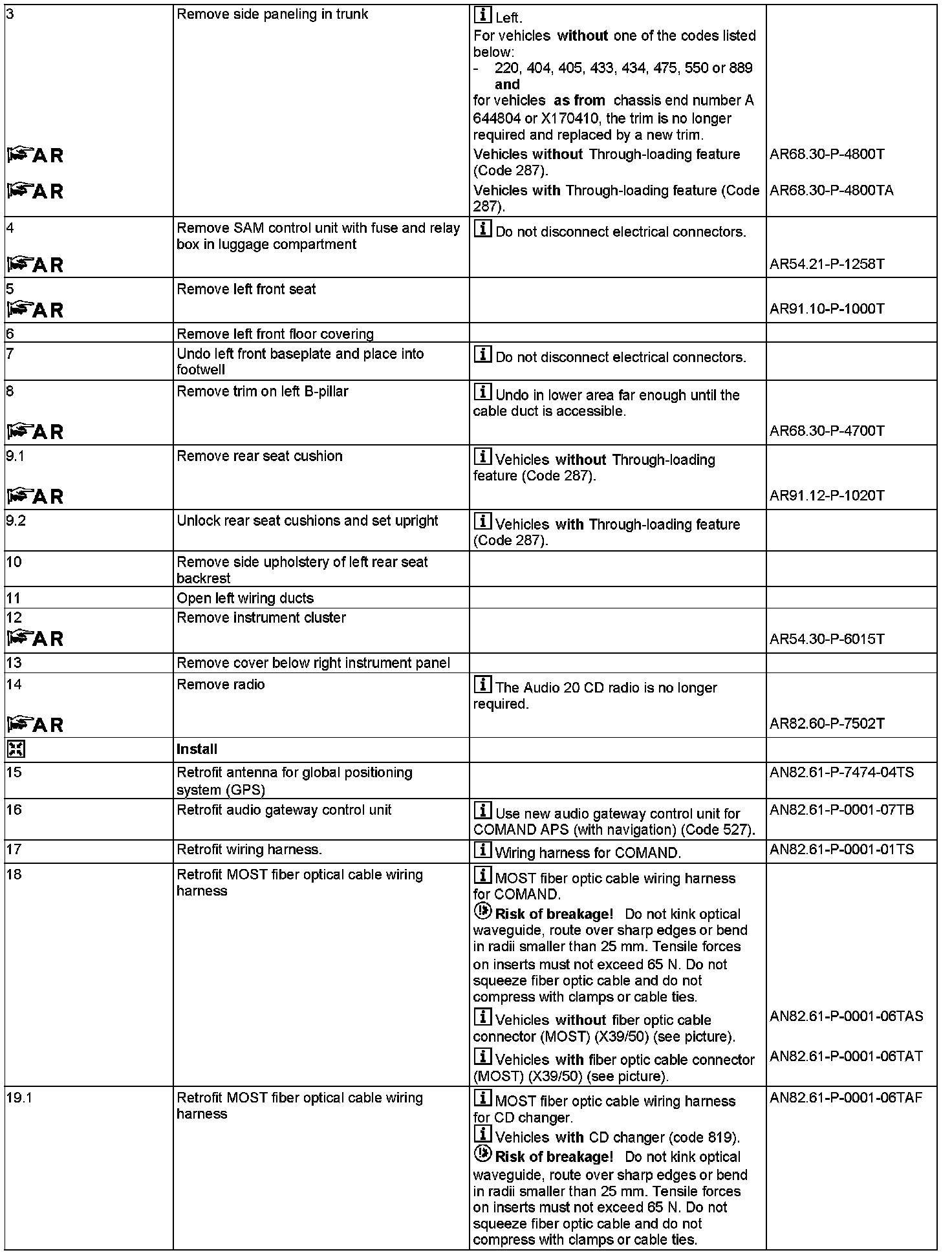

Steps 3 - 19.1:

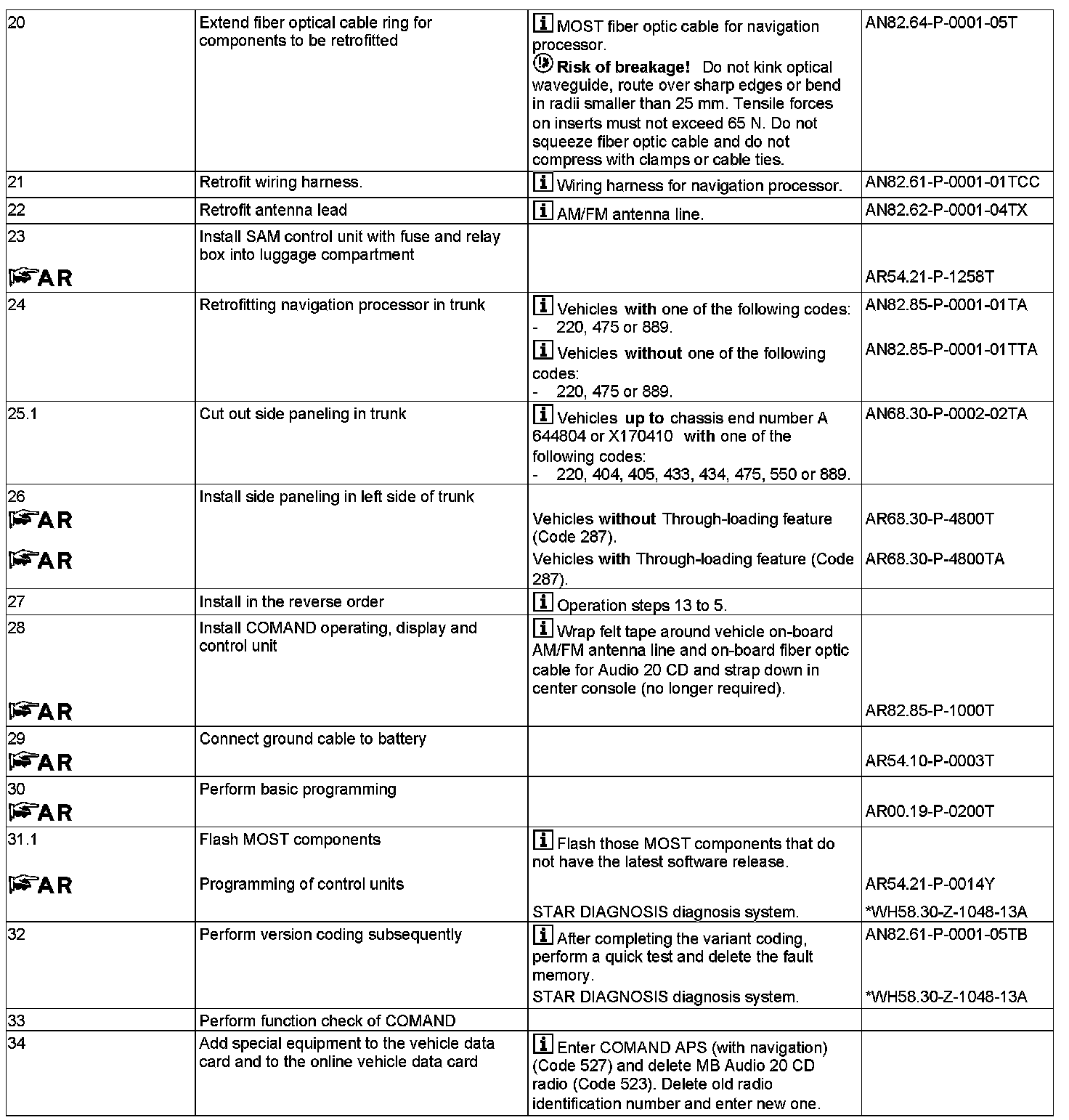

Steps 20 - 34:

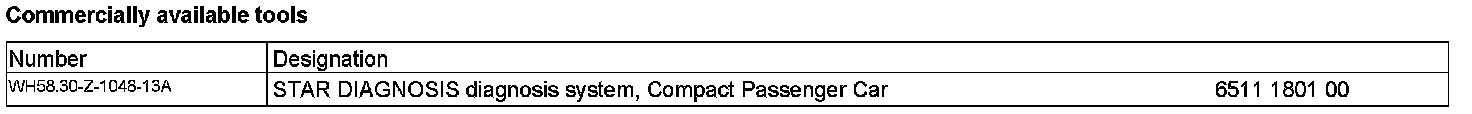

Commercially Available Tools:

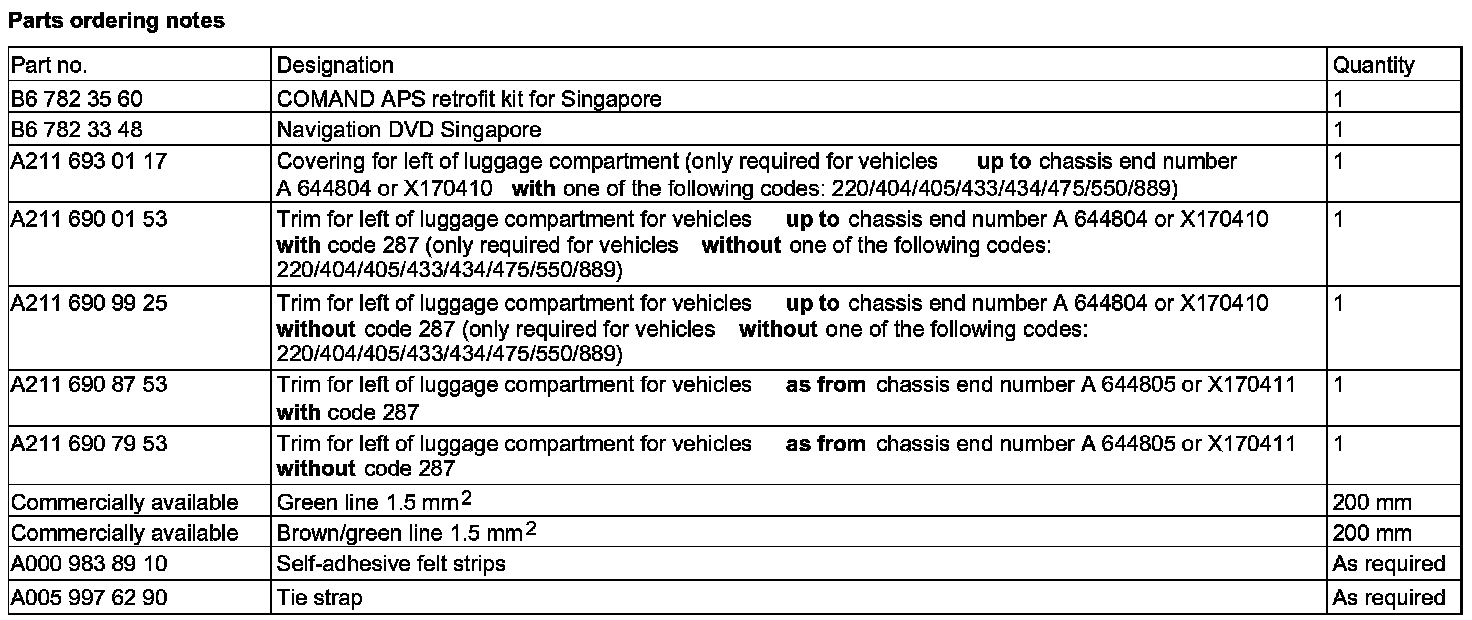

Parts Ordering Notes:
