AN82.85-P-0003TC Retrofit Comand With APS Navigation System

AN82.85-P-0003TC Retrofit COMAND With APS Navigation System
- except CODE (924) Bivalent natural gas drive
- except CODE (494) USA version
- except CODE (498) Japan version
- Vehicles as of model year 2003 (code 803) with Audio 20 CD radio

Component Identification:

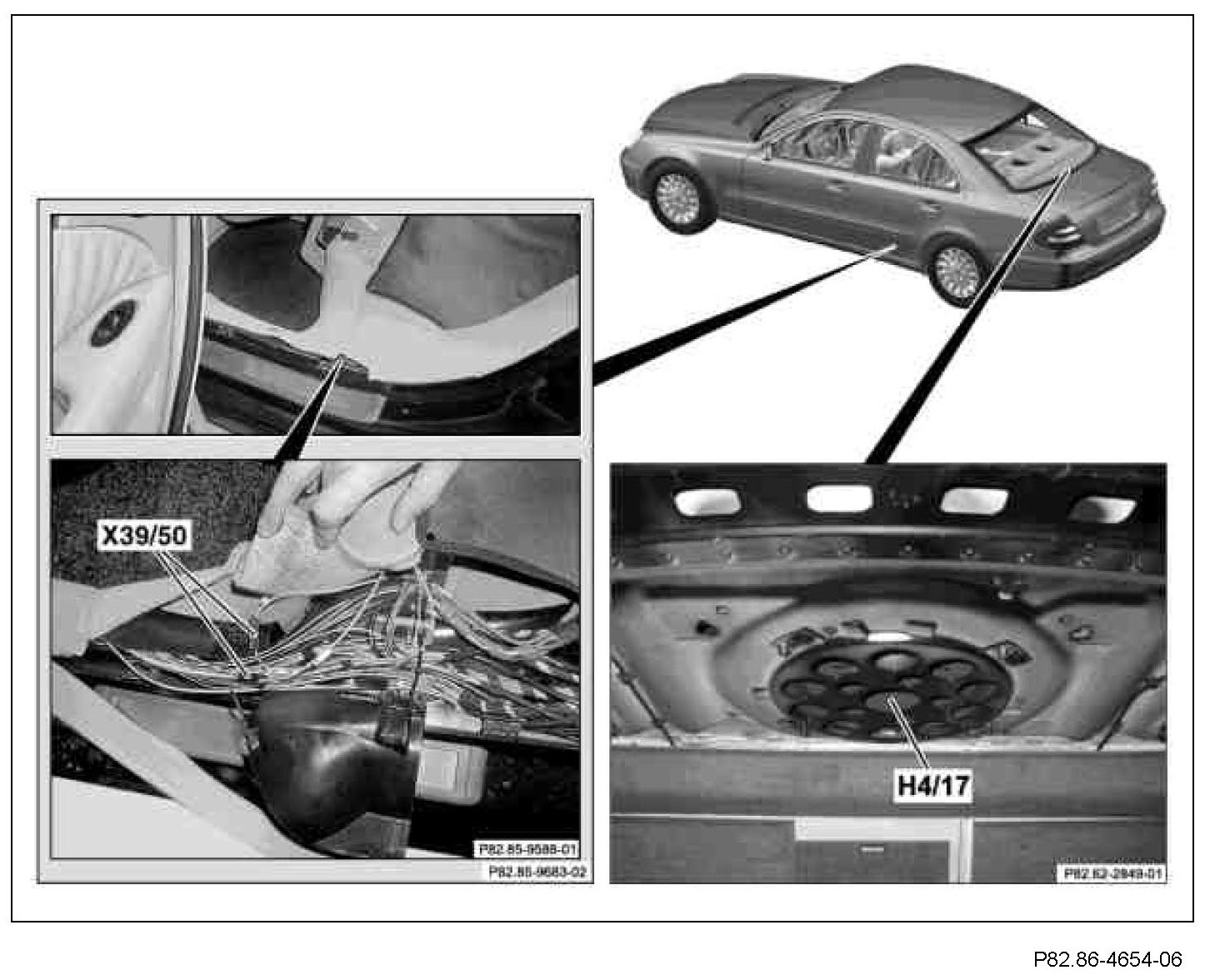

The bass module speaker (H4/17) can be seen from the luggage compartment under the rear shelf.
To perform steps 17.1 and 23, check whether the bass module speaker (H4/17) i installed.

The fiber optic cable connector (MOST) (X39/50) is located in the rear cable duct, left of to the rear bench seat.
To perform step 24, check whether the fiber optic cable connector (MOST) (X39/50) is installed.

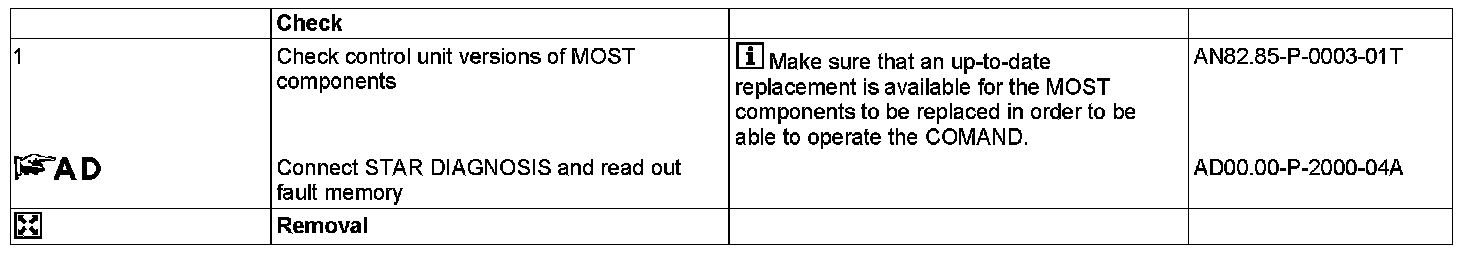

Steps 1:

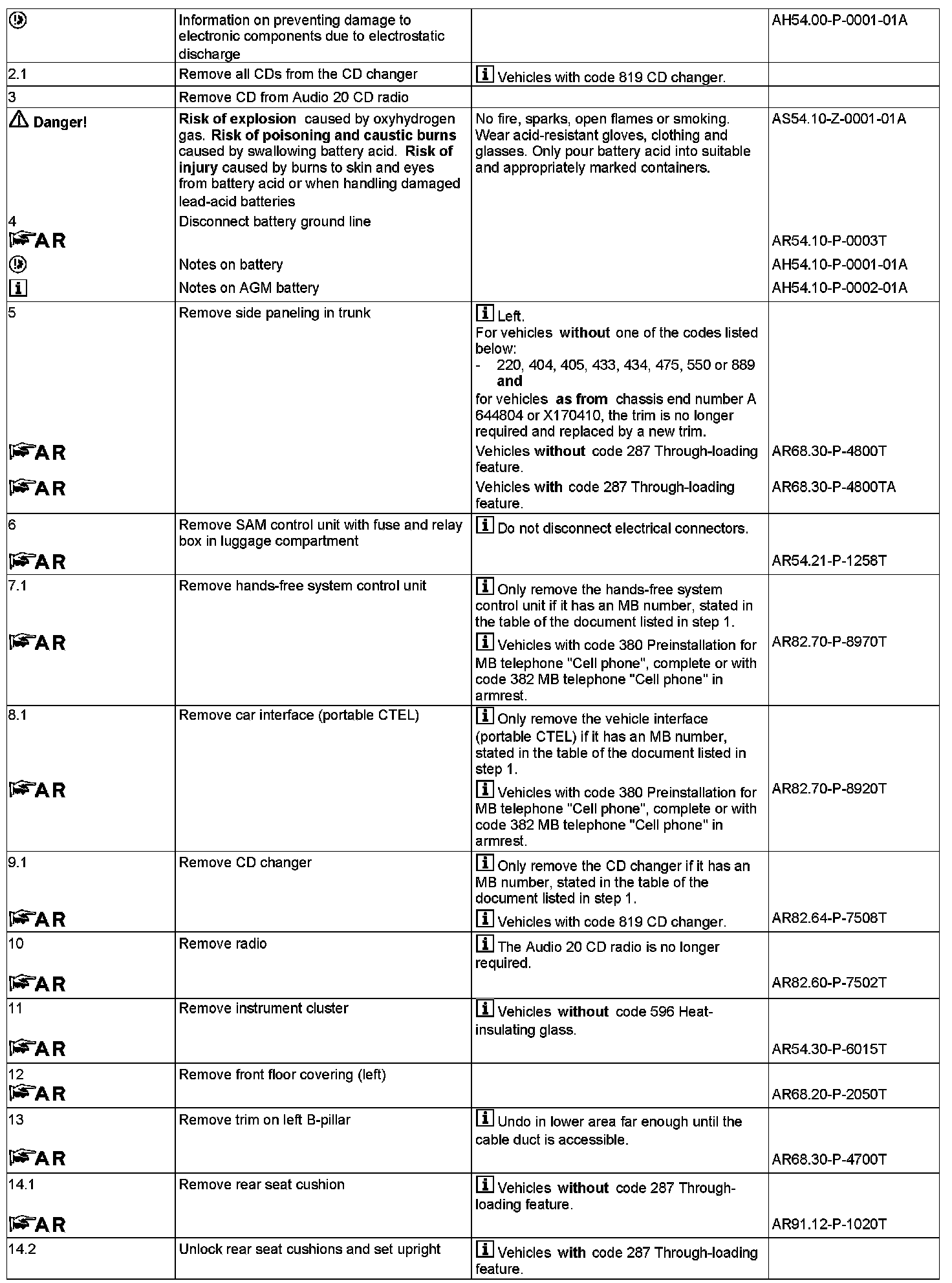

Steps 2.1 - 14.2:

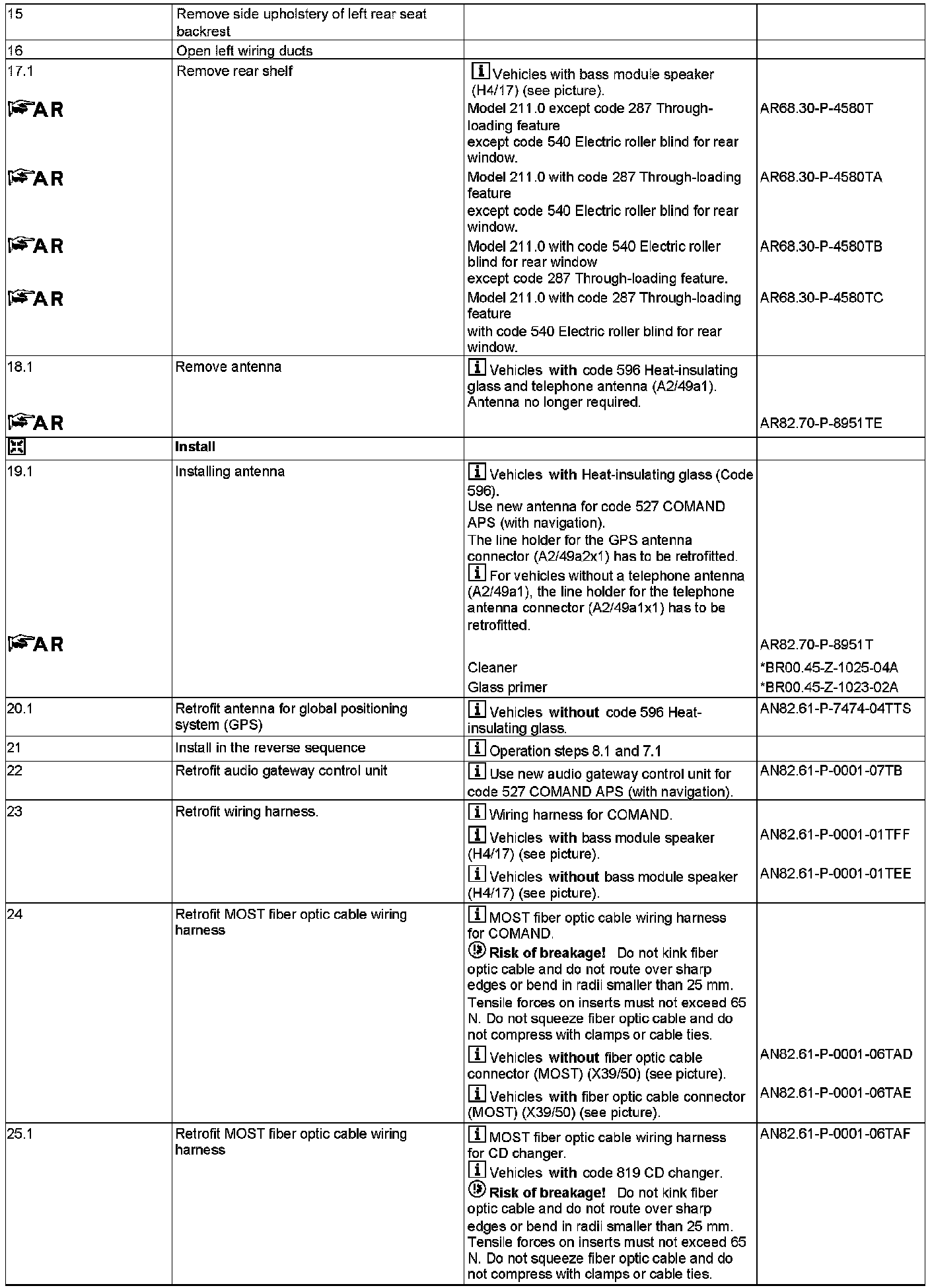

Steps 15 - 25.1:

Steps 26 - 41:

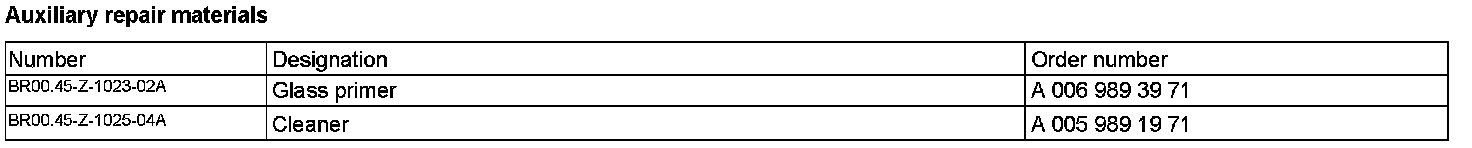

Auxiliary Repair Materials:

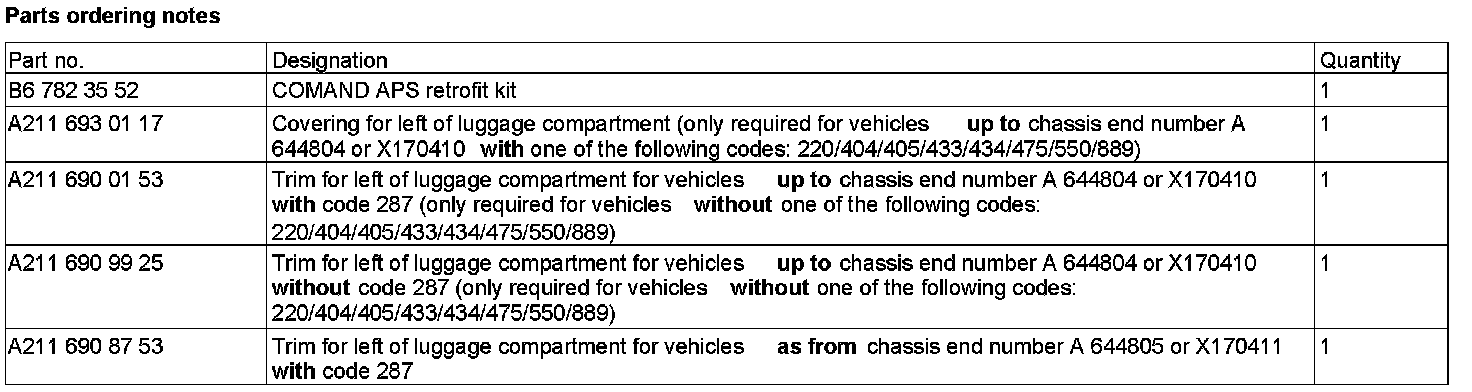

Parts Ordering Notes:

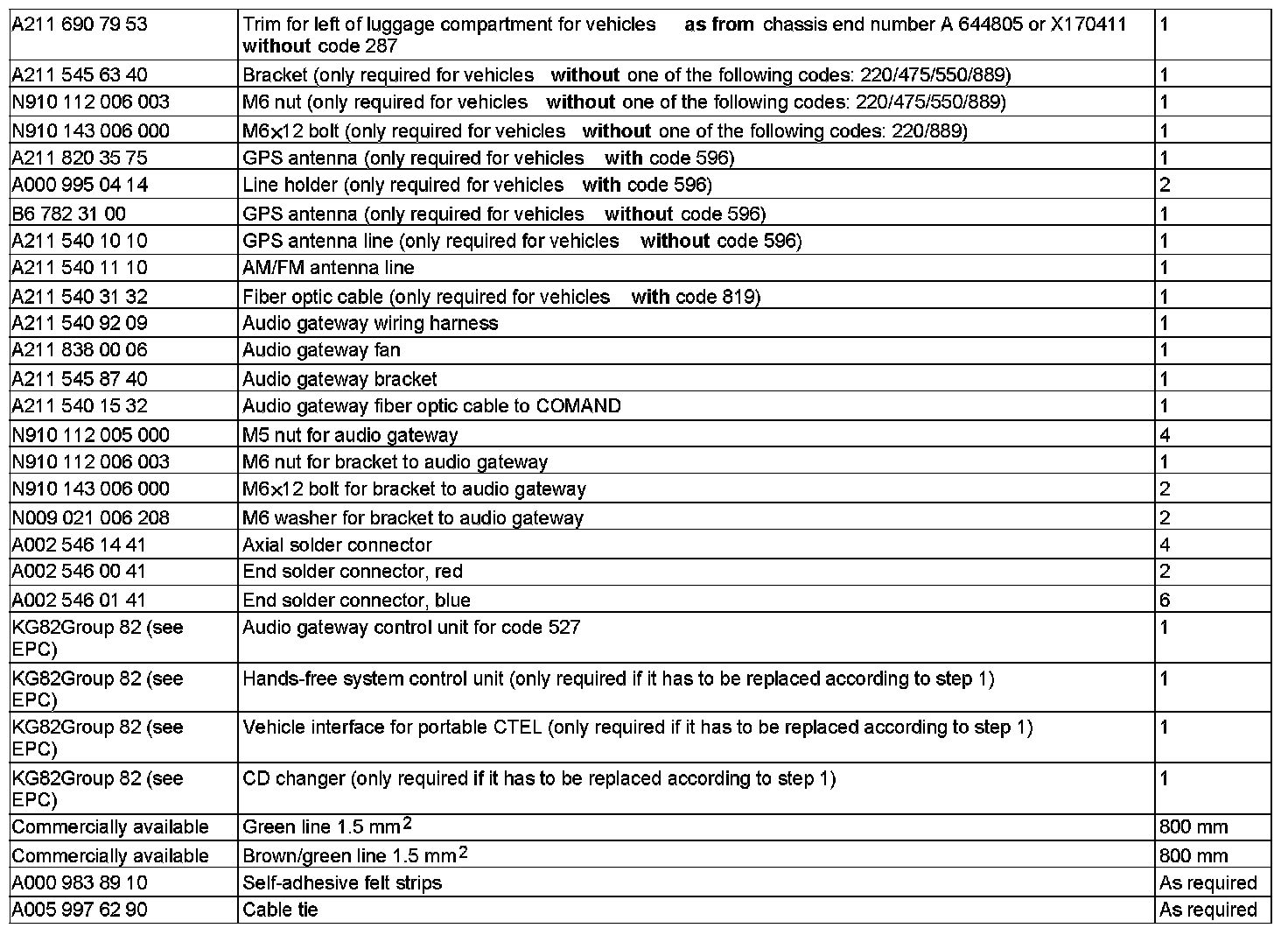

Parts Ordering Notes:
