AN82.85-P-0003T Retrofit Comand With APS Navigation System

AN82.85-P-0003T Retrofit COMAND With APS Navigation System
- with CODE (525) MB Audio 50 APS radio
- except CODE (924) Bivalent natural gas drive
- except CODE (494) USA version
- except CODE (498) Japan version

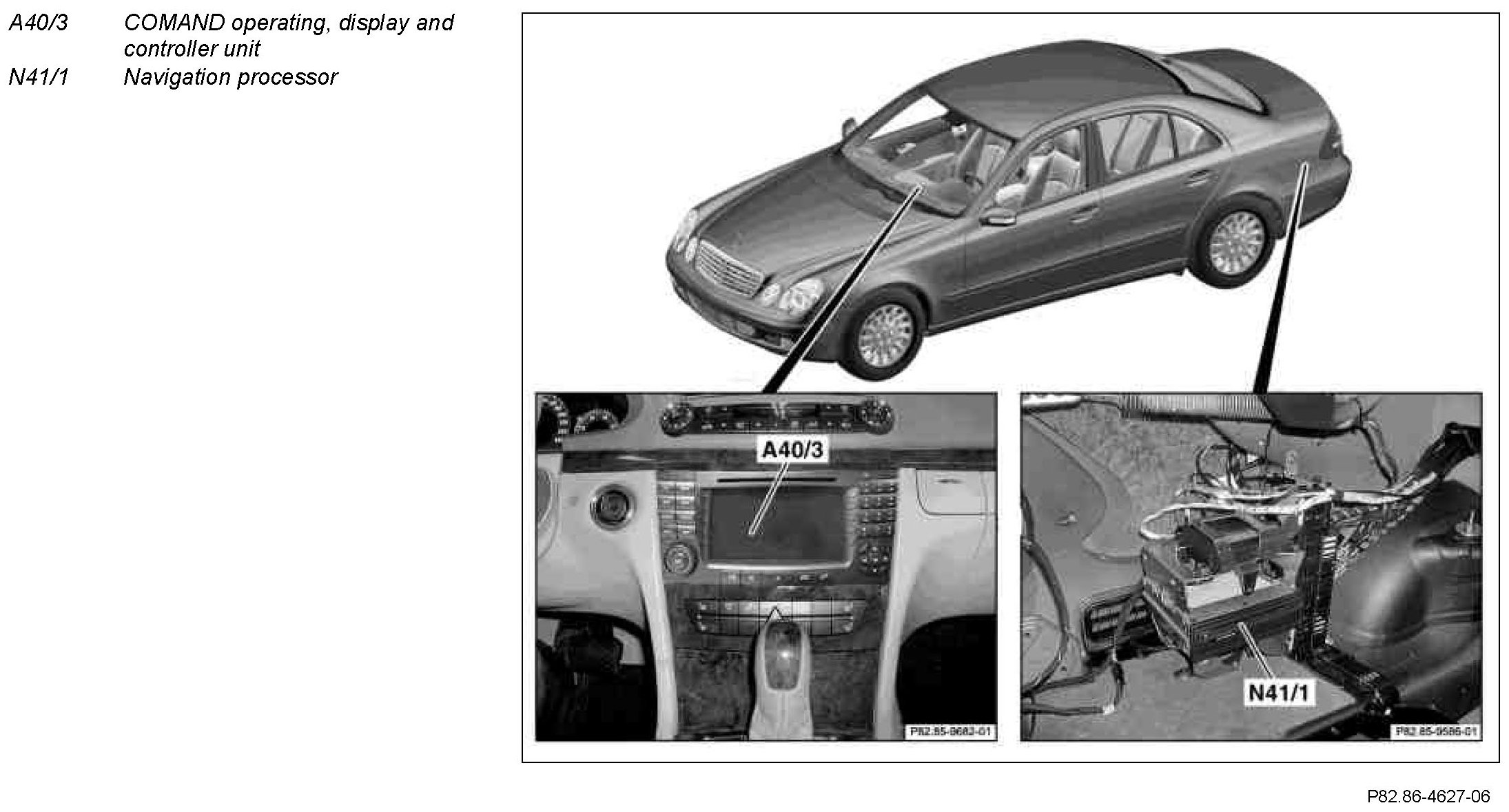

Component Identification:

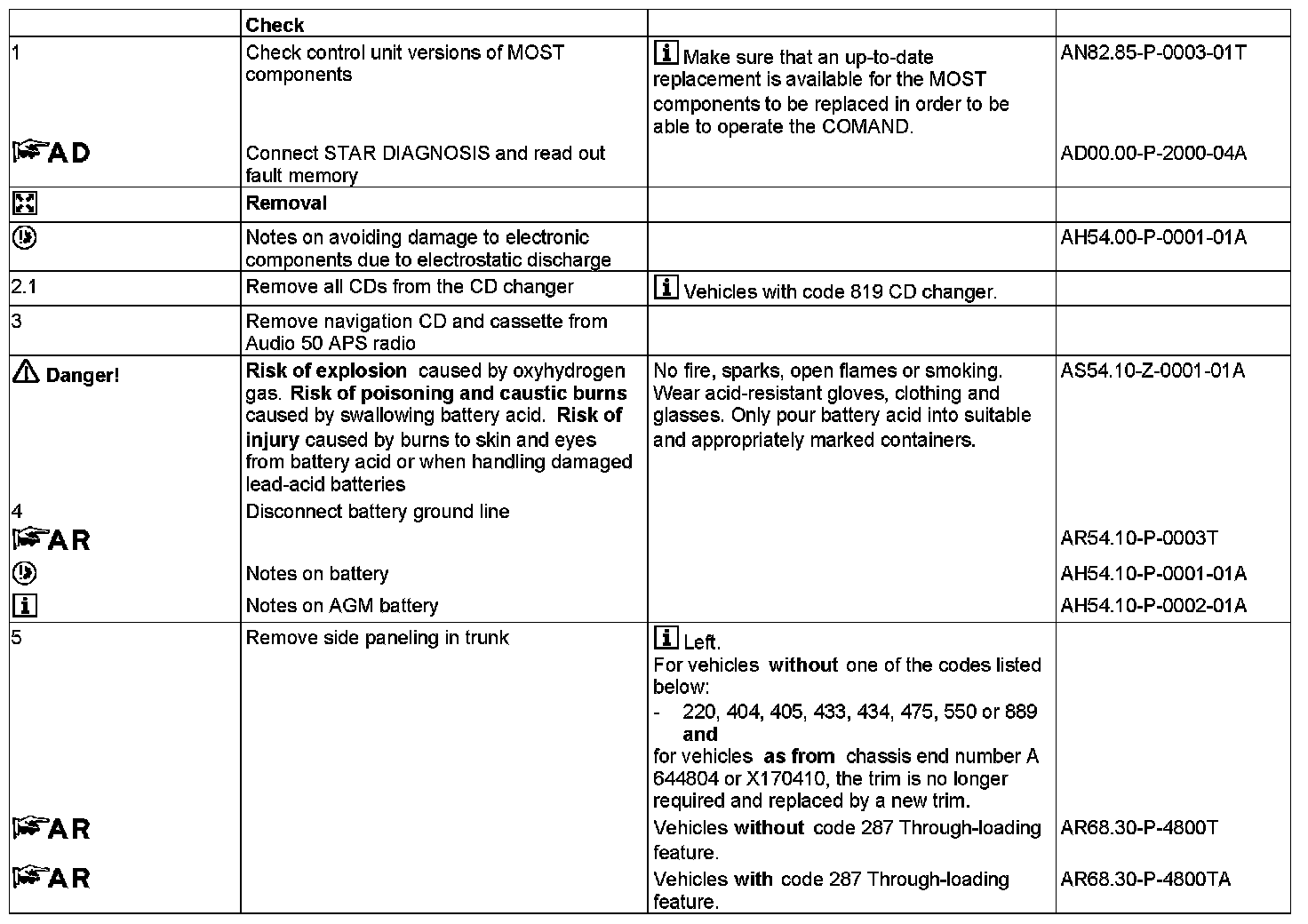

Steps 1 - 5:

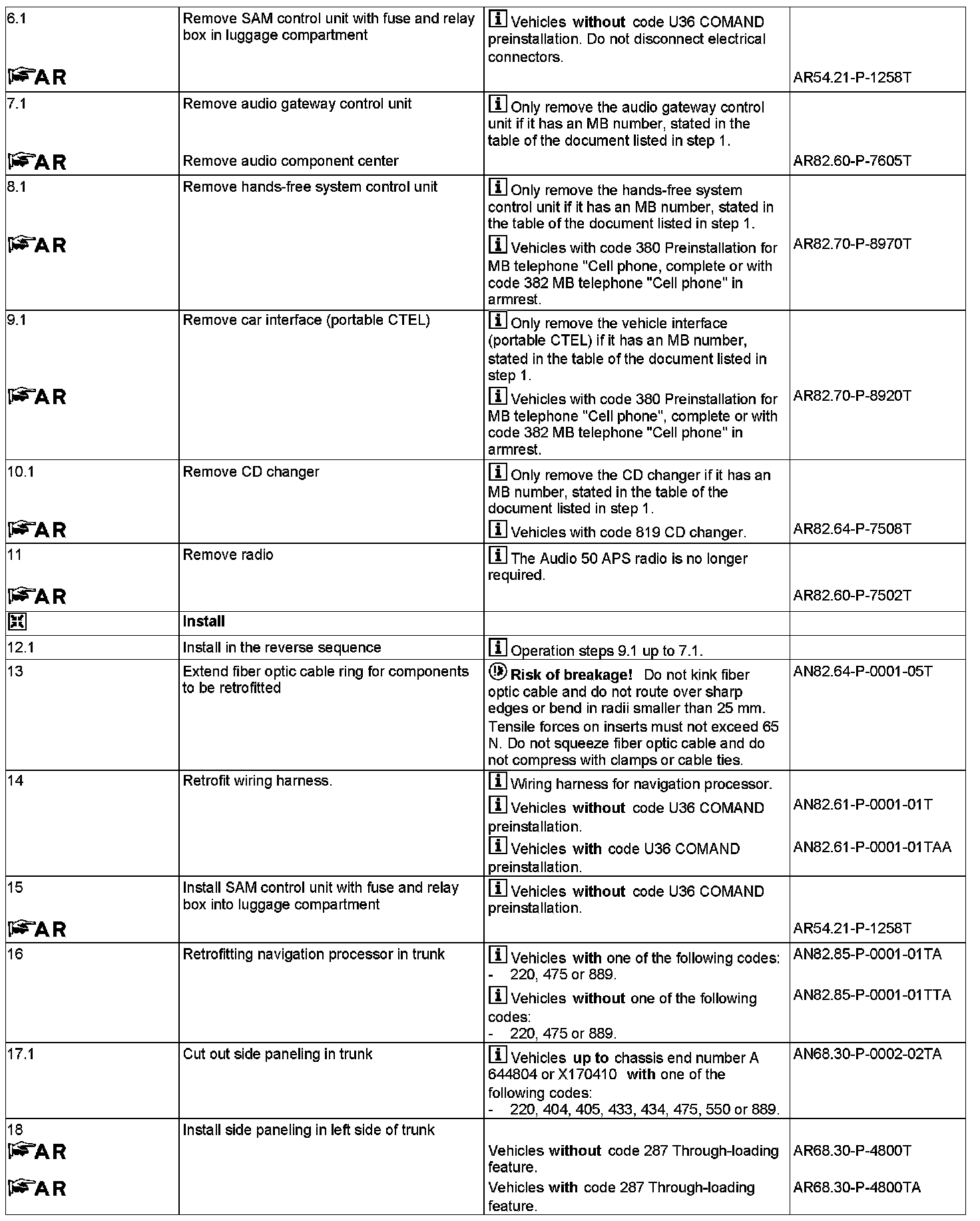

Steps 6.1 - 18:

Steps 19 - 26:

Parts Ordering Notes:
