[1] Test components B6/1 (Camshaft Hall sensor) and L5 (Crankshaft position sensor).: There was a temporary loss of signal tran


[1] Test components B6/1 (Camshaft Hall sensor) and L5 (Crankshaft position sensor).: There was a temporary loss of signal transmission.

Test 1: Test components B6/1 (Camshaft Hall sensor) and L5 (Crankshaft position sensor).

1. Test components B6/1 (Camshaft Hall sensor) and L5 (Crankshaft position sensor).

Test 1.1: Check synchronization between crankshaft and camshaft.

1.1. Check synchronization between crankshaft and camshaft.
Test sequence

- Switch off ignition.
- Connect 126-pole socket box between engine wiring harness and control module N3/9 (CDI control unit).
- Connect measuring system.

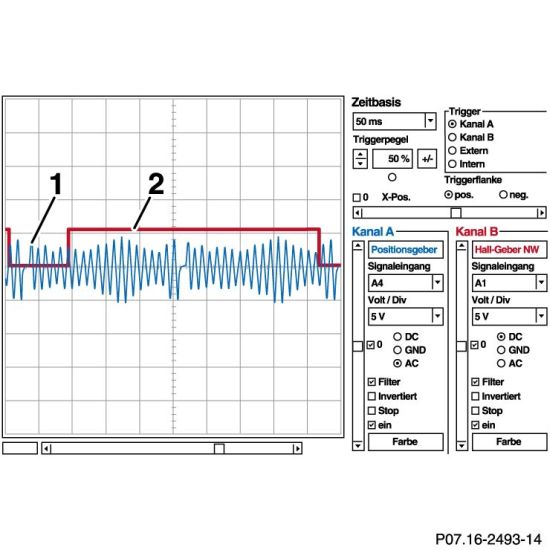

- Enter the settings as shown in the right-hand diagram.
- A7Observe oscilloscope pattern between ground and socket (1.38) 38 of the 126-pole socket box tester.A1
- A7Observe oscilloscope pattern between ground and socket (1.88) 88 of the 126-pole socket box tester.A4
- Start engine.
Communication with ECU required
