Window Shade: Diagrams

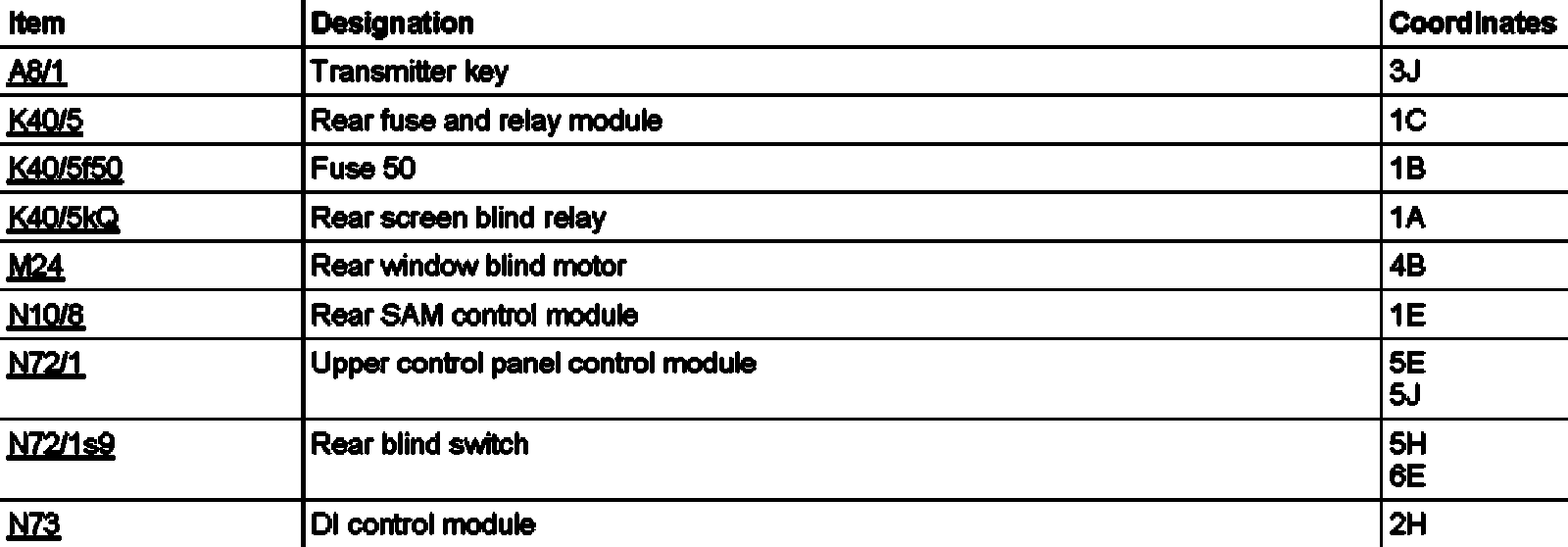

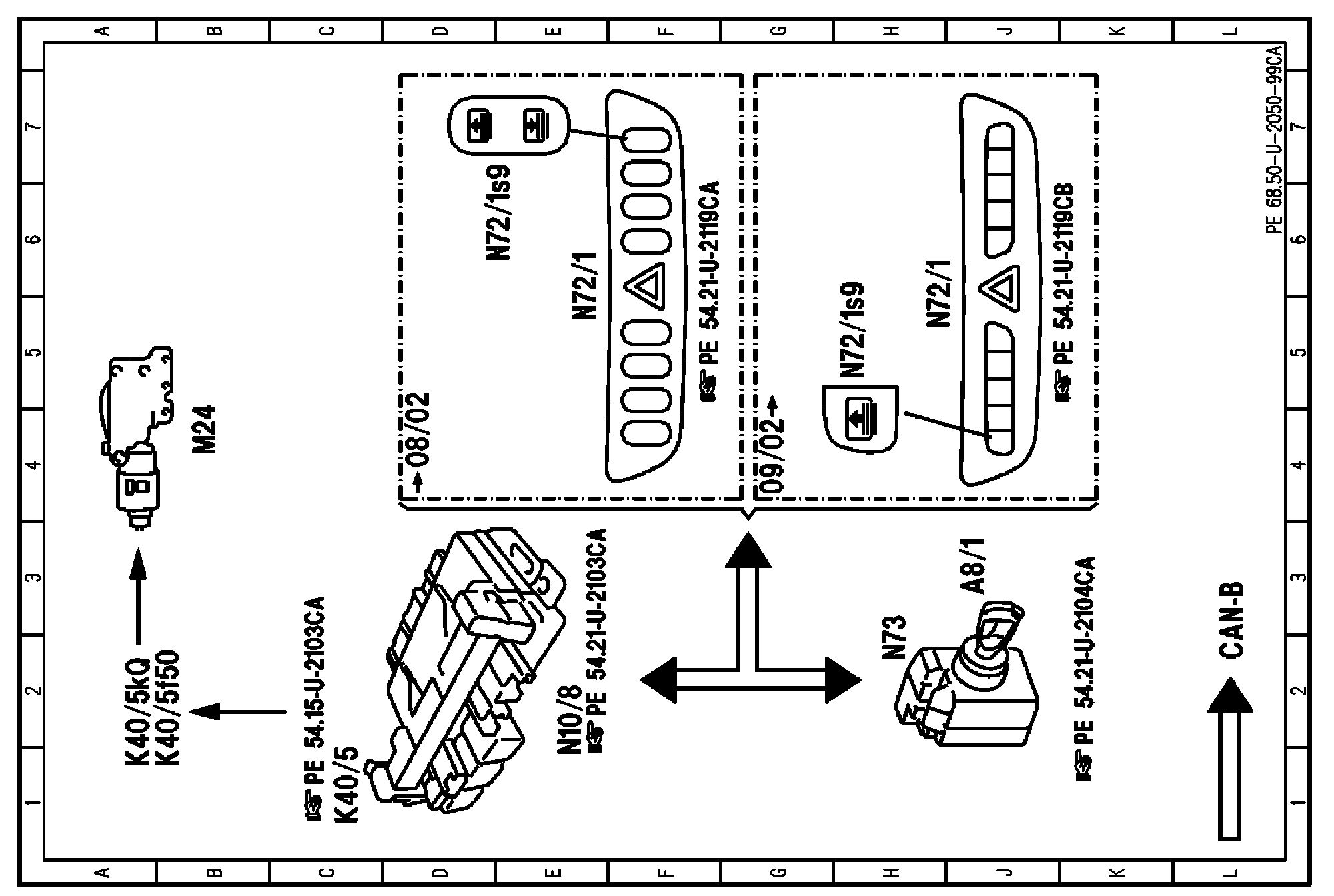

PE68.50-U-2050CA Electrical Function Diagram For Rear Sun Shade
Electrical roller blind for rear window
