AR54.65-P-0001I Remove/Install Parktronic System (PTS) Sensors In Front Bumper

AR54.65-P-0001I Remove/Install Parktronic System (PTS) Sensors In Front Bumper
- with CODE (220a) Parktronic system (PTS)

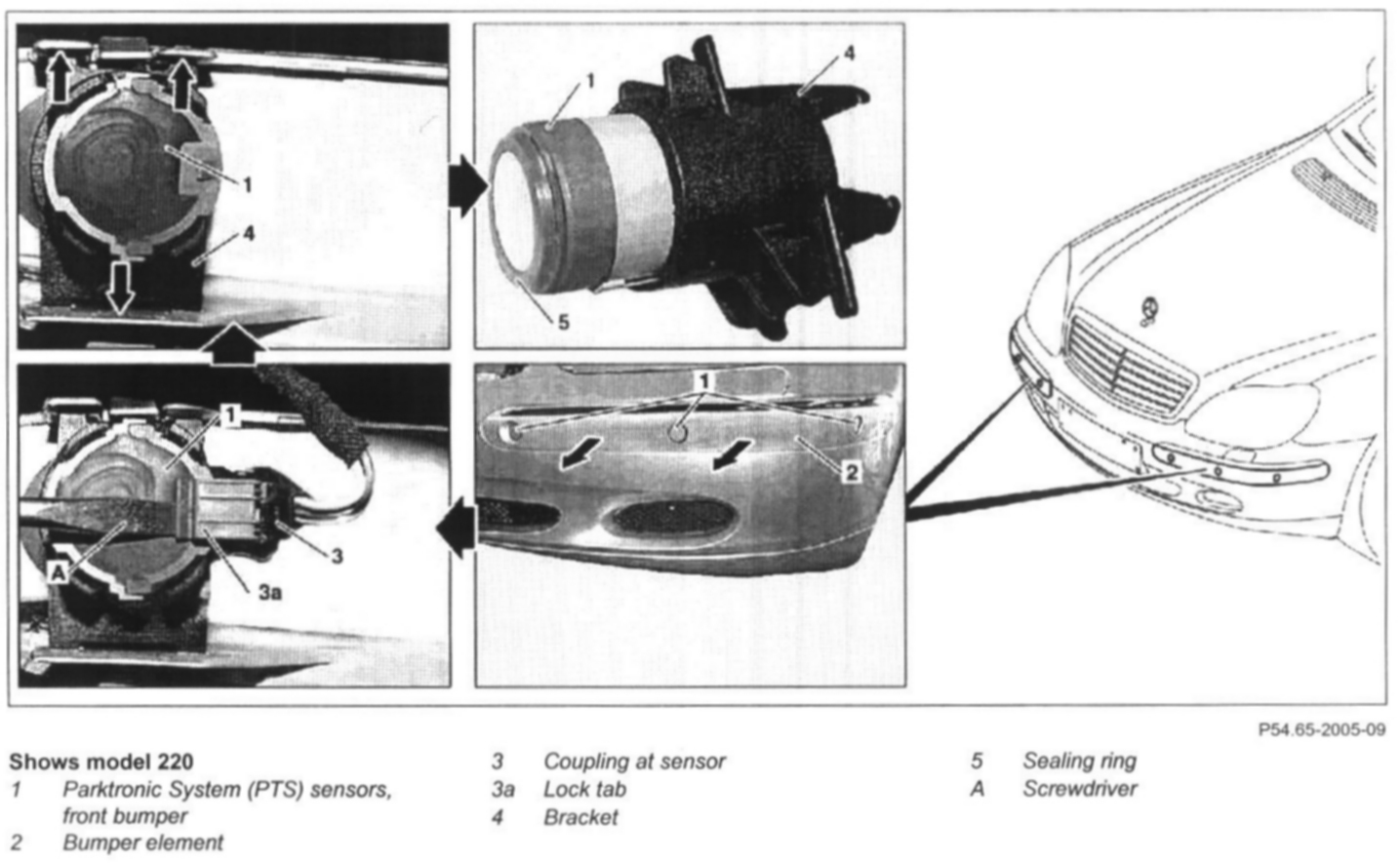

1 Unclip bumper element (2) on bumper

NOTE: Using a suitable tool (e.g. plastic wedge) pry out of bumper and remove in the direction of the arrow.

2 Disconnect coupling (3) from Parktronic sensor (1)

NOTE: Lift up lock tab (3a) slightly using a suitable tool.

3 Unclip bracket of Parktronic sensor (4) from bumper element

CAUTION: When removing the bracket together with the Parktronic sensor, this can fall out of the bracket.

4 Pull sensor out of the bracket

NOTE: Installation: Check sealing ring (5).

5 Install in the reverse order.
