Air Bag Control Module: Service and Repair

AR91.60-P-0622M Remove/Install Airbag/Emergency Tensioning Retractor Control Module

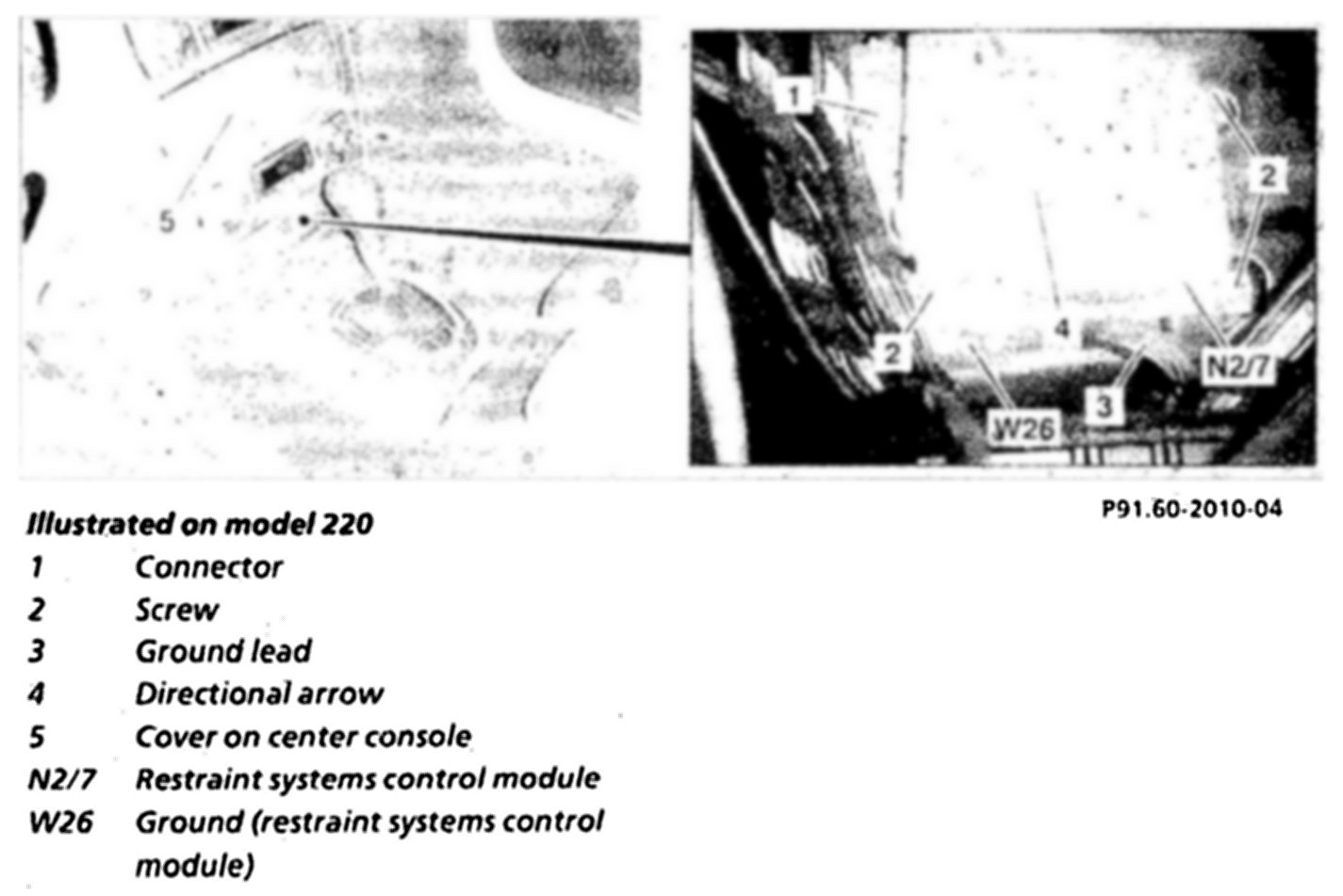

Illustrated On Model 220:

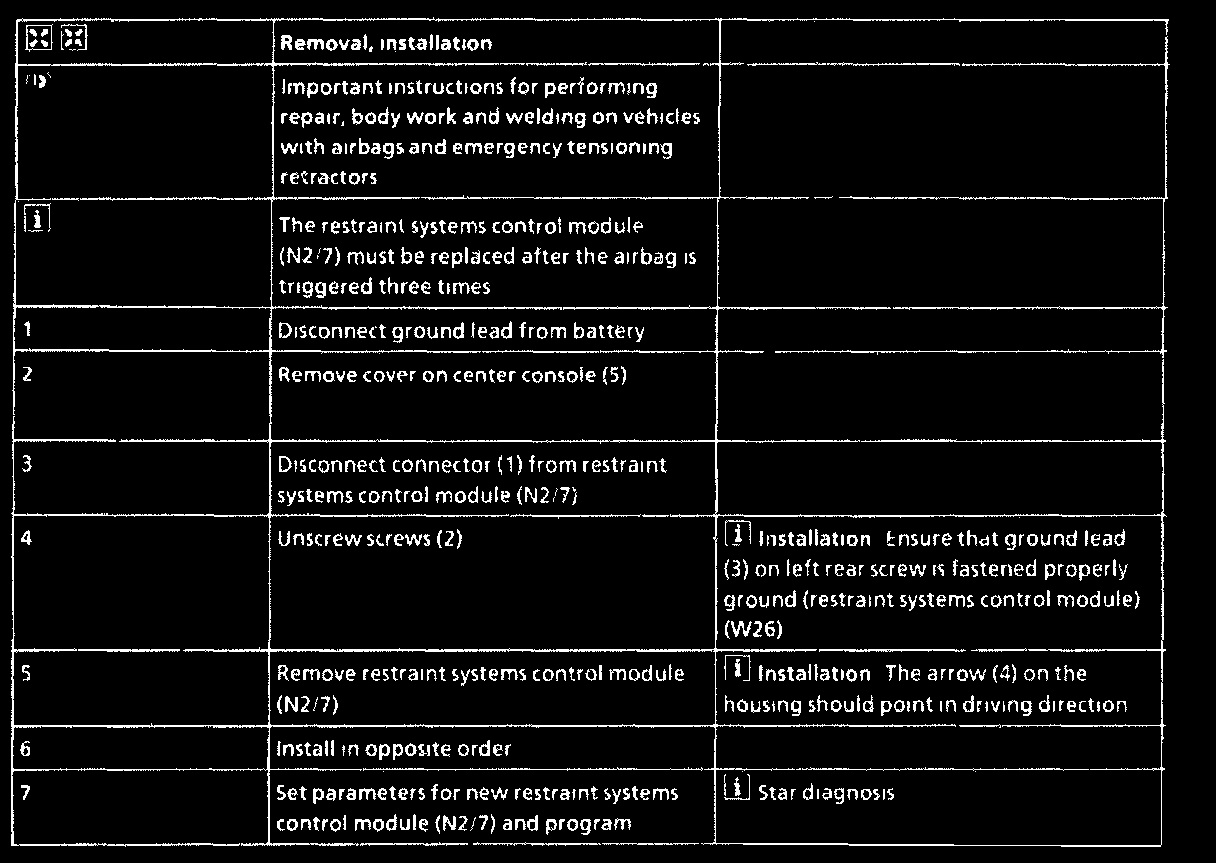

Removal/Installation, Steps 1 - 7:
