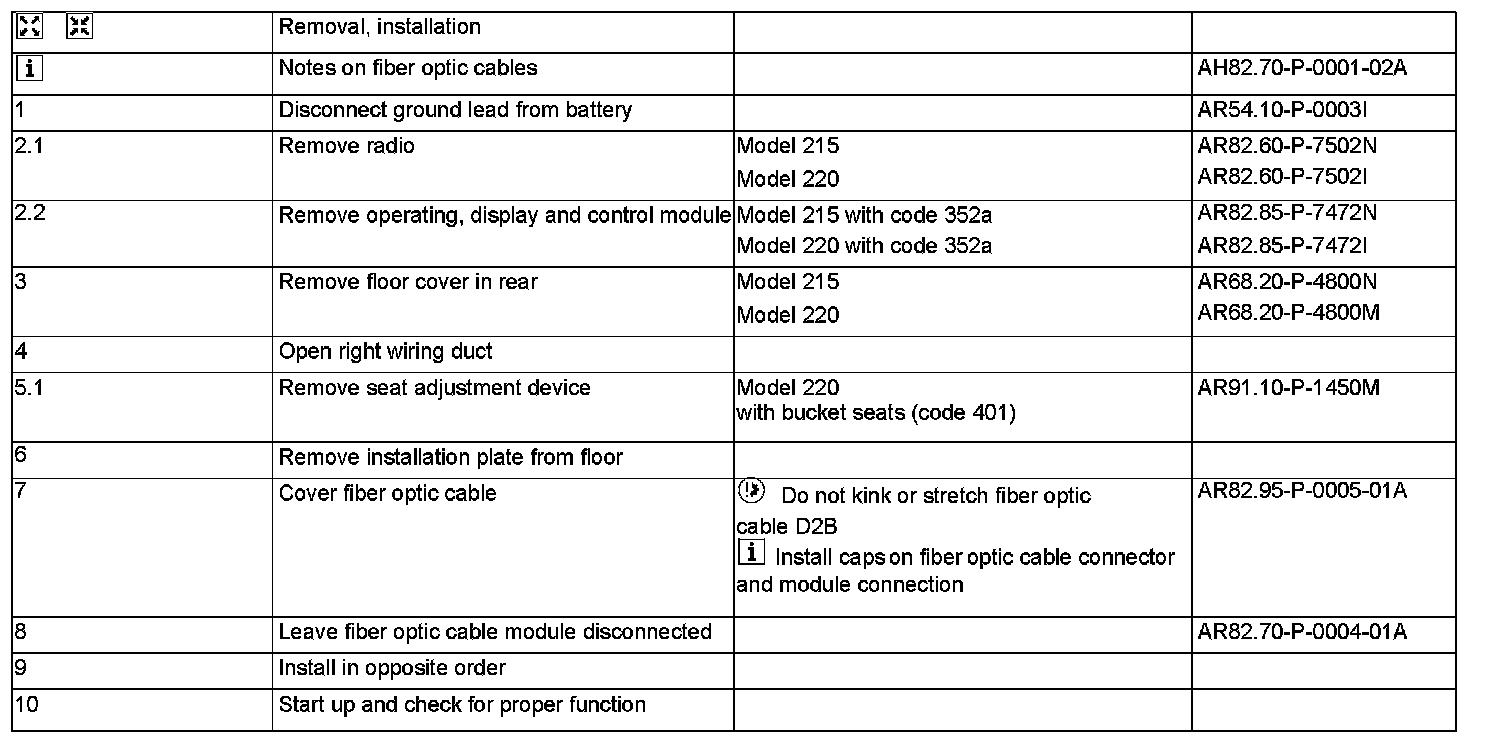

AR82.70-P-0004MC Remove/Install Fiber Optic Cable
AR82.70-P-0004MC Remove/Install Fiber Optic Cable
AR82.70-P-0004MC Remove/Install Fiber Optic Cable
- Between COMAND or radio/right rear seat
