PE00.19-U-2300CC CAN Bus - Interior Compartment
PE00.19-U-2300CC CAN Bus - Interior Compartment

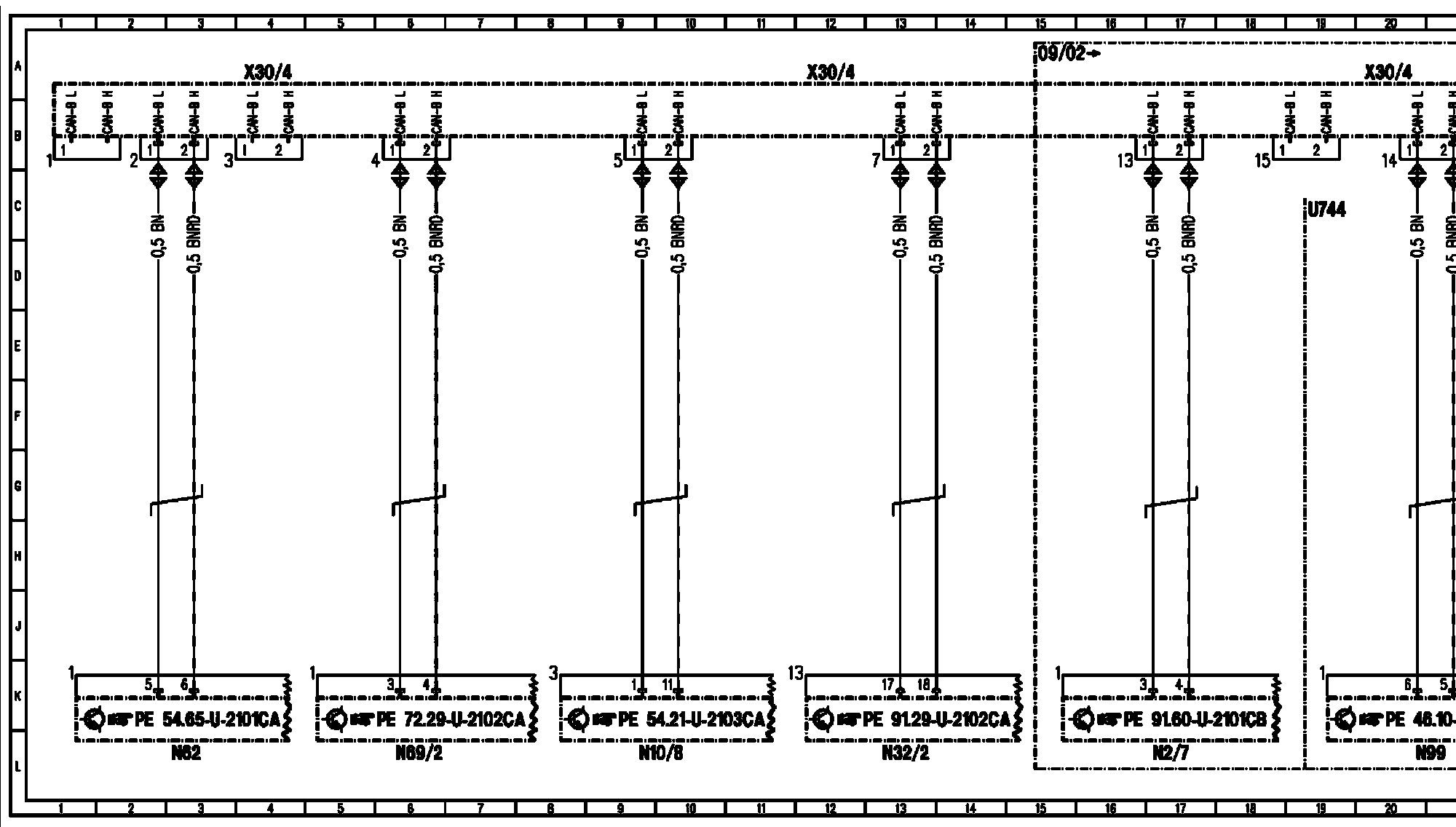

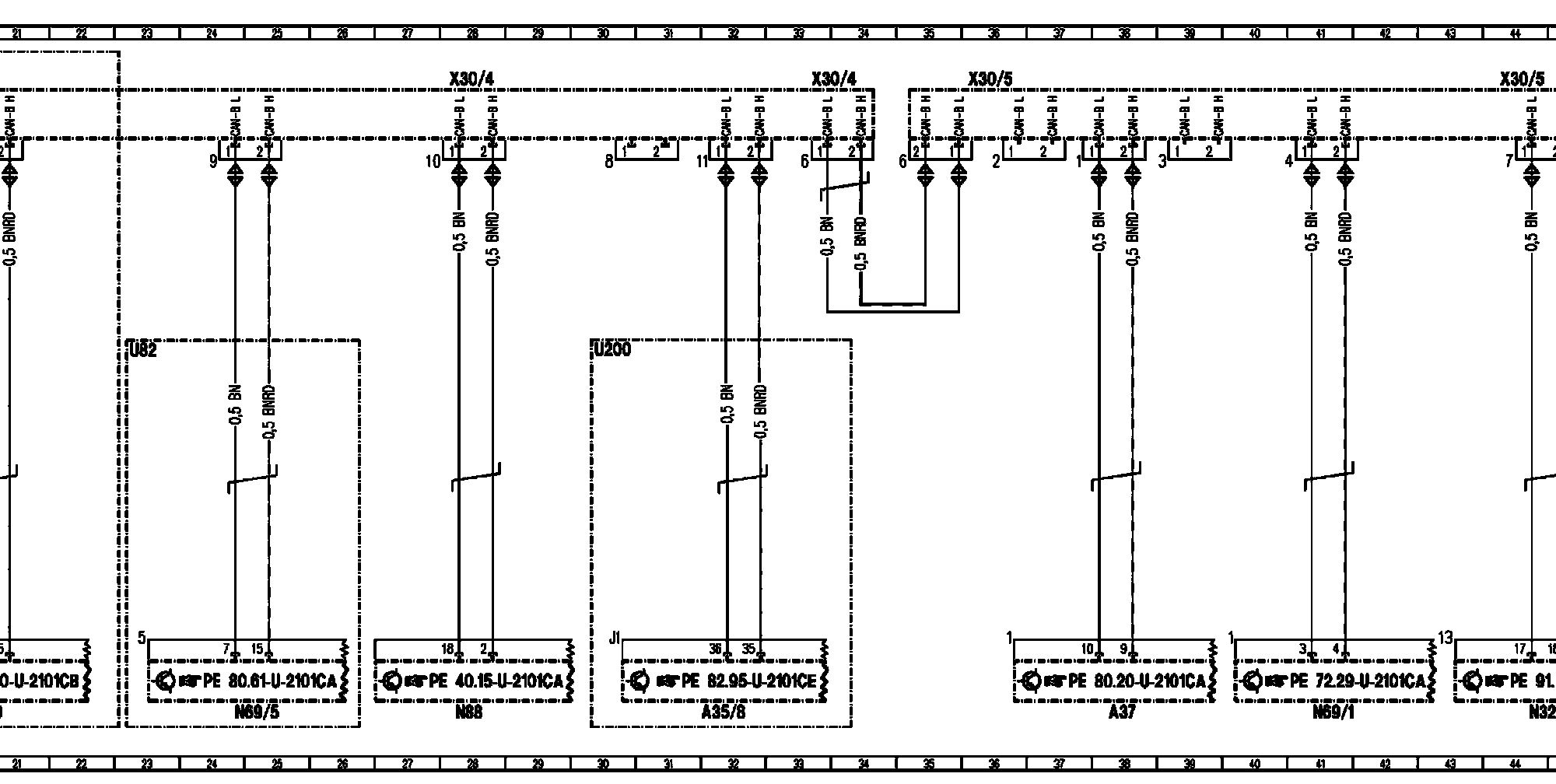

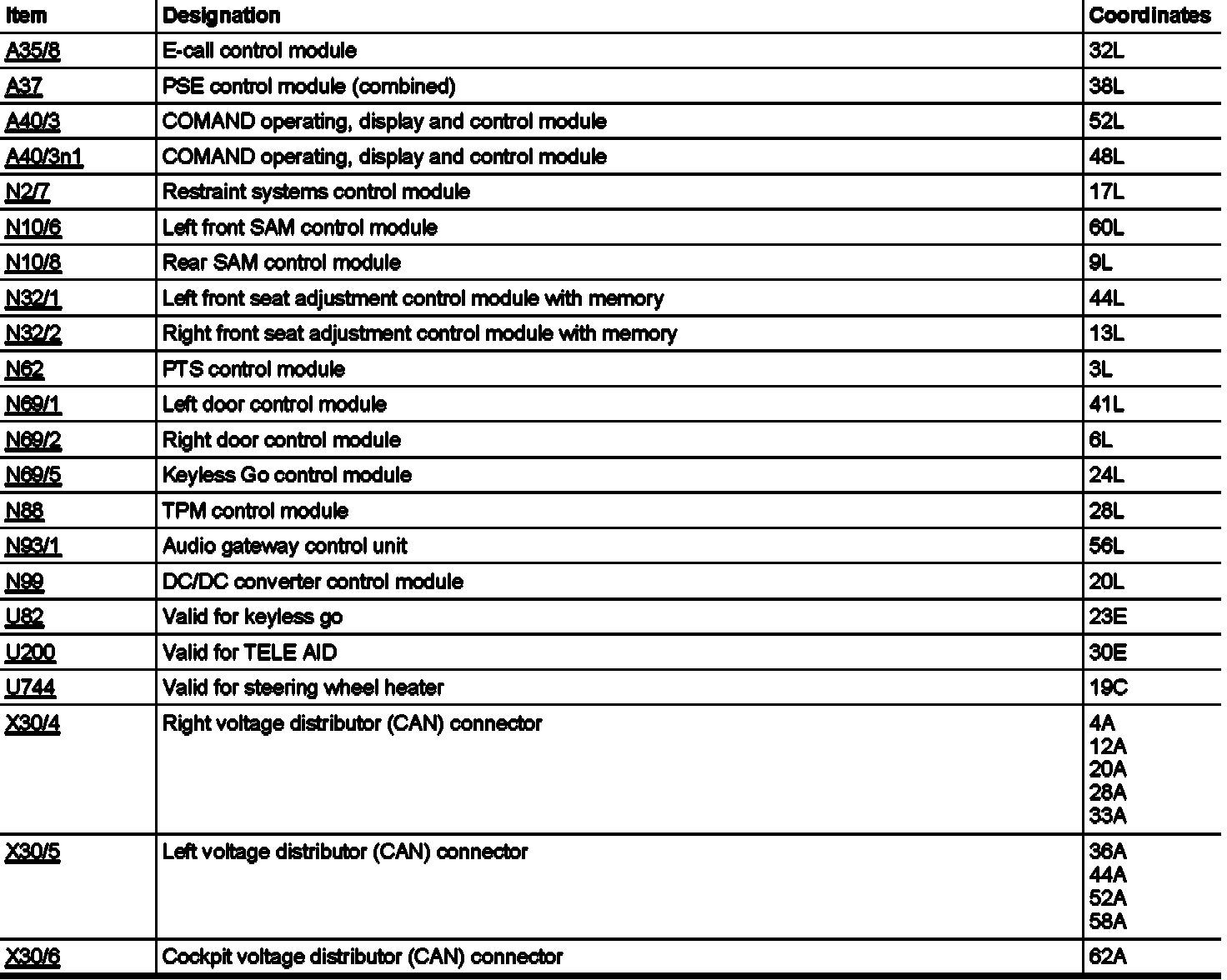

PE00.19-U-2300CB CAN Bus - Interior Compartment
Model 215 as of 06/01/01 Sheet 1
