CL 55 AMG (215.374) V8-5.5L SC (113.991)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>

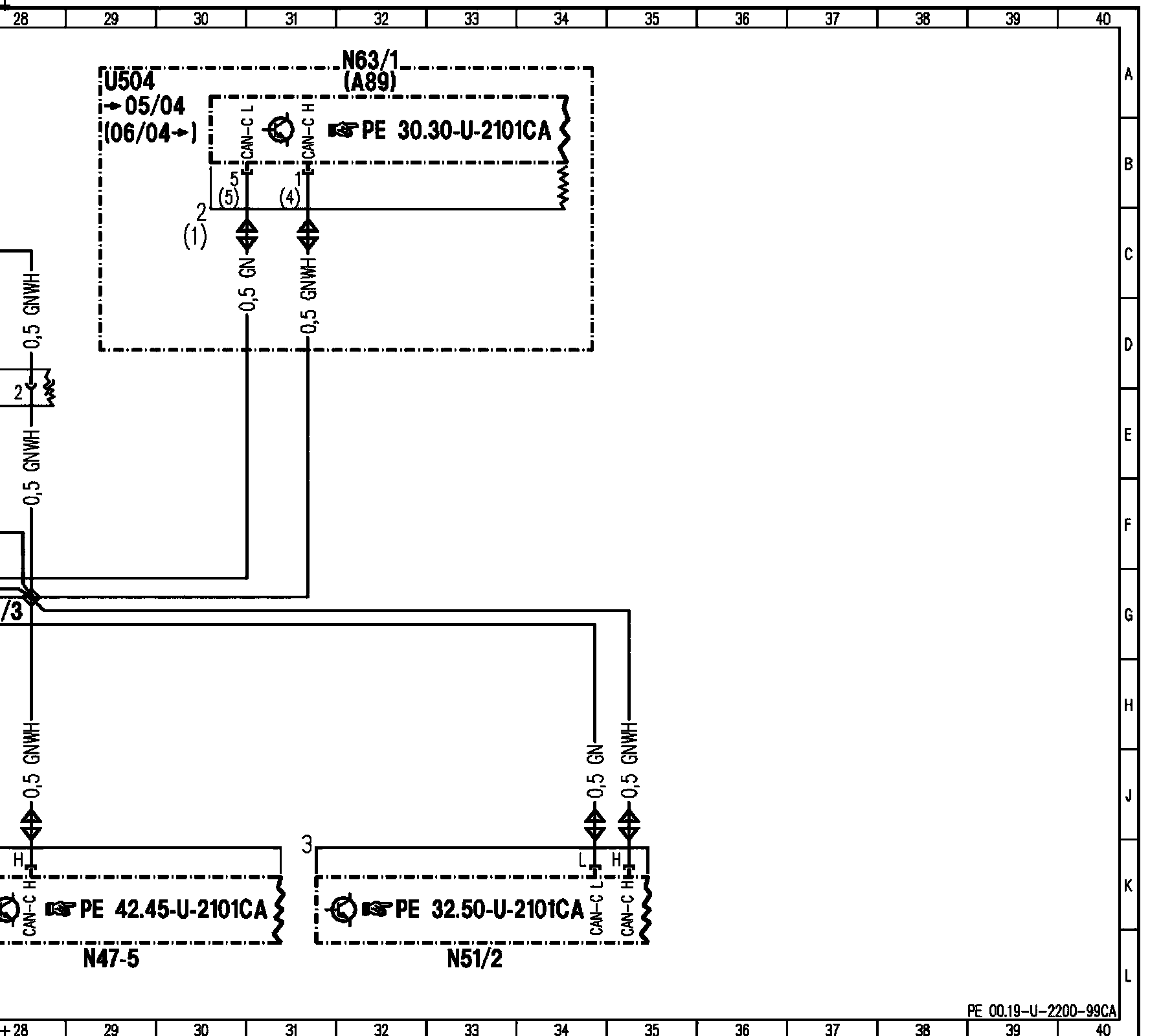

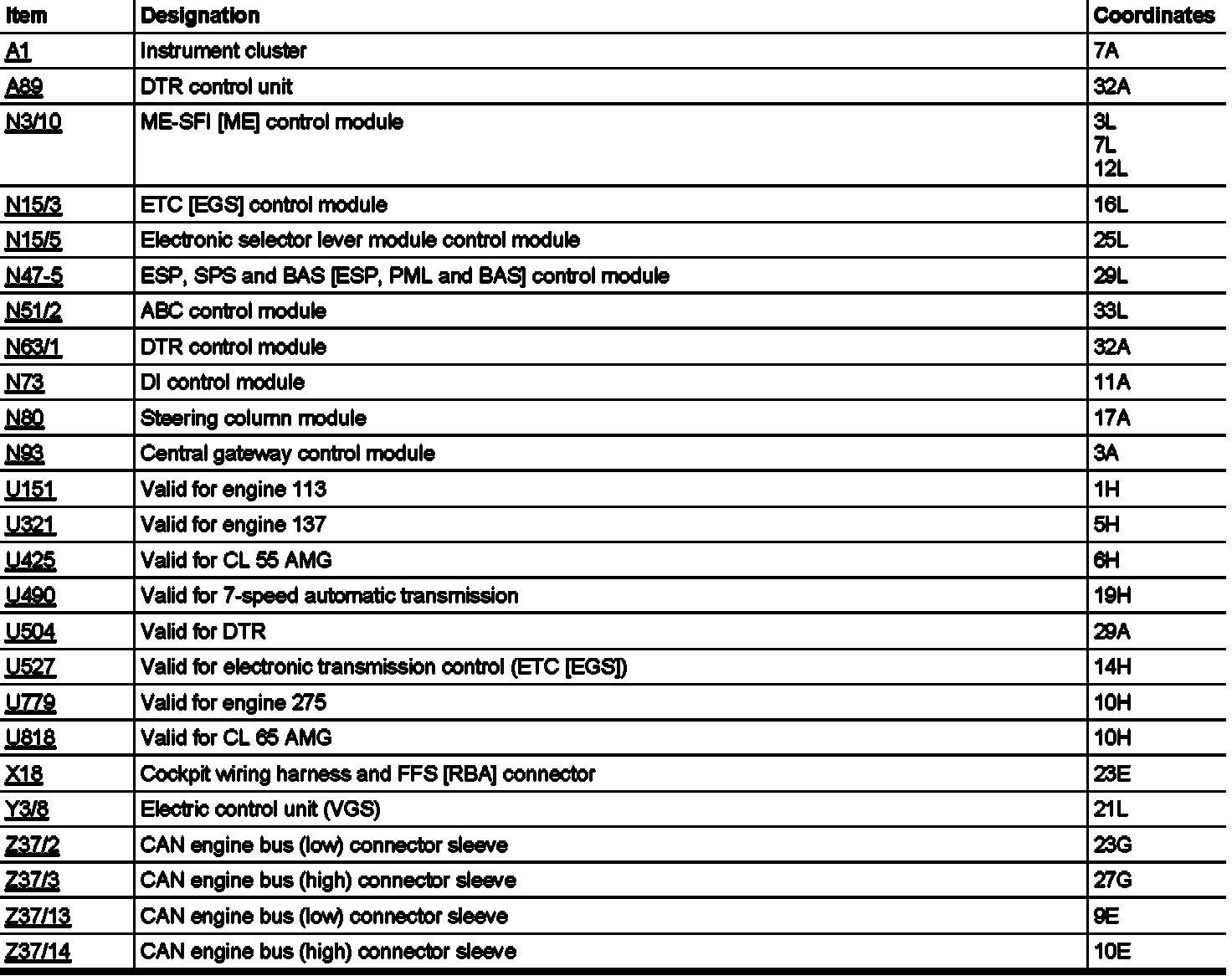

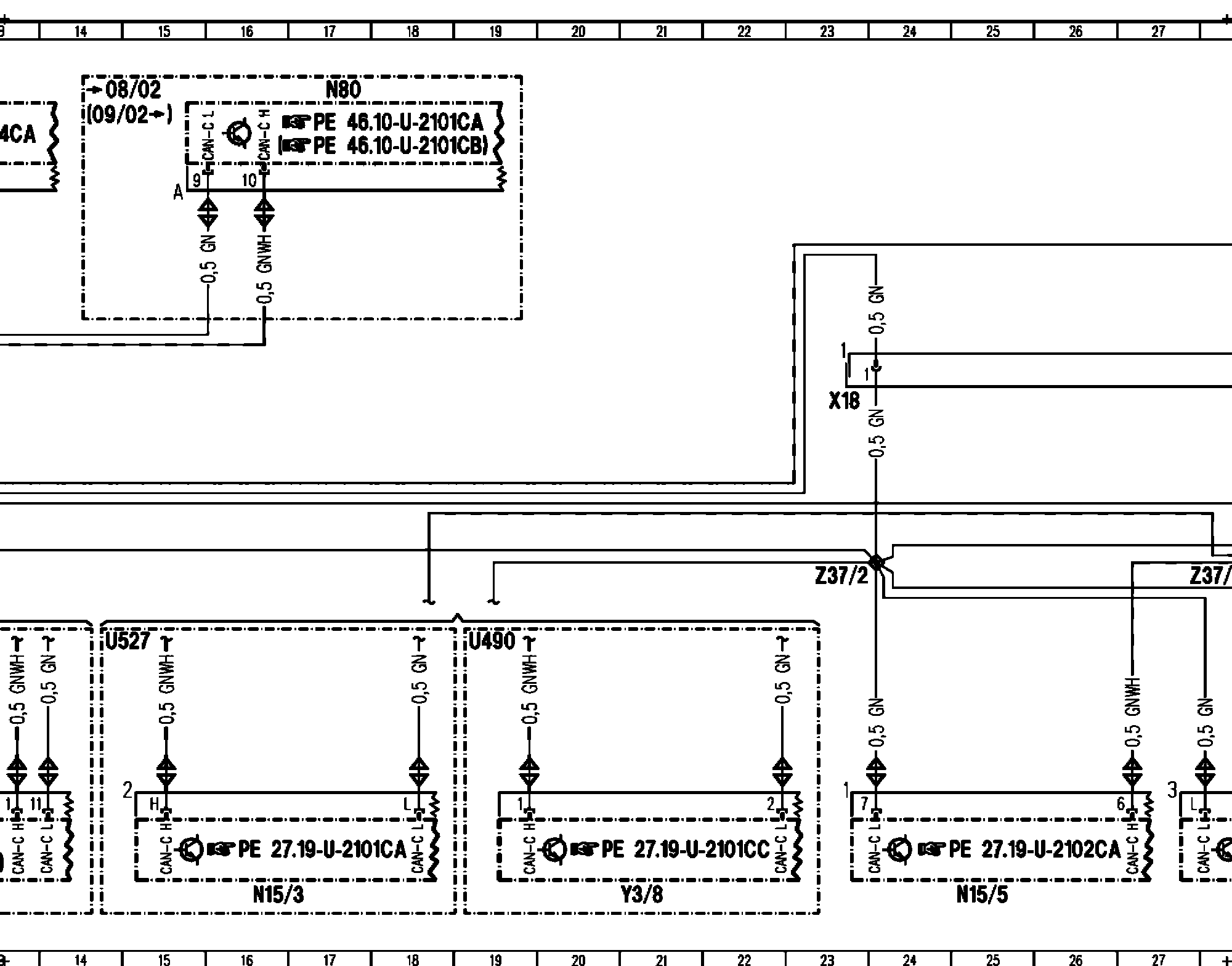

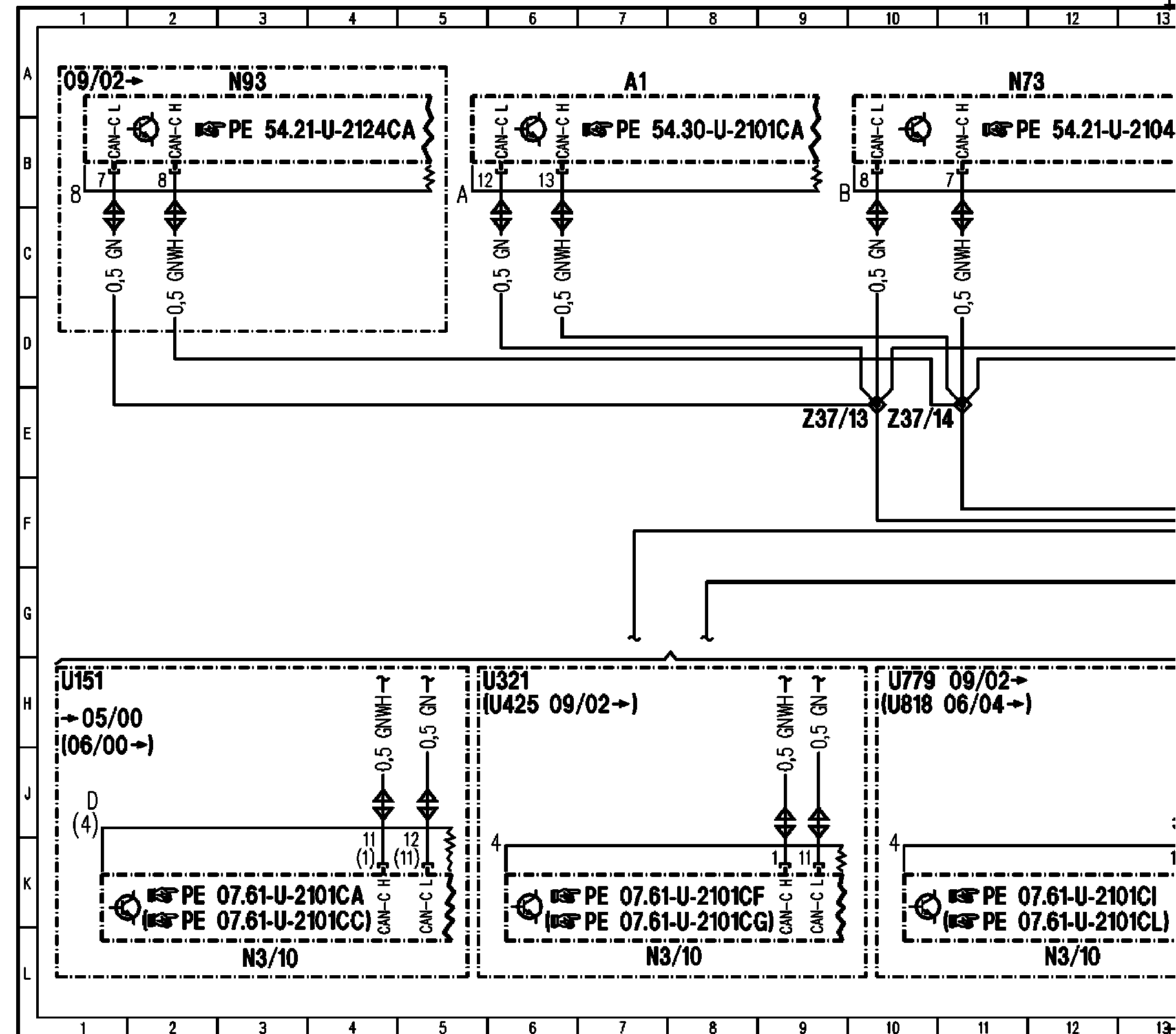

PE00.19-U-2200CA CAN Bus - Engine
PE00.19-U-2200CA CAN Bus - Engine
PE00.19-U-2200CA CAN Bus - Engine
