GF30.20-P-3012AM ME-SFI Electronic Accelerator, Function

GF30.20-P-3012AM ME-SFI Electronic Accelerator, Function
ENGINE 113.990 in MODEL 211, 219
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230 up to Model Year 2008
ENGINE 113.993 in MODEL 463 up to 31.5.12
ENGINE 113.995 in MODEL 230 up to Model Year 2008

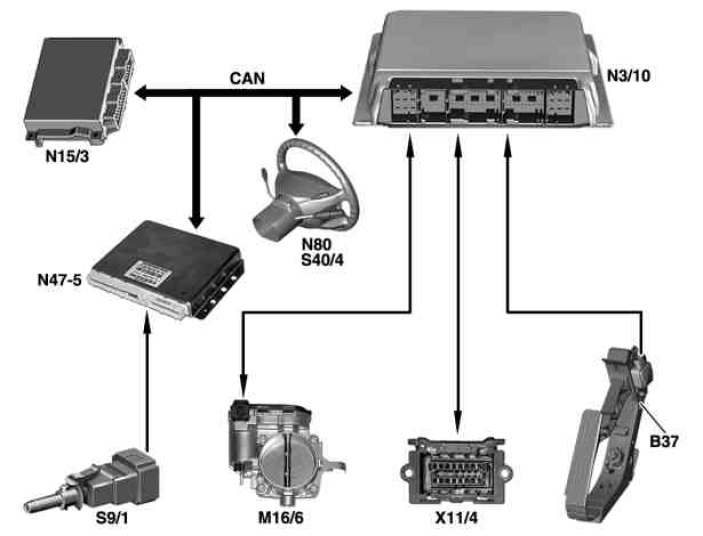

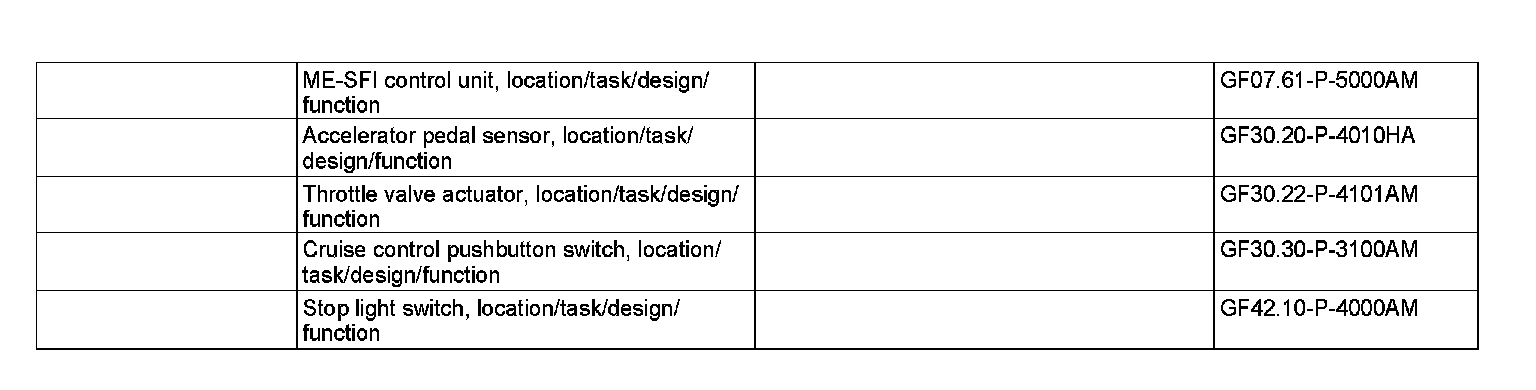

B37 Accelerator pedal sensor
M16/6 Throttle valve actuator
N3/10 ME control unit
N15/3 EGS control unit
N47-5 ESP control unit (model 219)
N47-5 ESP and BAS control unit (model 463)
N47-5 ESP, SPS [PML] and BAS control unit (models 211, 215, 220, 230)
N80 Steering column module
S9/1 Stop lamp switch
S40/4 CC [TPM] switch (models 211, 219, 230)
S40/4 CC [TPM] with variable speed limiter switch (models 215, 220, 463)
X11/4 Data link connector
CAN CAN data bus (Controller Area Network)

The electronic accelerator function is integrated and controlled in the motor electronics control unit depending on the driver input and the operating condition, the opening angle of the throttle valve.

The position of the accelerator pedal and the speed at which the position of the accelerator pedal changes are transmitted to the sensor located on the accelerator pedal mechanically.
The Hall sensor in the accelerator pedal sensor sends an appropriate voltage signal to the ME control unit. The ME control unit analyzes the voltage signal and, depending on the performance map, activates the throttle valve actuator.
The opening angle of the throttle valve is altered in the throttle valve actuator in line with the driver input and the operating conditions.
An actual value potentiometer in the throttle valve actuator reports the current position of the throttle valve to the motor electronics control unit.

A second actual value potentiometer in the throttle valve actuator and a second Hall sensor in the accelerator pedal sensor supply a reference value for a plausibility check by the ME control unit.
Any detected faults are stored in the fault memory and can be read out and deleted using STAR DIAGNOSIS.

Additional functions of the electronic accelerator pedal:

^ Idle speed control
^ Cruise control (CC [TPM])
^ Torque reduction
^ Emergency running
^ Data transfer over CAN

Input signals for the electronic accelerator pedal:

^ Accelerator pedal position
^ Brake actuation (via the ESP control unit)
^ Cruise control operation (via the steering column module or the ESP control unit)
^ Reduction of the engine torque (from ESP control unit)
^ Drive position (via the ETC [EGS] control unit)
