FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
CL 55 AMG (215.374) V8-5.5L SC (113.991)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Voice Activation System
>>

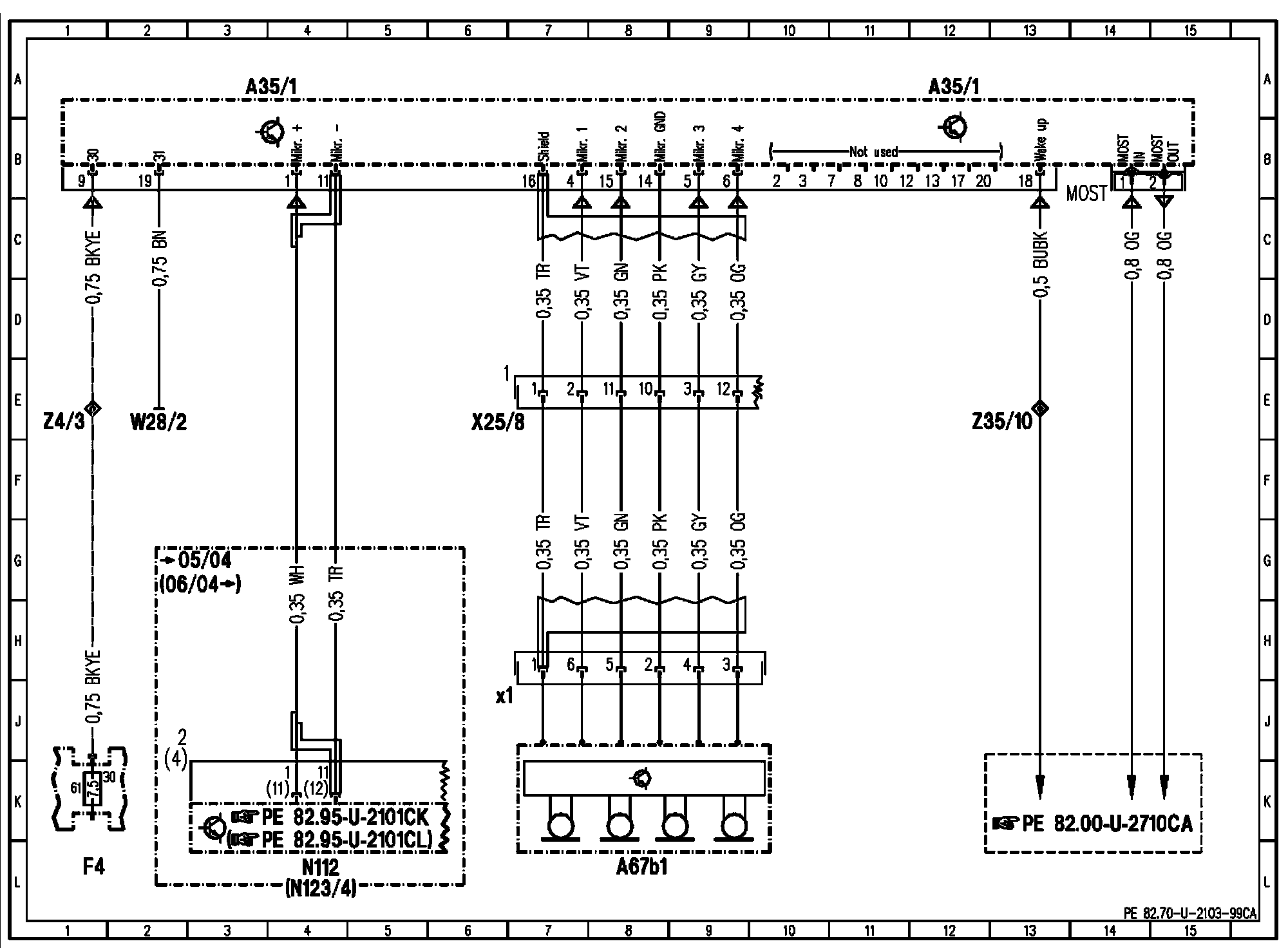

PE82.70-U-2103CA Hand-Free Microphone Control Module
PE82.70-U-2103CA Hand-Free Microphone Control Module
PE82.70-U-2103CA Hand-Free Microphone Control Module

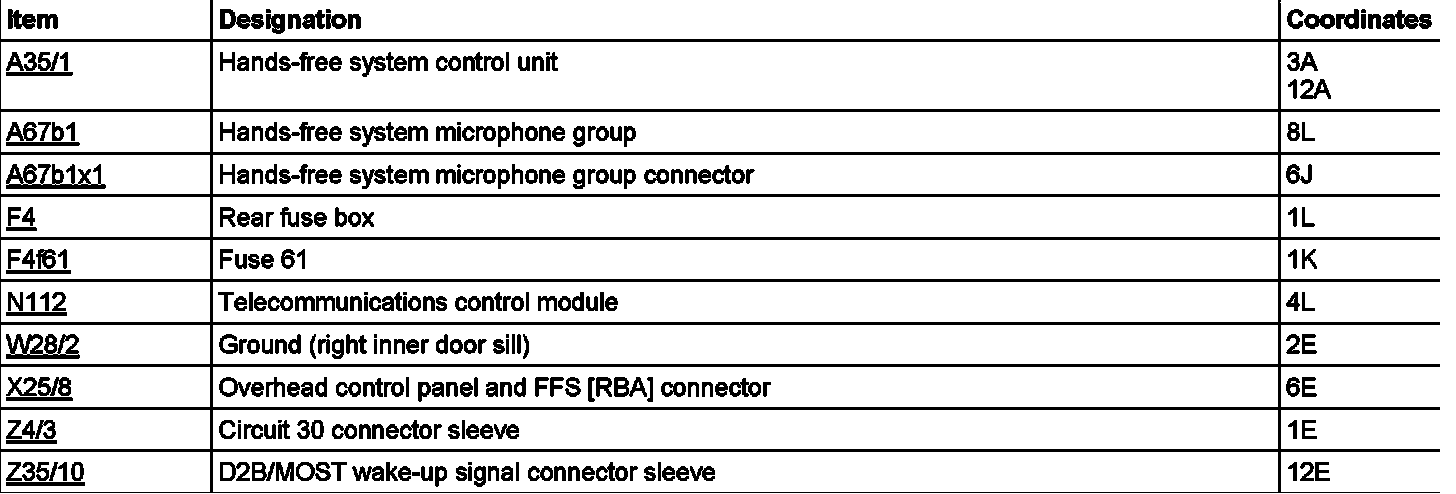

Control Module A35/1
