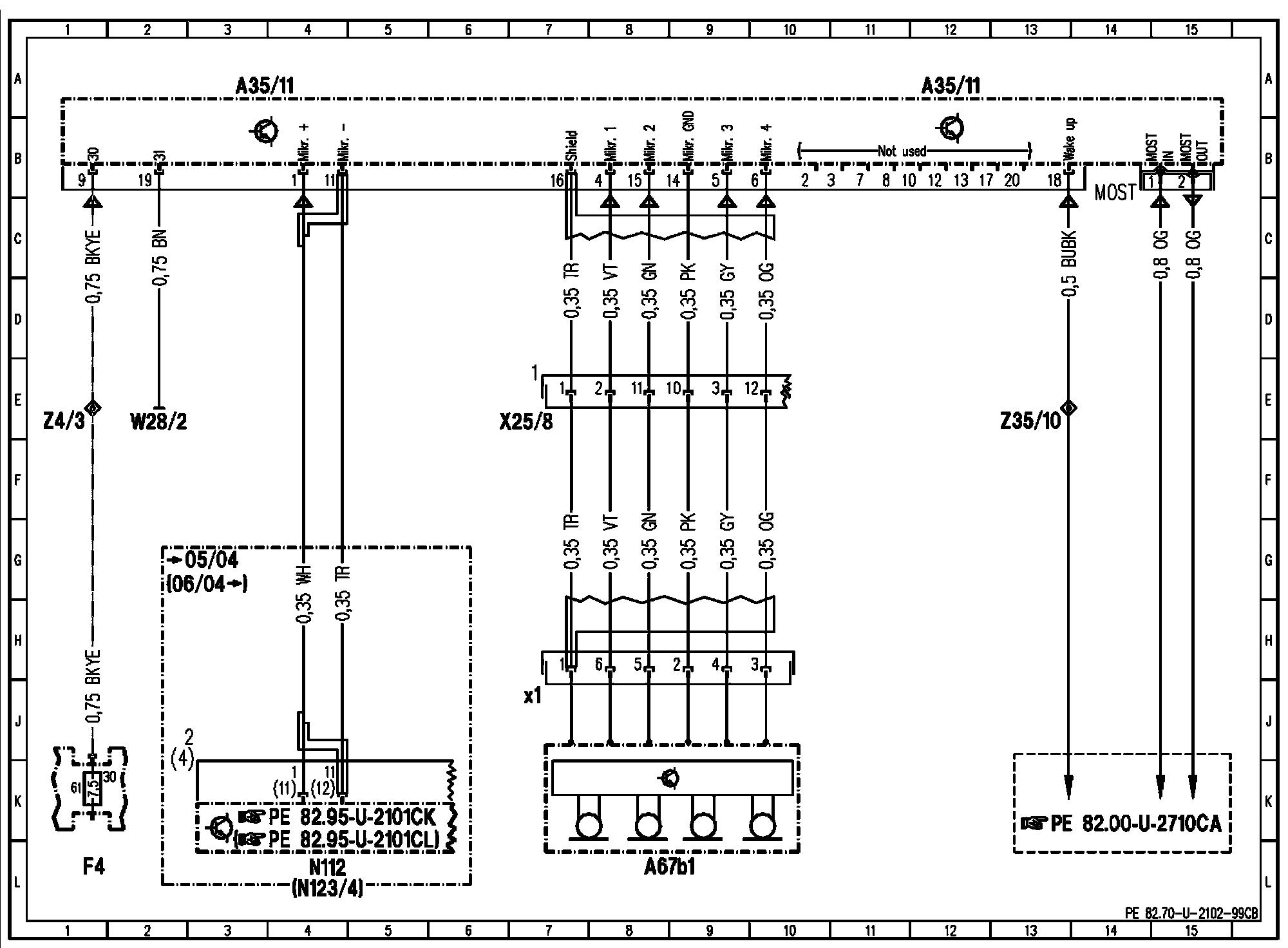

PE82.70-U-2102CB Voice Recognition System (VRS) Control Module



PE82.70-U-2102CB Voice Recognition System (VRS) Control Module
Model 215 as of 09/01/03 with CODE (813) Voice recognition system (VRS [SBS])
Control Module A35/11
