Mercedes Benz
>>
2006
>>
CL 55 AMG (215.374) V8-5.5L SC (113.991)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>

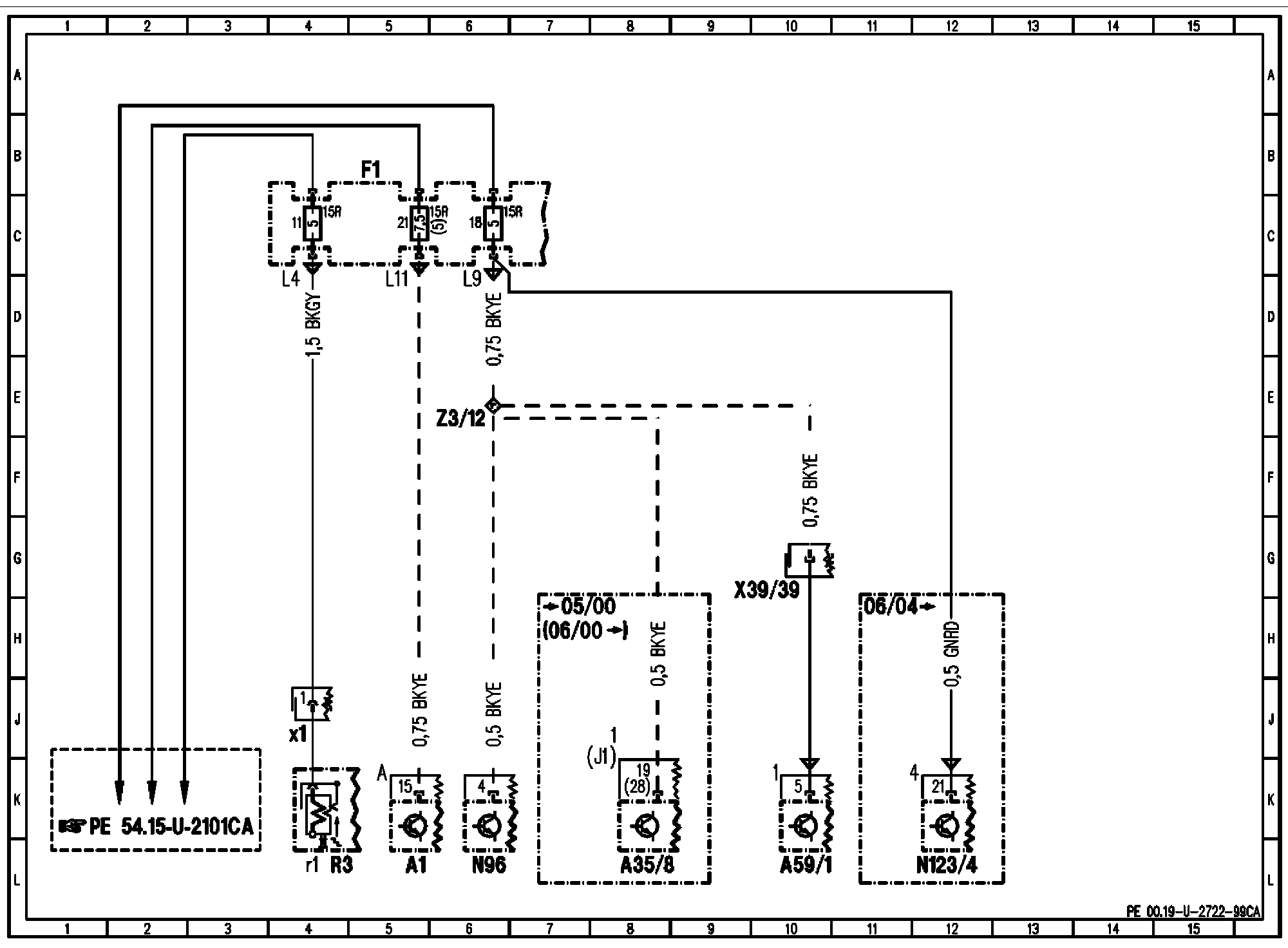

PE00.19-U-2722CA Circuit 15R Wiring
PE00.19-U-2722CA Circuit 15R Wiring
PE00.19-U-2722CA Circuit 15R Wiring
Model 215

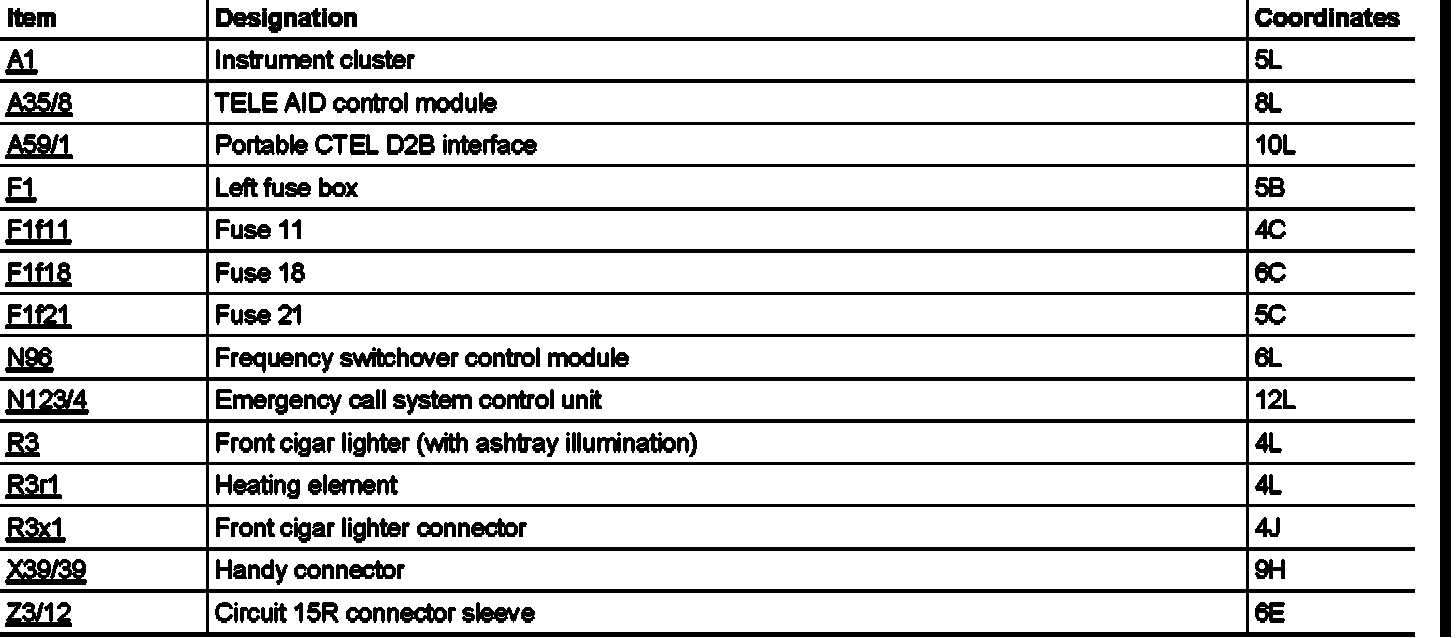

Supply of fuses in left fuse box
