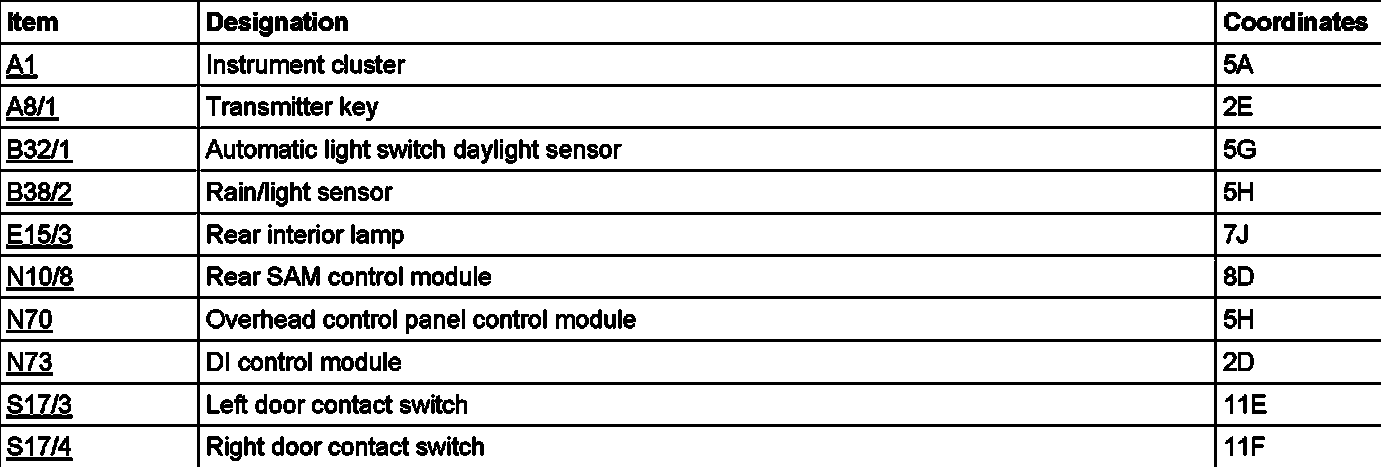

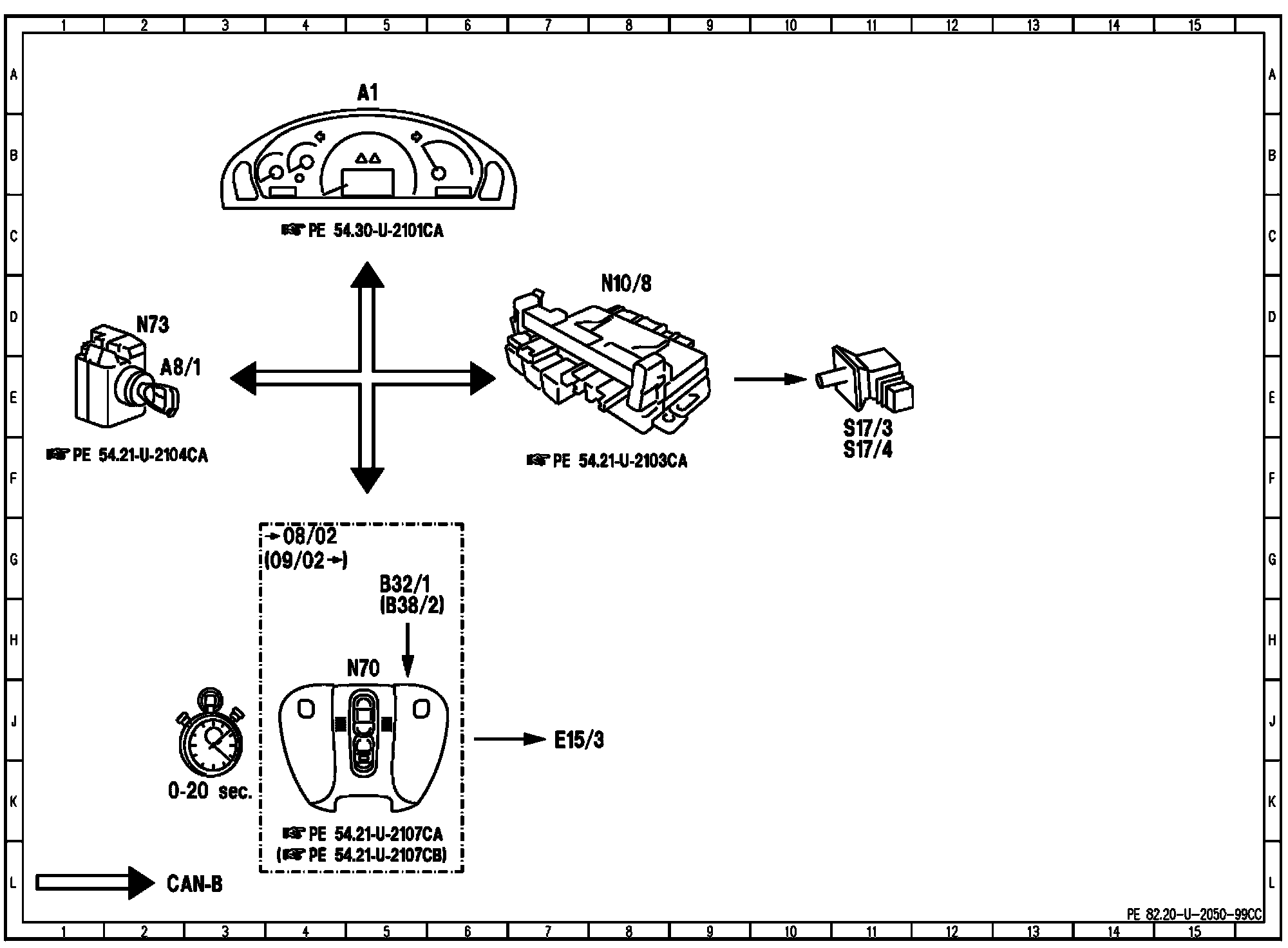

PE82.20-U-2050CC Electrical System Function Diagram For Interior Lights



PE82.20-U-2050CC Electrical System Function Diagram For Interior Lights
Overhead control panel and rear
