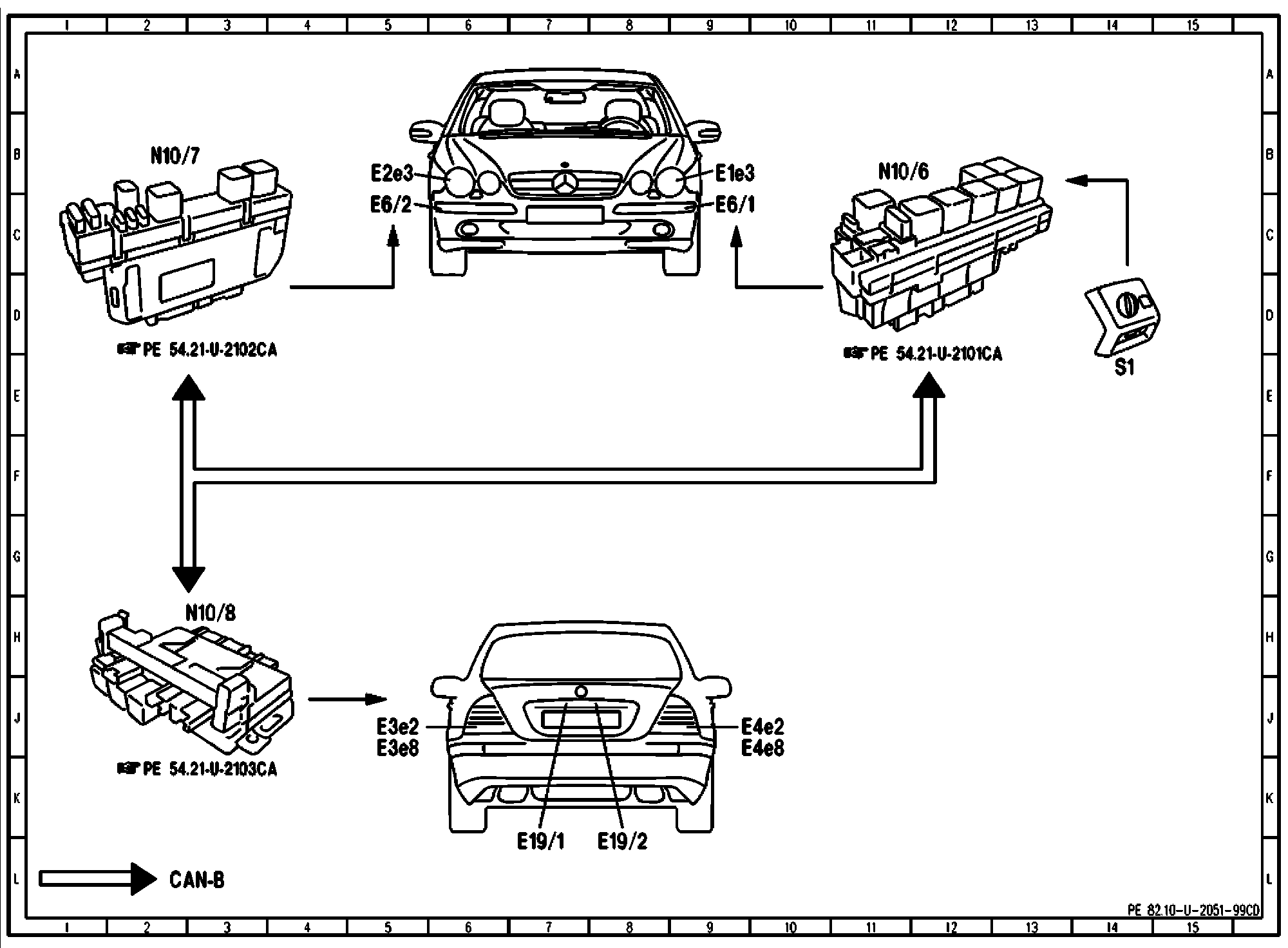

PE82.10-U-2051CD Electrical System Function Diagram For Exterior Lights

PE82.10-U-2051CD Electrical System Function Diagram For Exterior Lights

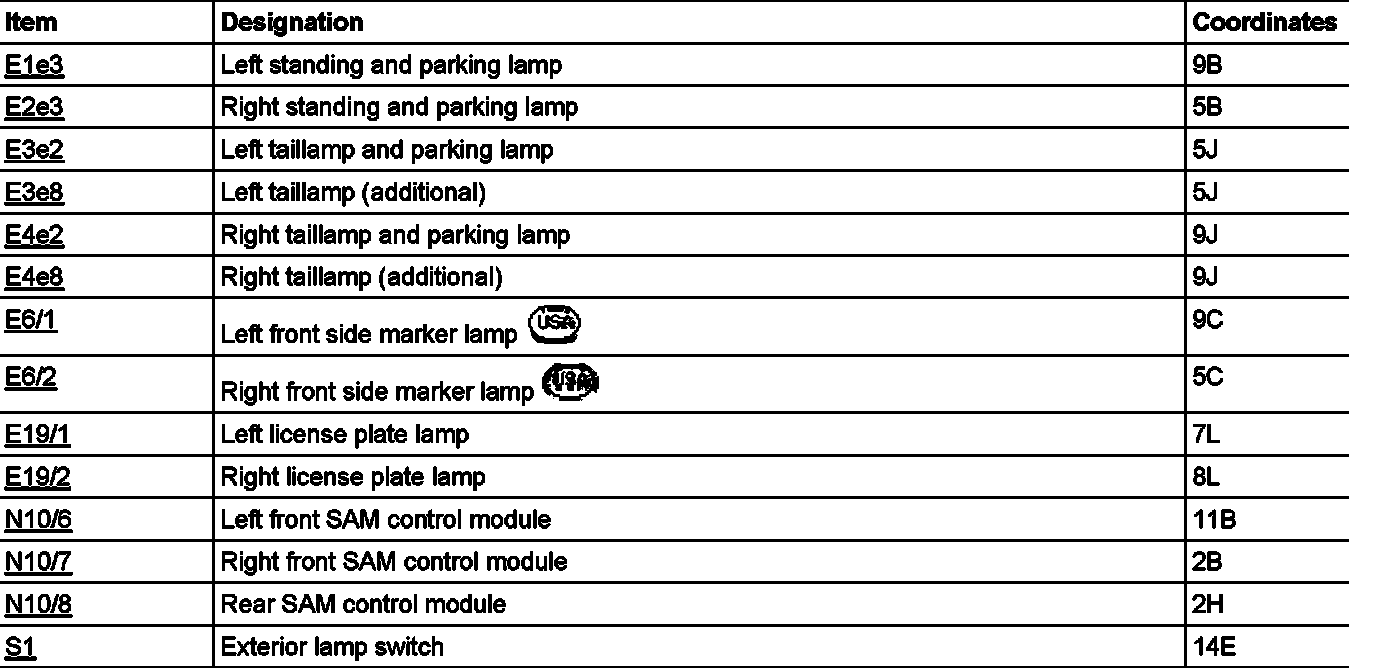

Standing lamp, parking lamp
