Collision Avoidance and Parking Assist Systems

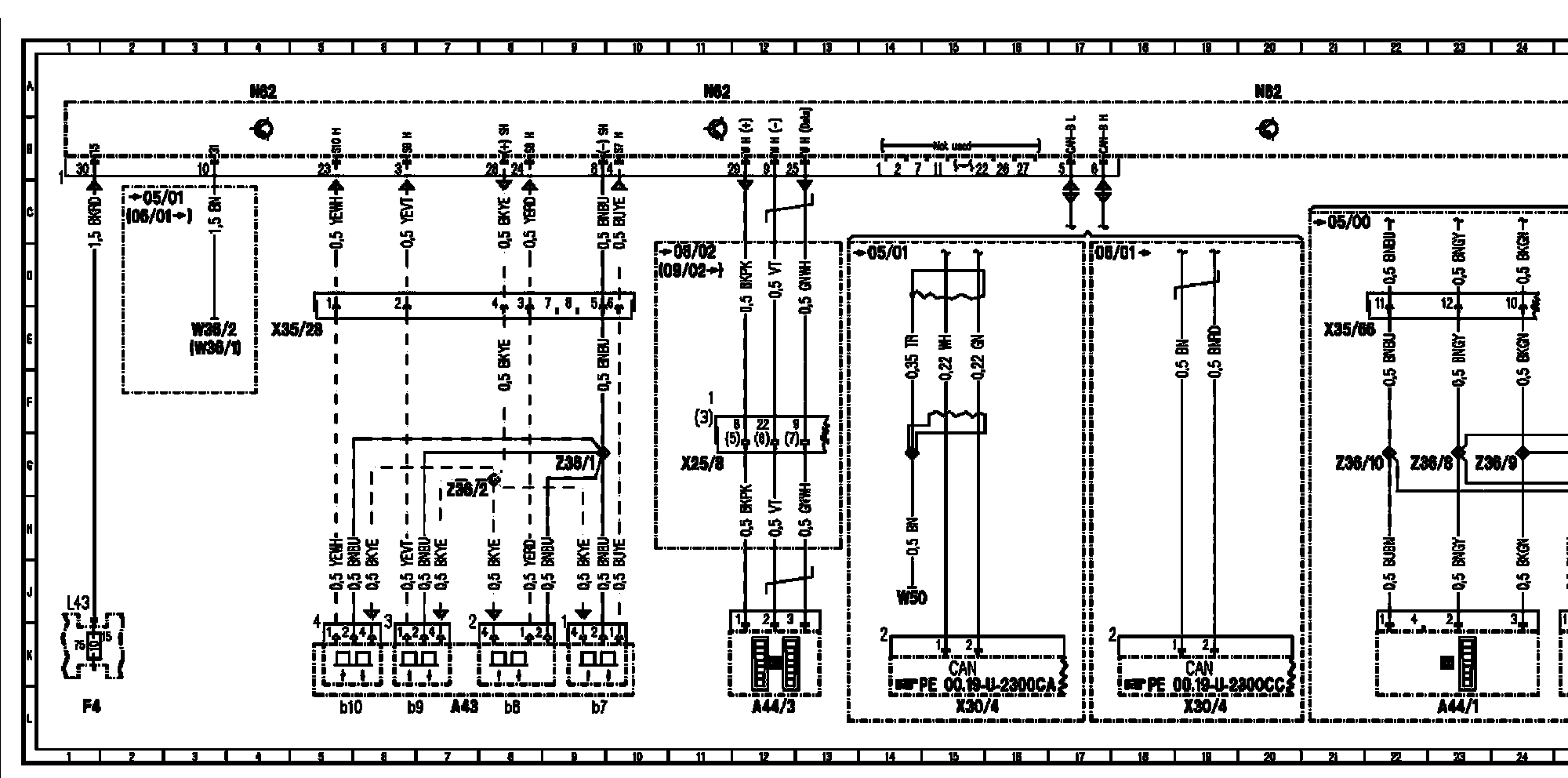

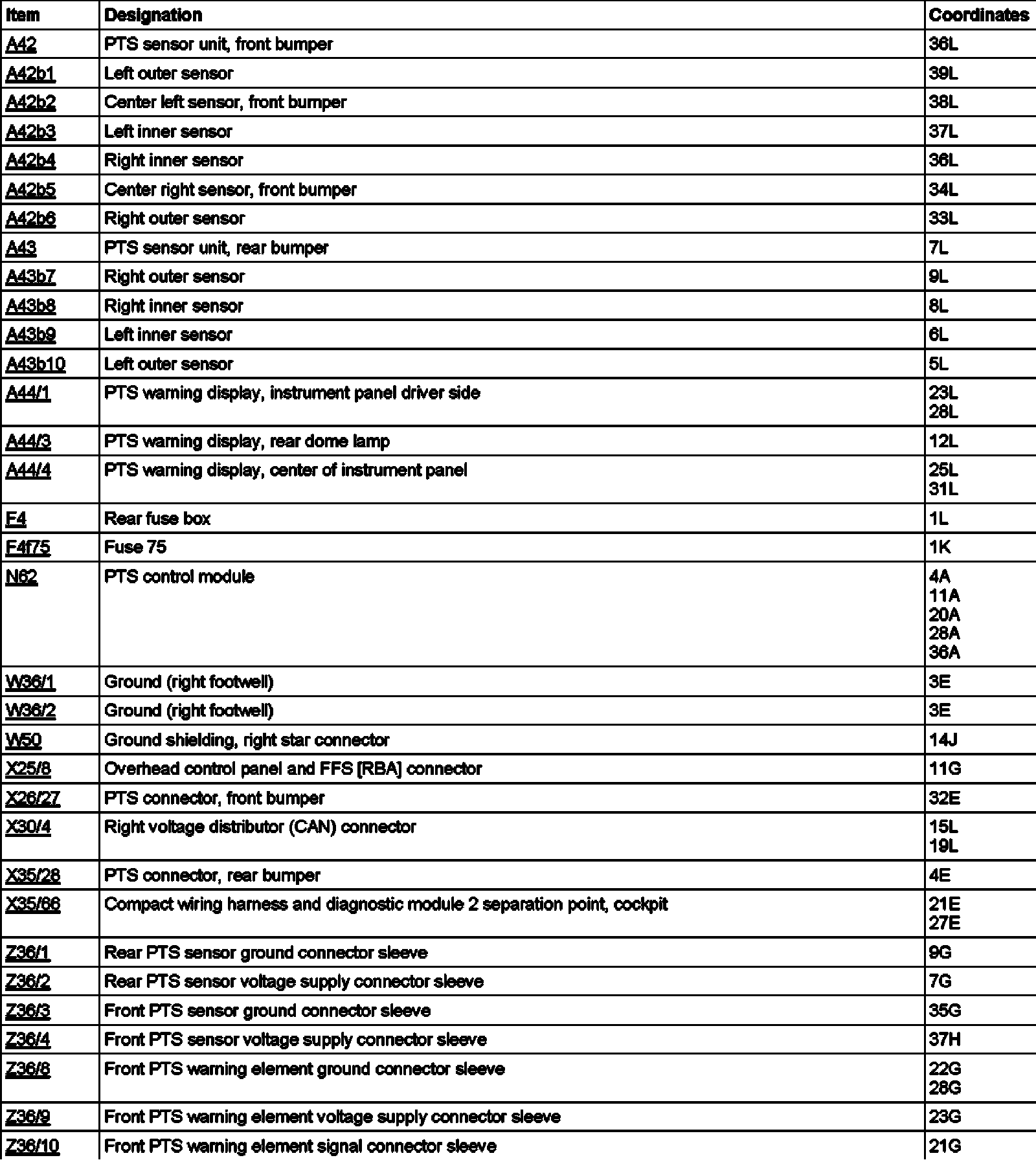

PE54.65-U-2101CA Parktronic System (PTS) Control Module
Model 215 with CODE (220) Parktronic system (PTS)
Control Module N62
