CL 55 AMG (215.374) V8-5.5L SC (113.991)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Electrical Diagrams
>>

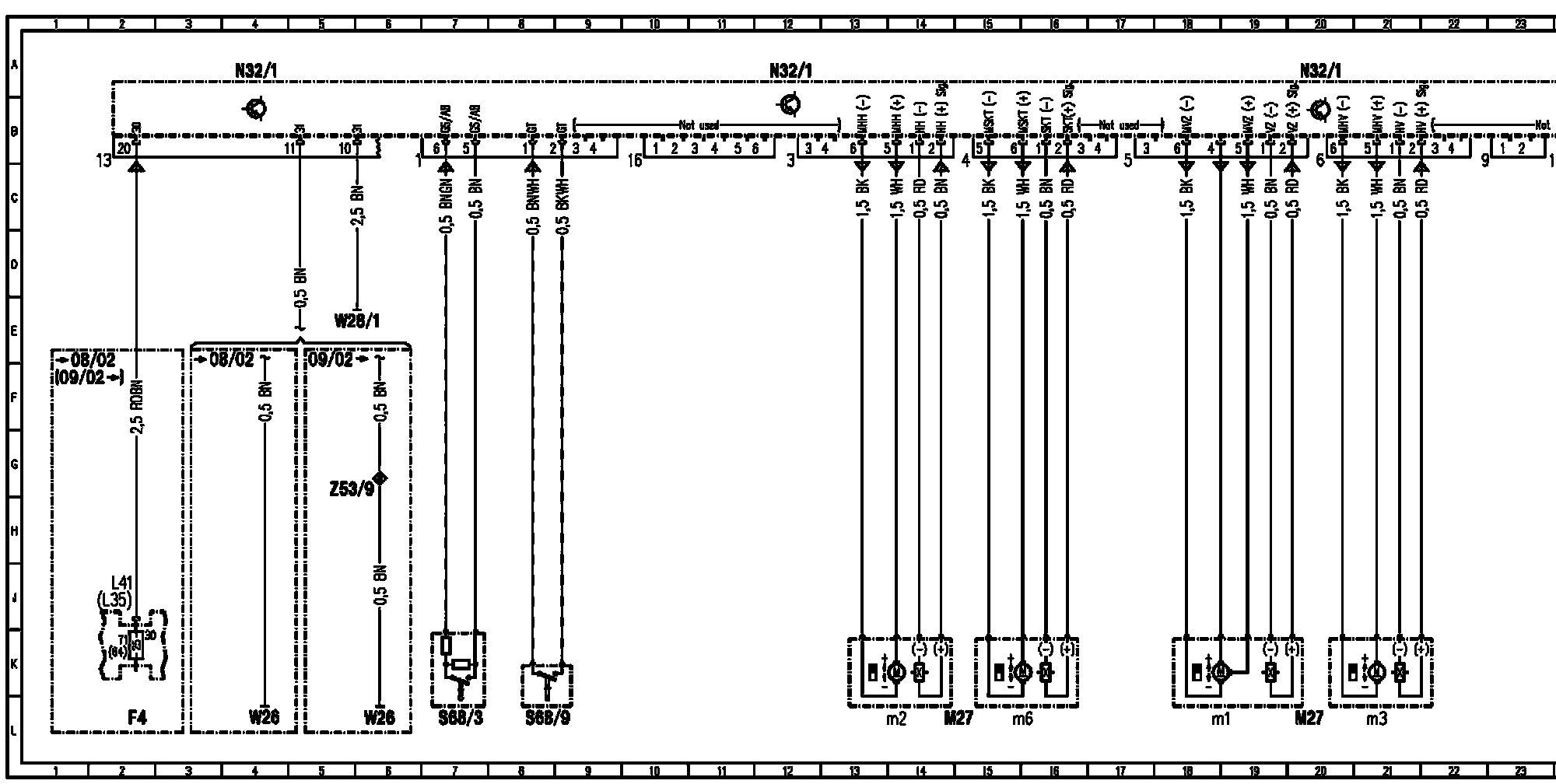

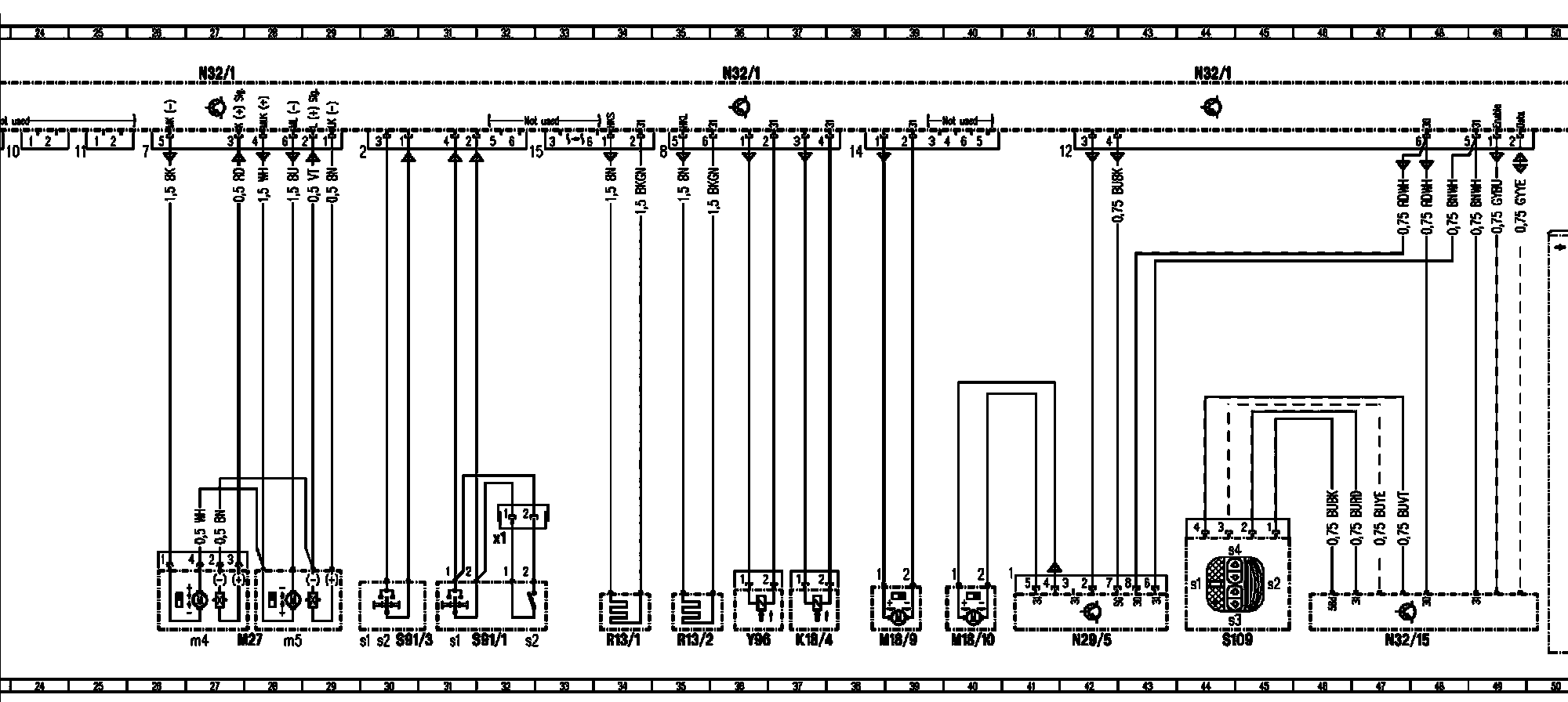

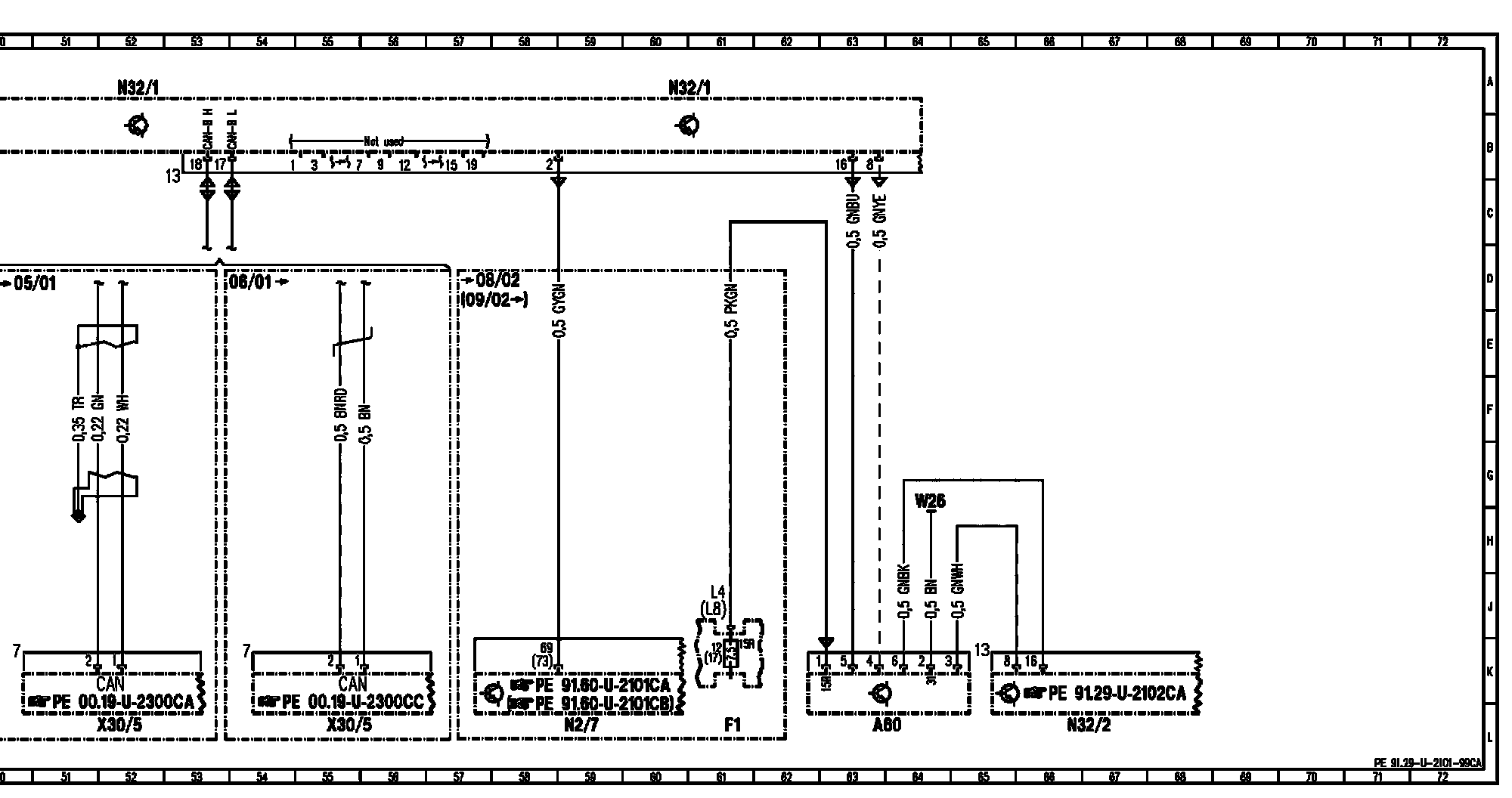

PE91.29-U-2101CA Left Front Seat Control Module
PE91.29-U-2101CA Left Front Seat Control Module
PE91.29-U-2101CA Left Front Seat Control Module
Control Module N32/1
