Trunk / Liftgate Shock / Support: Service and Repair



AR88.50-P-5115M Remove/Install Trunk Lid Telescopic Spring
- except CODE (881) Remote trunk closing (RTC)

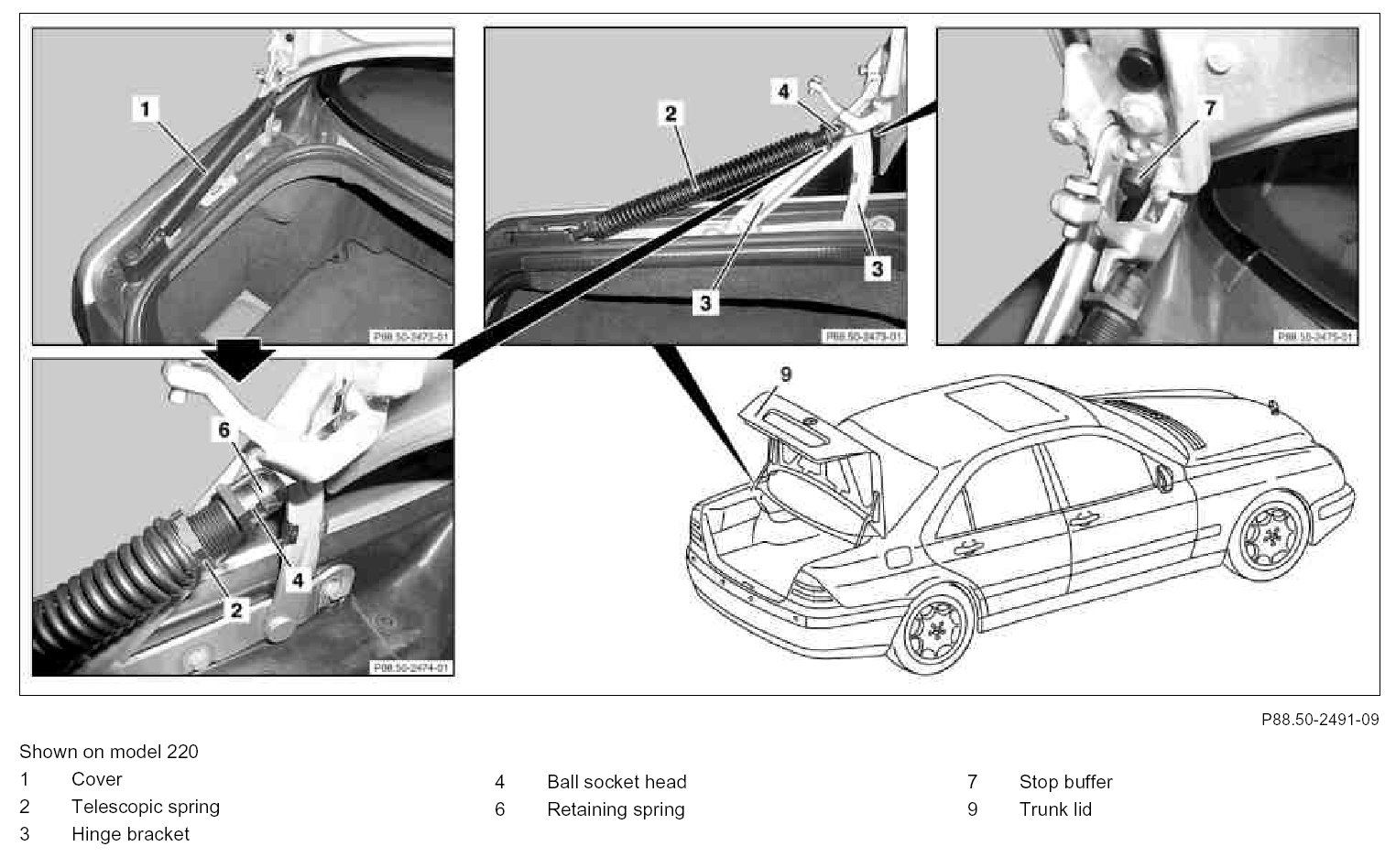

Component Identification:

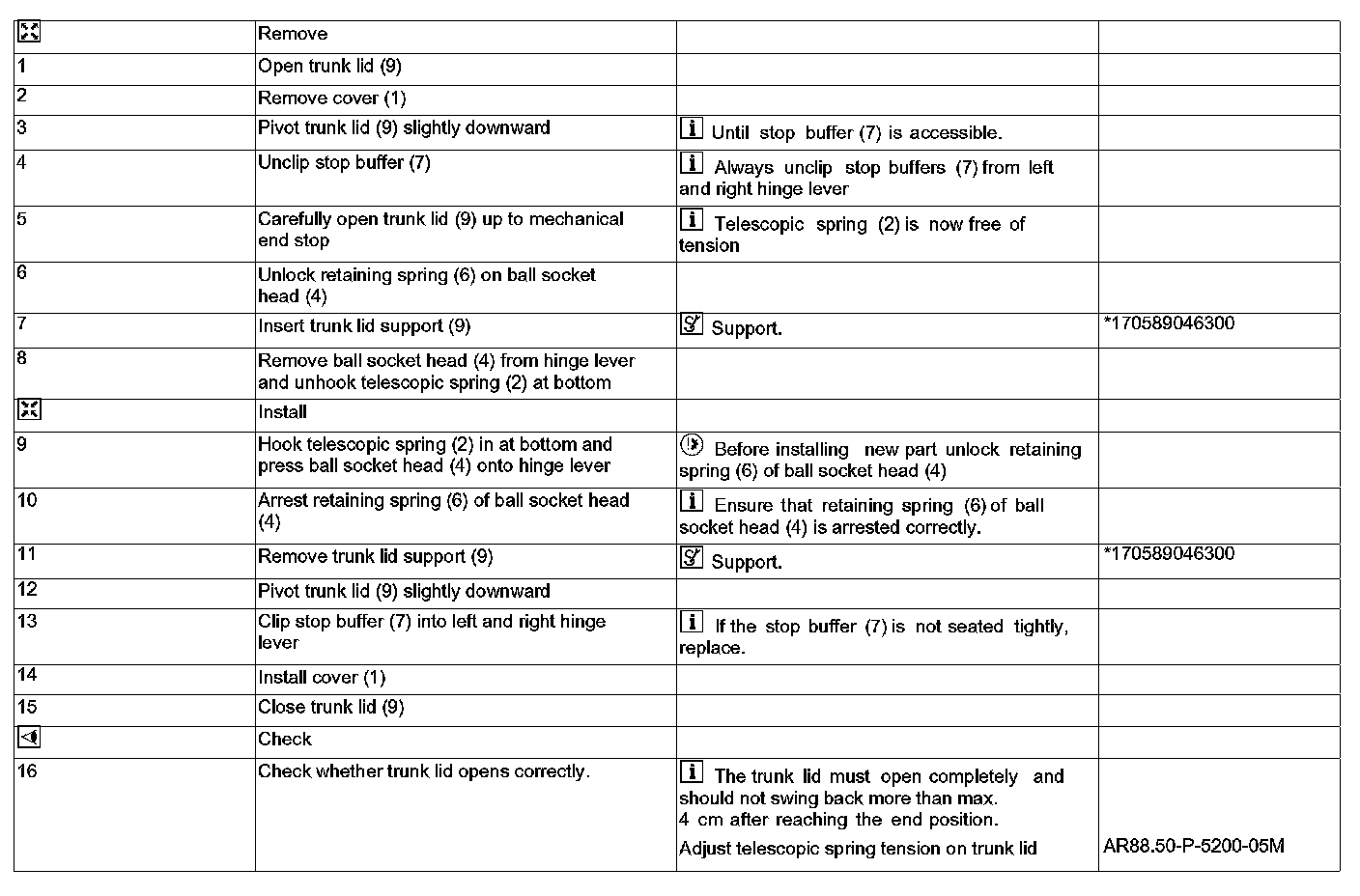

Steps 1 - 16:

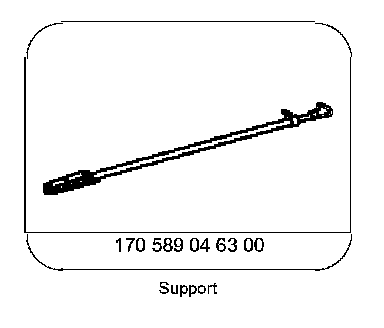

Special Tools:
