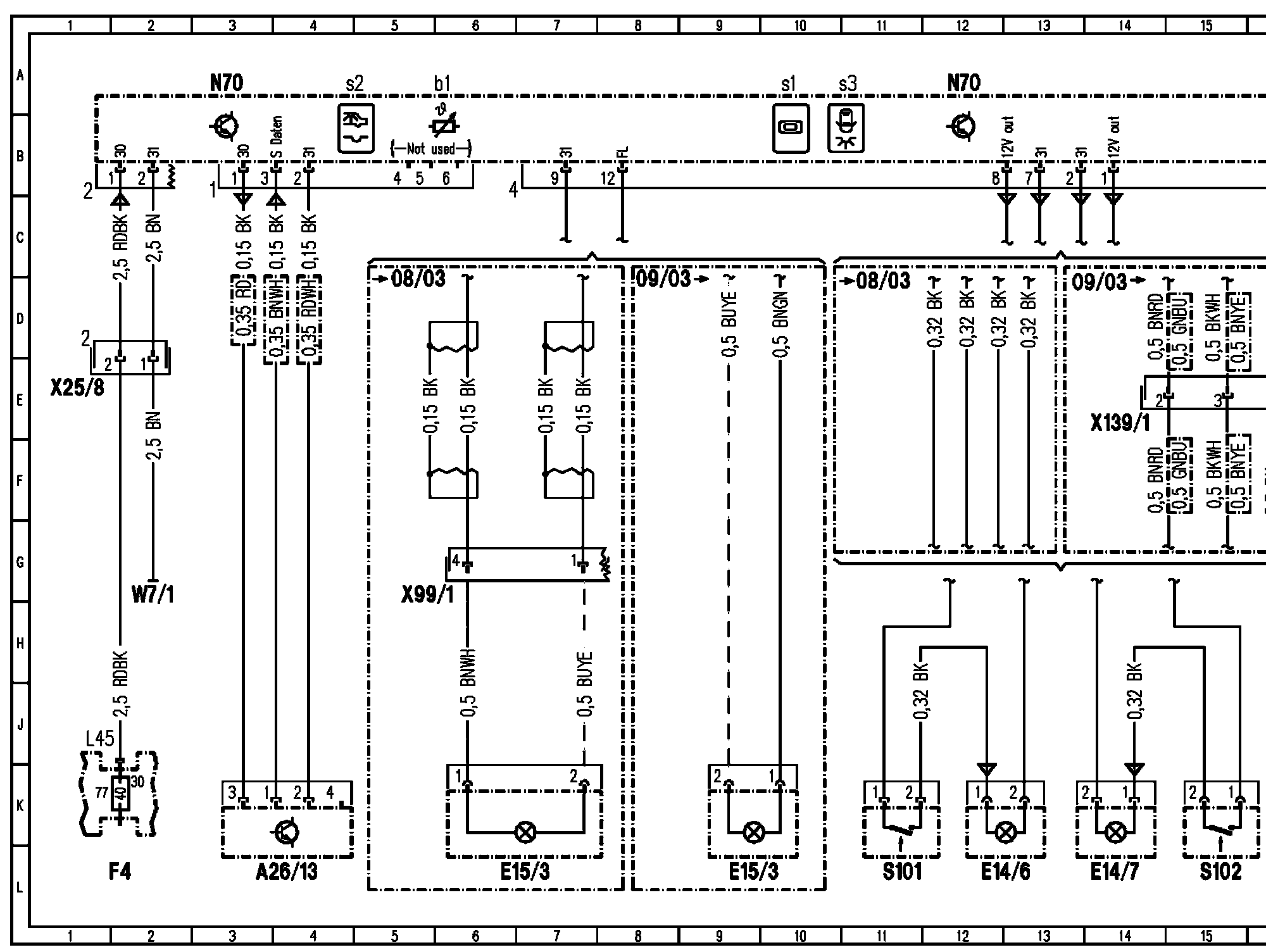

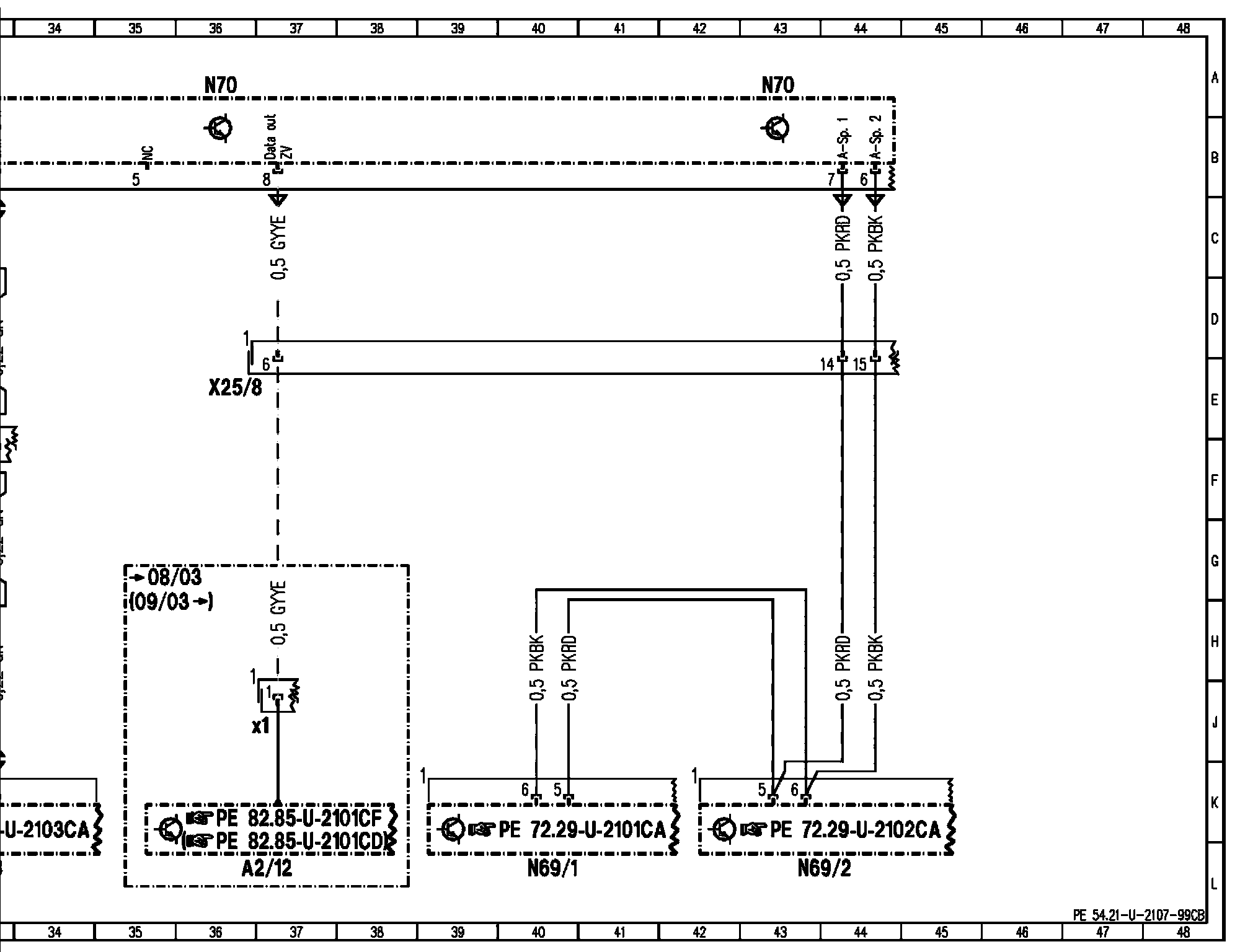

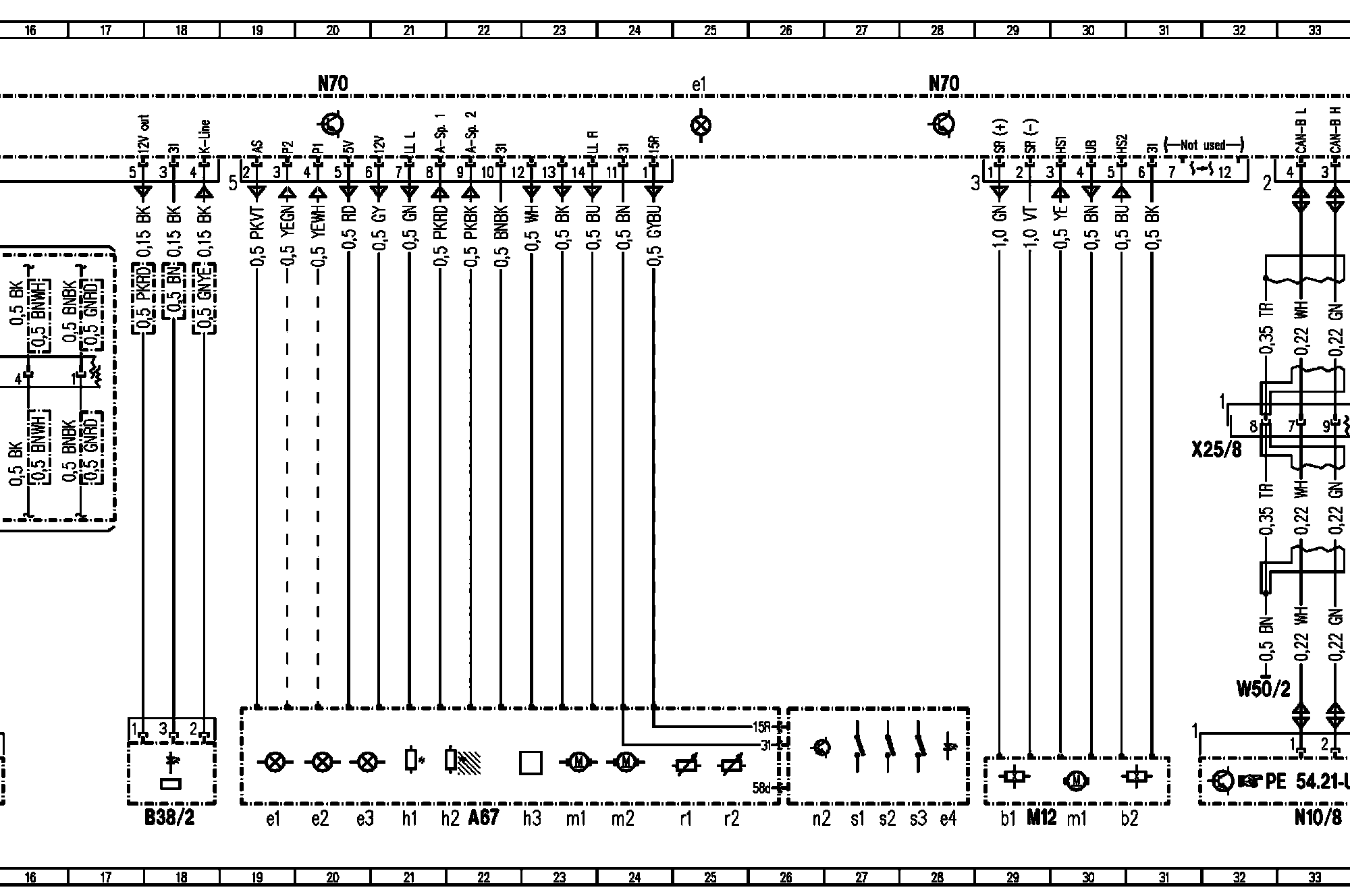

PE54.21-U-2107CB Overhead Control Panel (OCP) Control Module



PE54.21-U-2107CB Overhead Control Panel (OCP) Control Module
Model 215 as of 09/01/02

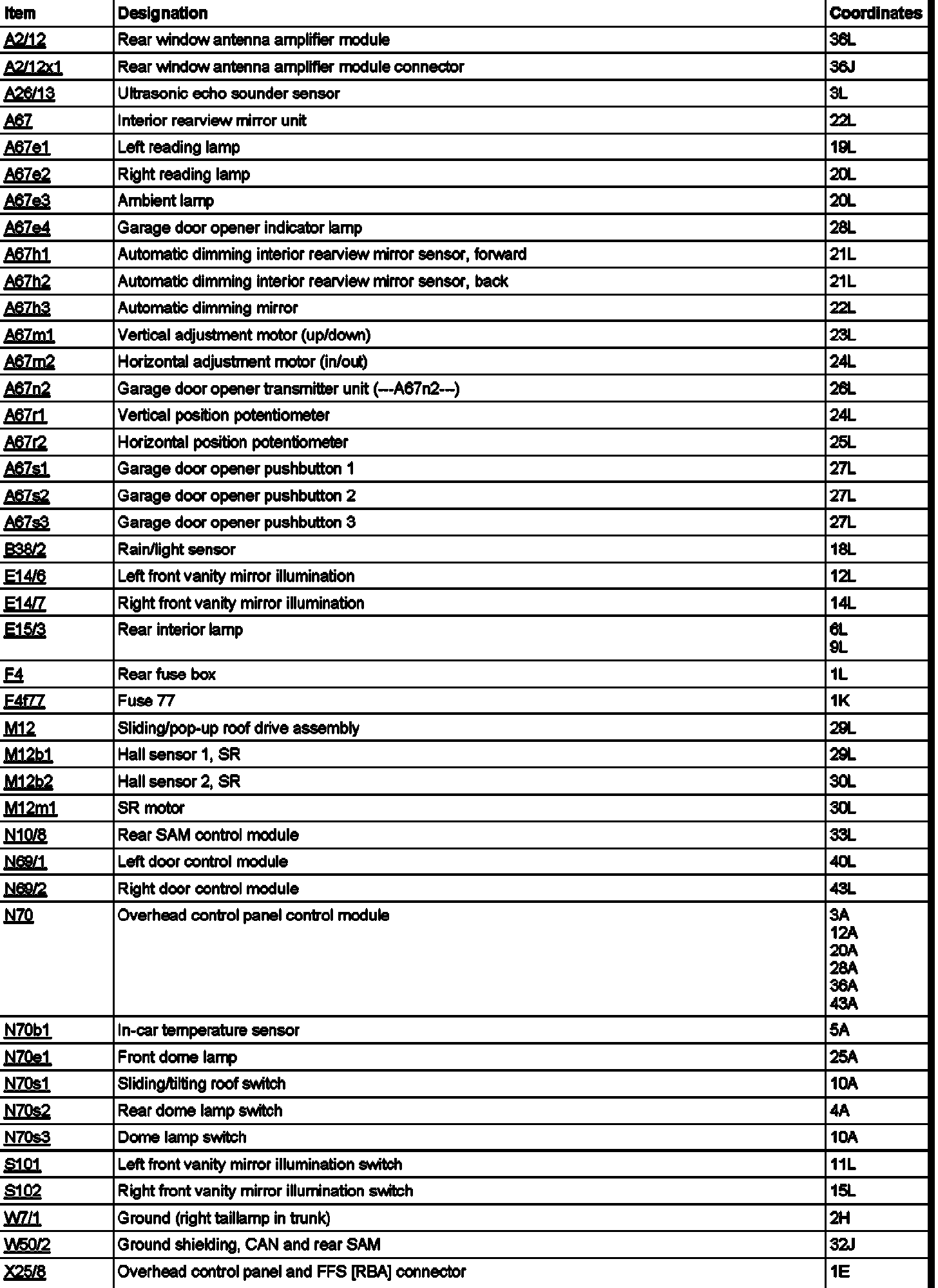

Control Module N70
